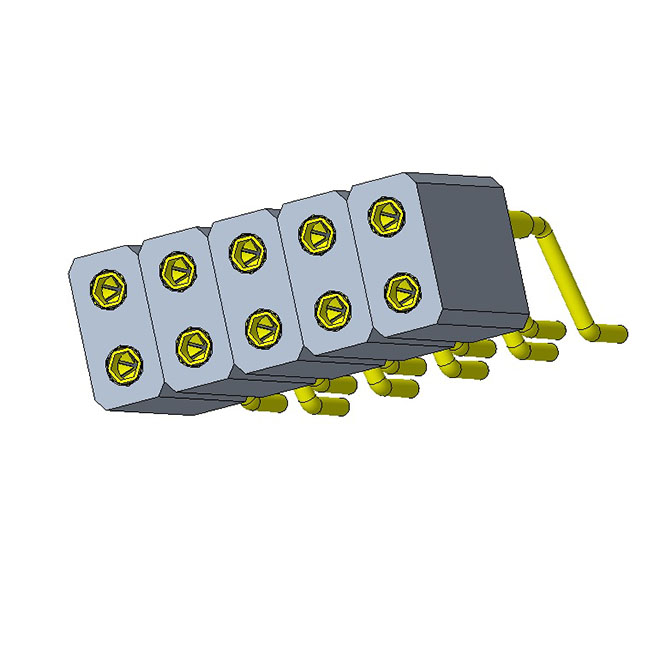

Product Center - pin header - female header - CMPHFXX1003 IC socket double row round pin 2x5 2.54 mm pitch SMT type
Product Details:
1.This is Customized one, double rows SMT type

2.This IC socket is right angle, SMT type
No. Items Description
1 Overview IC socket round pin 2x5 2.54 mm pitch SMT type
2 Circuits 10
3 Color Black
4 Durability 500
5 Gender ic socket
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing PPS
9 flaming class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 2.54 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 with clip yes
18 Clip is gold plating yes
19 Current Rating 3.0 A
20 Contact resistance 100 mΩ max.
21 Insulation Resistance 1000 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 500 pieces
26 how many per carton 5000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 Customized welcome
