Product Center - USB - USB TYPE C waterproof - CMWUC661003 Waterproof usb type c 24 PIN mid-mount hybrid type
Product Details：
1.This connector is usb type c 24 pin waterproof type,IP x7
2.Three rows, one row is SMT,other two rows are Through Hole

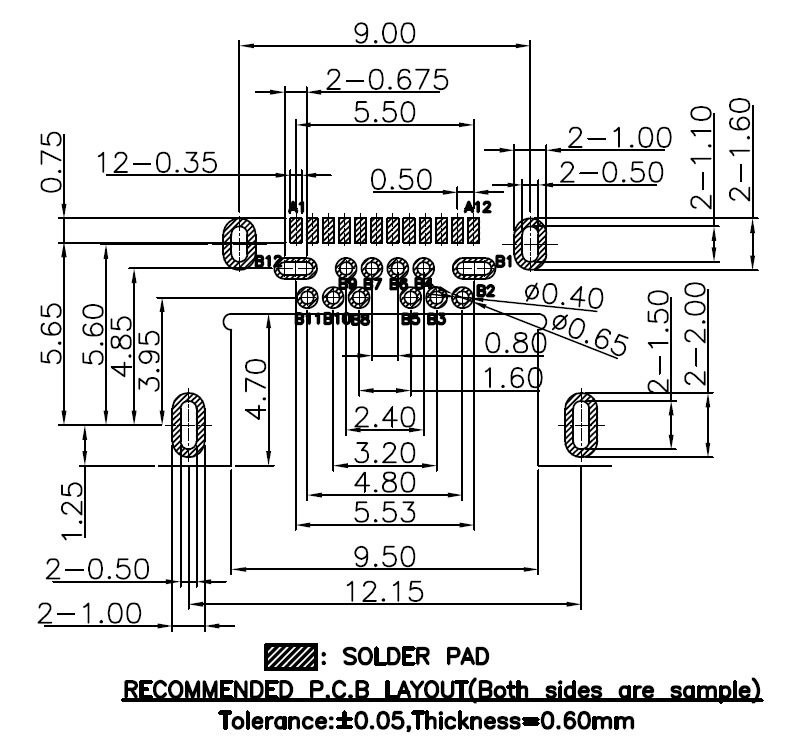

3.Its PCB layout is as belw:

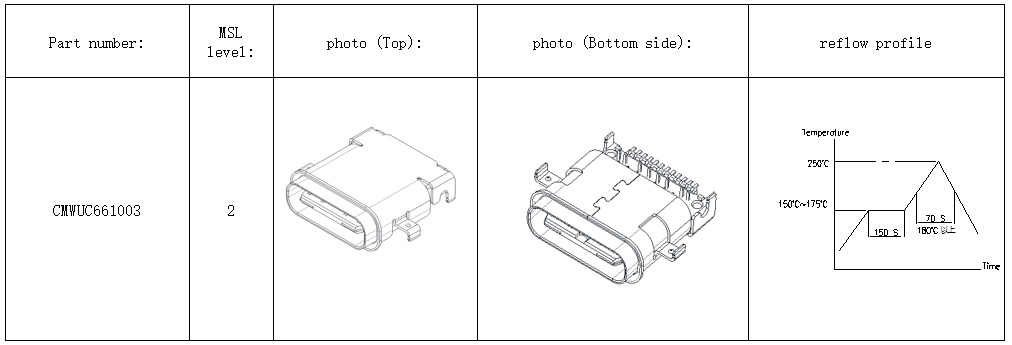

4.Its MSL level is 2,as below


5.Other parameters is as below:
No. Items Description
1 Overview USB shielded I/O Receptacle,Type C 24 pin,Right Angle, mid-Mount, hybrid type,Waterproof IP x7, 24 circuits, Gold plating
2 Circuits 24
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type mid-mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.50 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Flatness 0.10 mm max.
17 Waterproof / Dust proof yes
18 Waterproof / Dust proof Type IP x7
19 Current Rating 1.25 A
20 Contact resistance 40 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 250 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 700 Pieces
26 how many per carton 7000 Pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 Other name USBC-0019IPX7-00,UTC-111728
