Product Center - USB - USB TYPE C waterproof - CMWUC661008 USB type c 6pin waterproof IPX7 connector mid-mount 1.78 mm
Product Details：

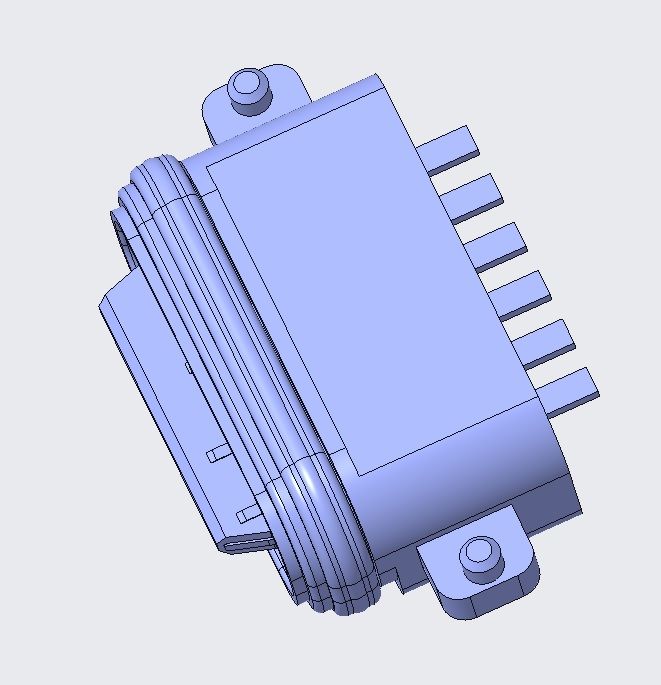

1. Its 3D is as below:


2. Parameters:
No. Items Description
1 Overview USB type c 6pin waterproof  IPX7 Mid mount 1.78 mm
2 Circuits 6
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type mid mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 1.20 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 Waterproof / Dust proof yes
18 Waterproof / Dust proof Type IP x7
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1000 pcs
26 how many per carton 10000 pcs
27 Easy for pick and place machine yes
28 CAD yes
29 3D Model yes
30 RoHS yes
31 Others quality is first !

3.Drawing is as below:
