Product Center - USB - USB TYPE C waterproof - 20240625 waterproof IP68 USB Type c receptacle 24 positions compatible JAE DX07WH24JA3
Product Details：
1.This CMWUC661034 can compatible with DX07WH24JA3, Same layout ,same function ,different appearance;
2.All dimensions can meet USB Type-C Cable and Connector Specification;
3.Capacity is 5000pcs per day;
4.Other parameters are as below:
No. Items Description
1 Overview 20240625 waterproof IP68 USB Type c receptacle 24 positions compatible  JAE DX07WH24JA3
2 Circuits 24
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.50 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Flatness 0.10 mm max.
17 same layout with DX07WH24JA3 yes
18 same function with DX07WH24JA3 yes
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 800 pieces
26 how many per carton 8000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with DX07WH24JA3
32 free samples can provide free samples

5.Its drawing is as below:
The drawing is too big ,please help to contact me by connmole@126.com, then, will send the drawing including 2D CAD 3D step to you

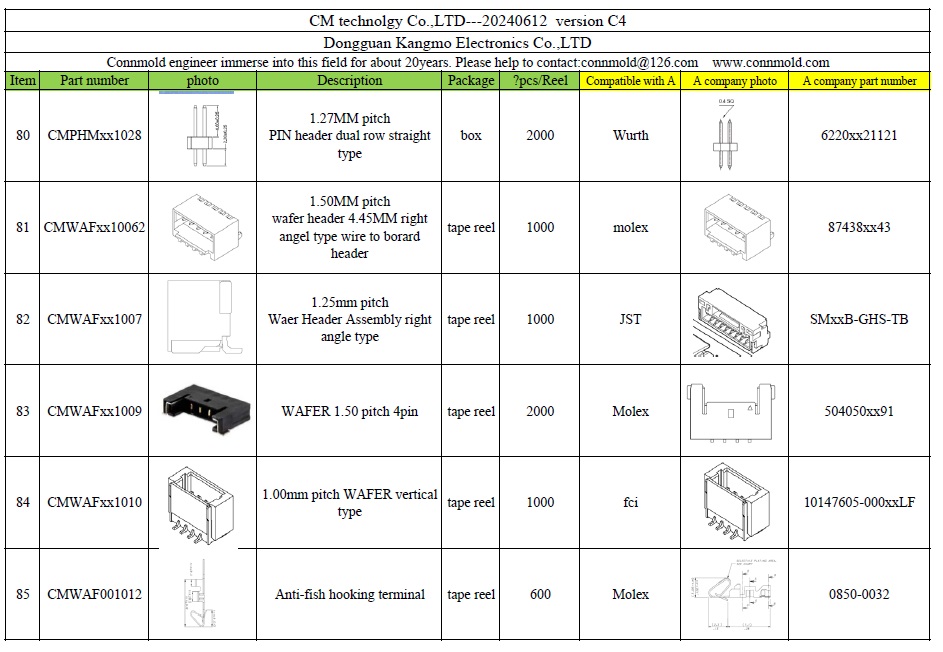

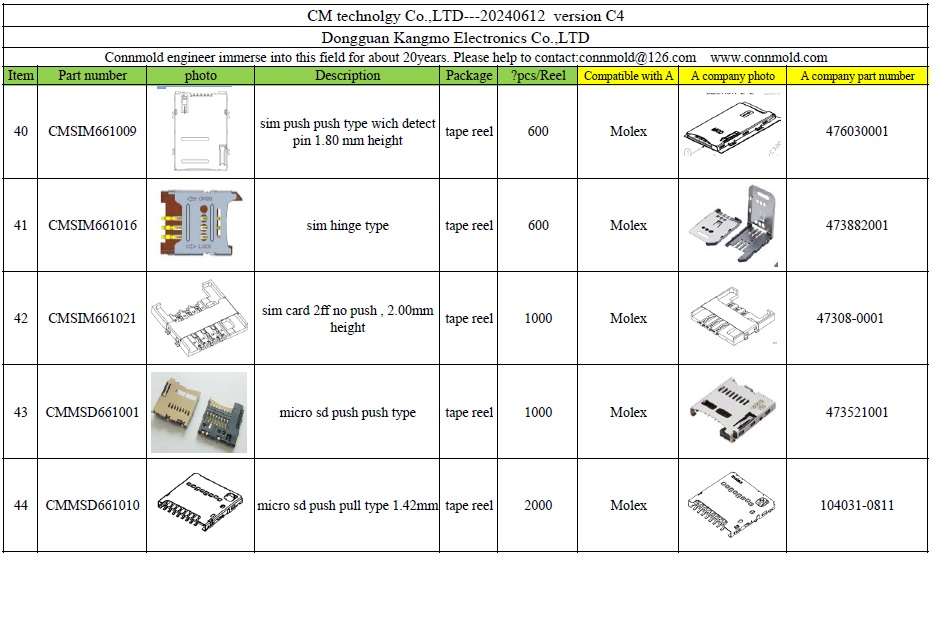

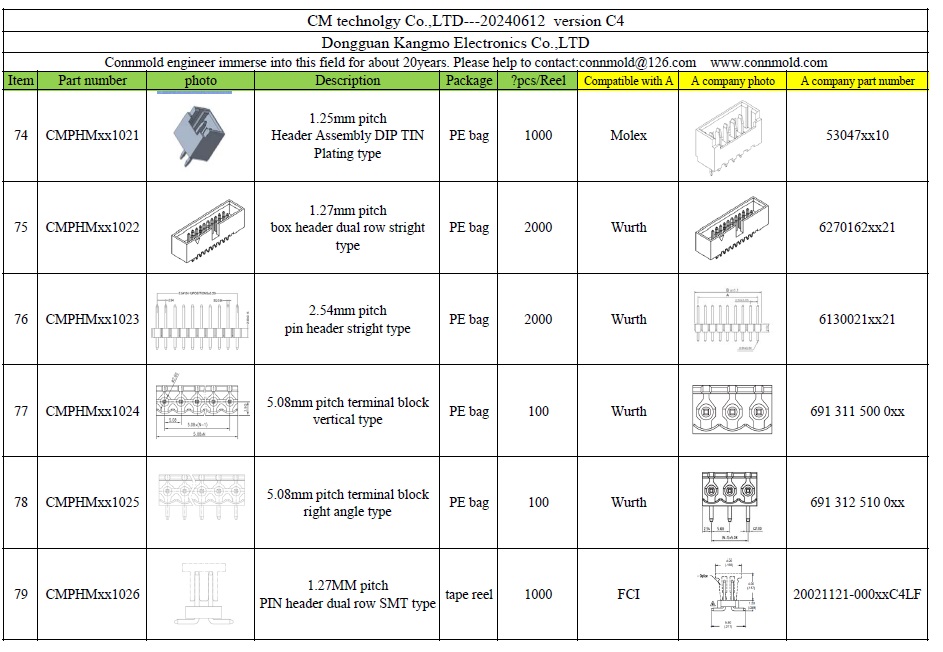

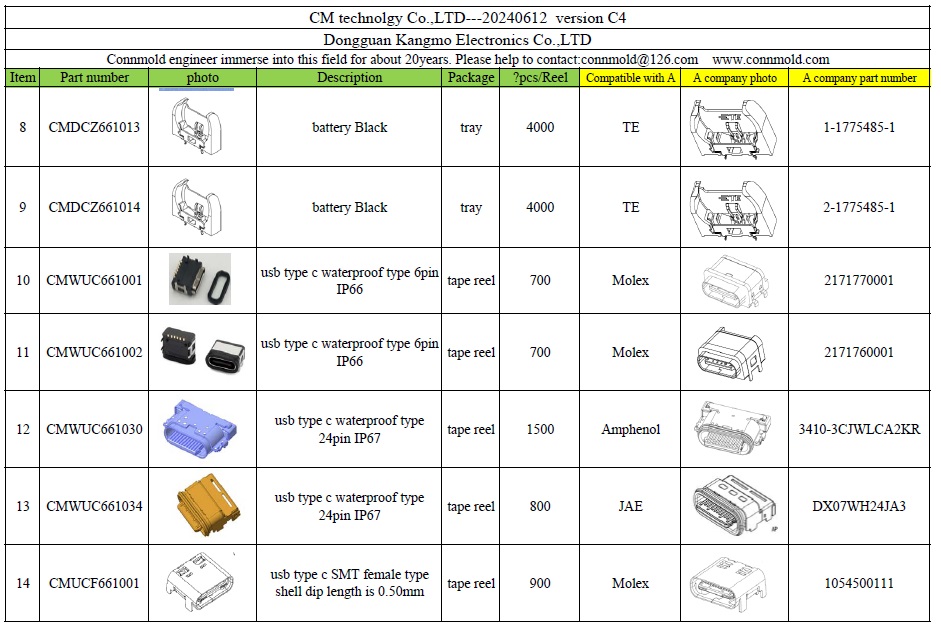

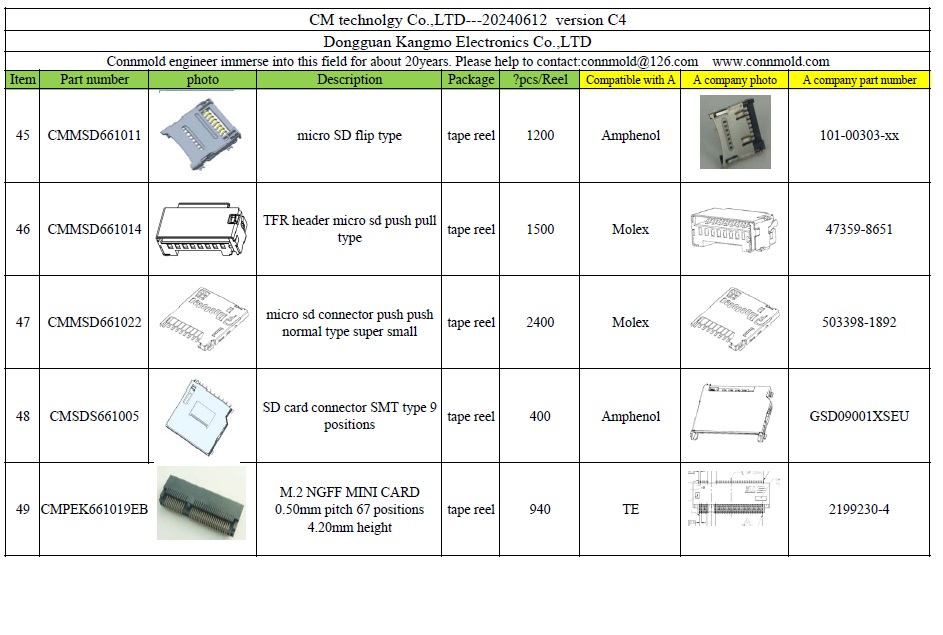

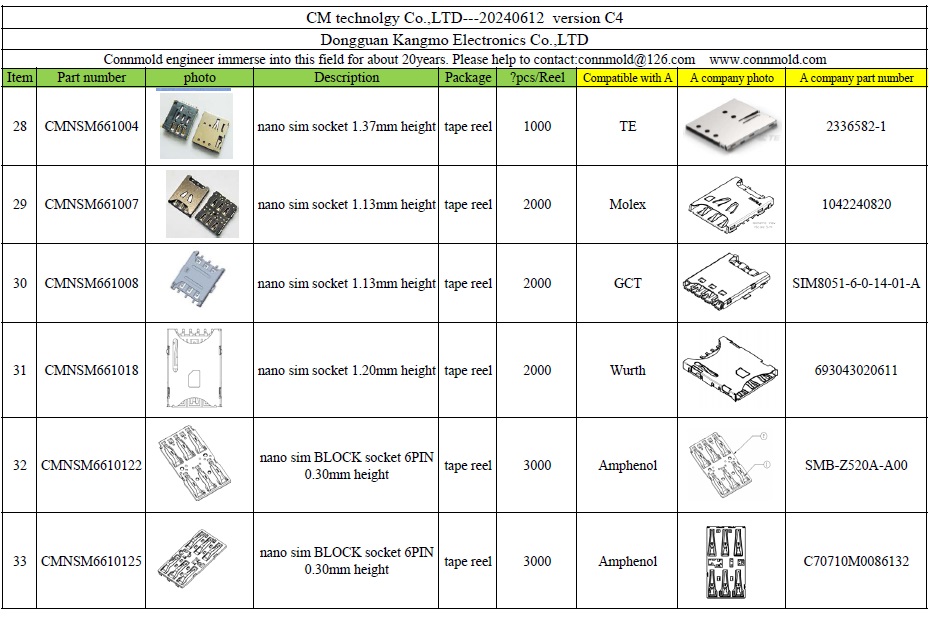

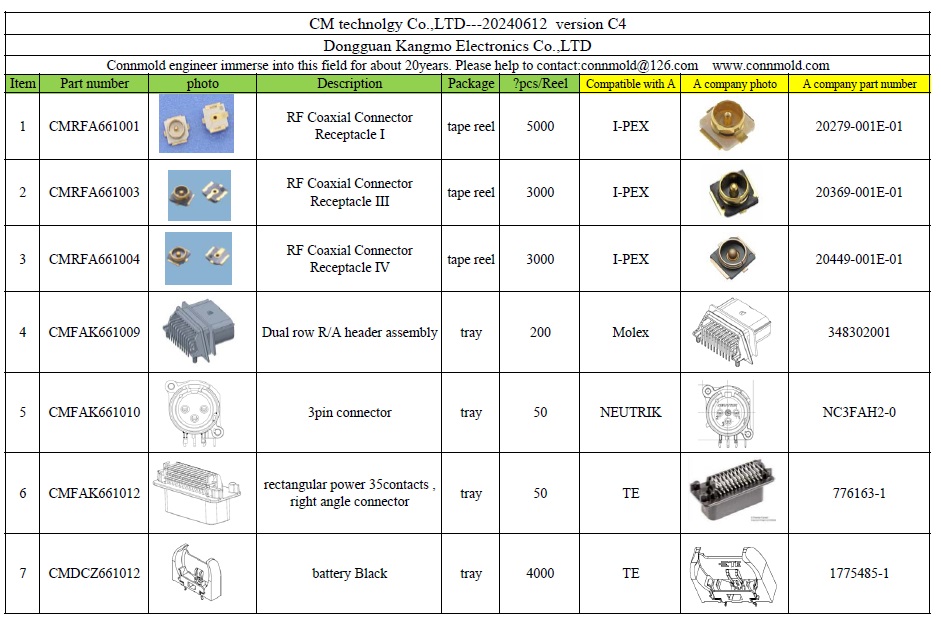

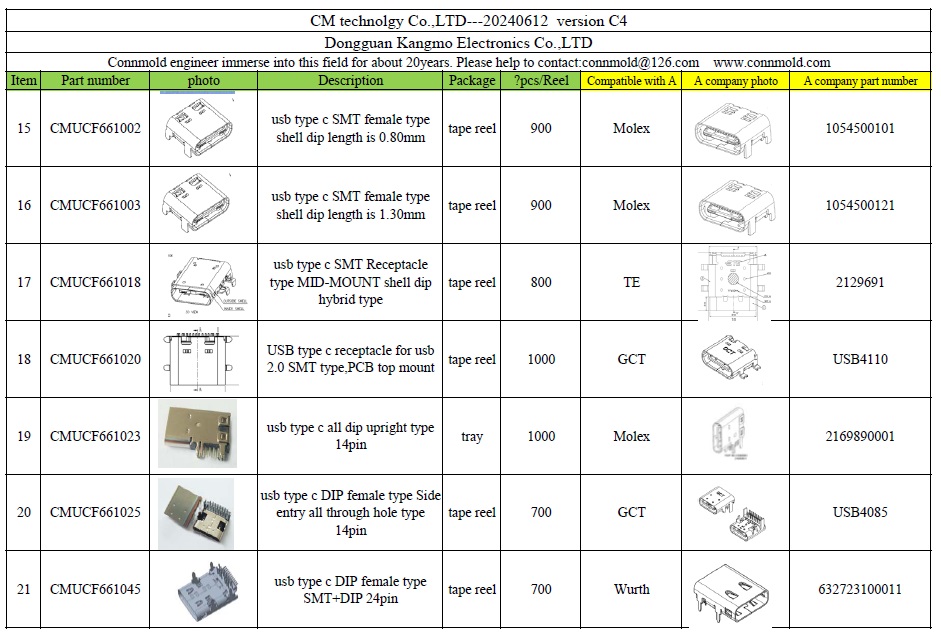

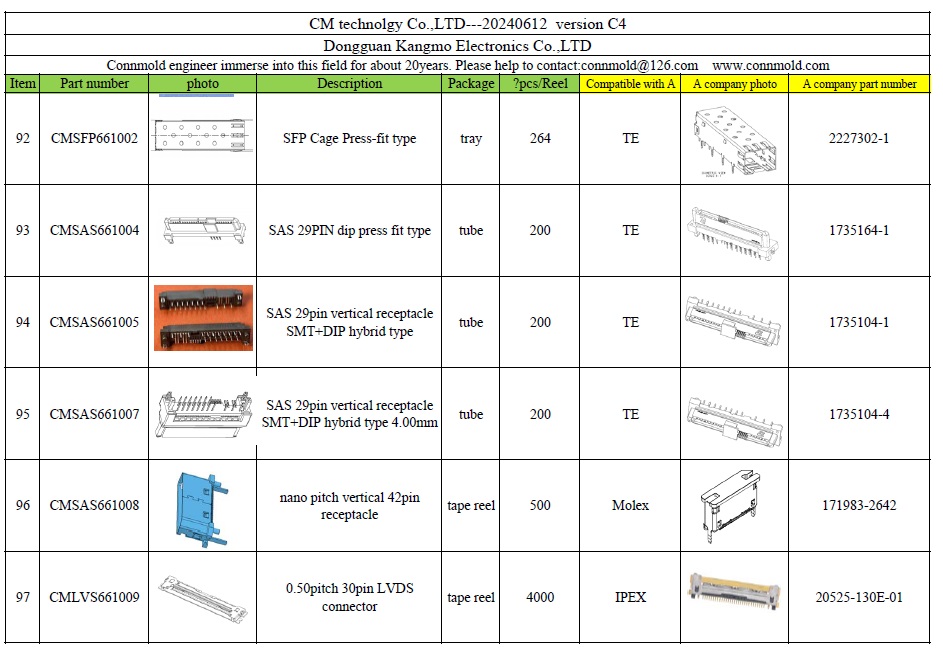

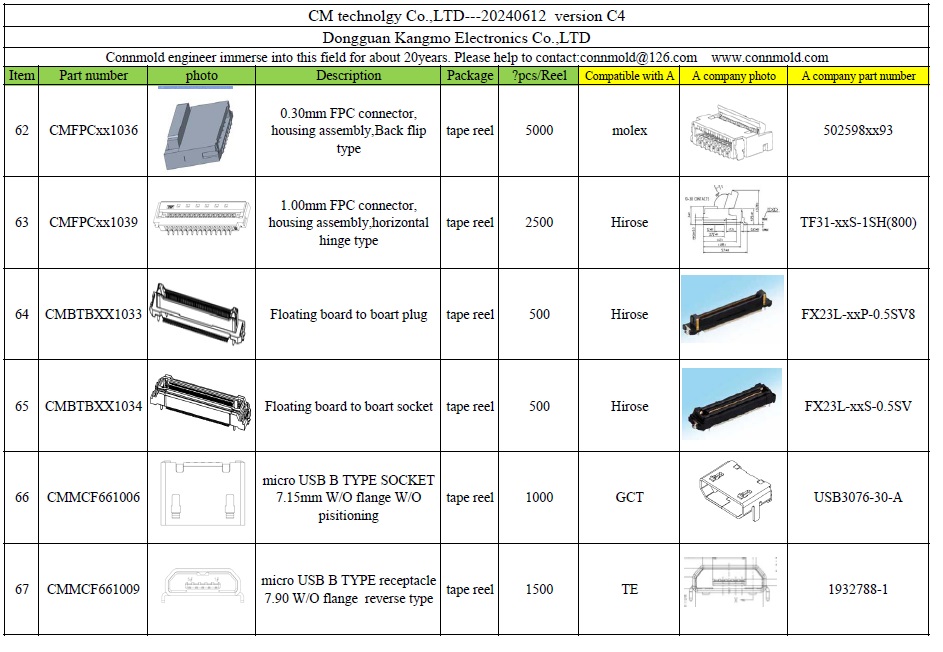

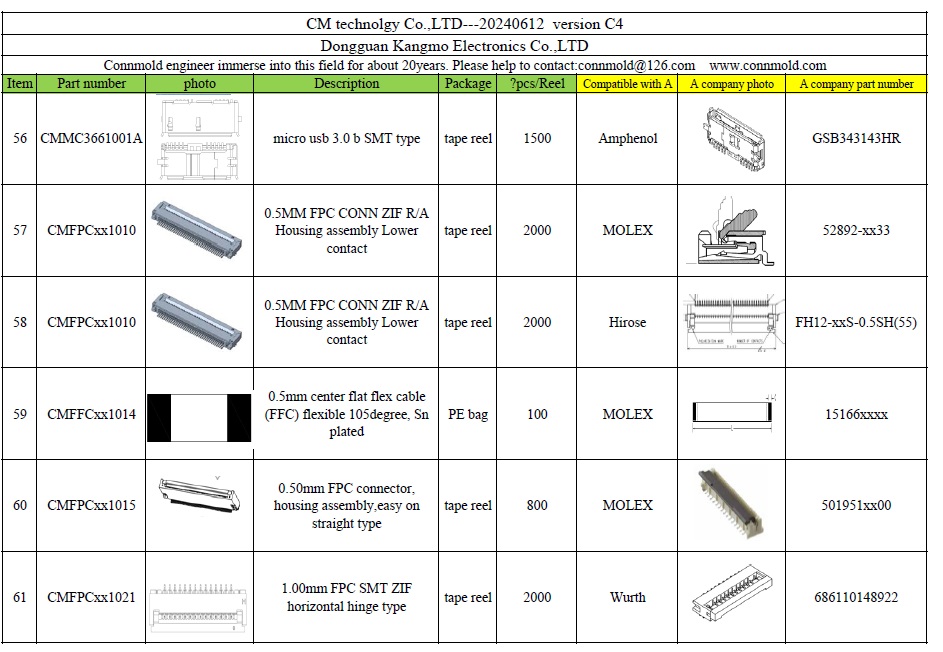

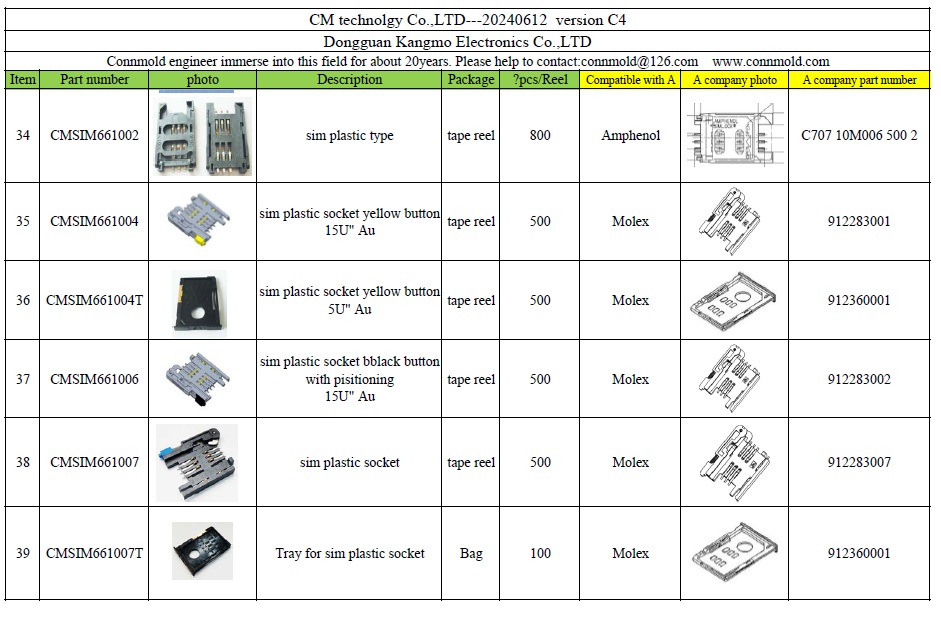

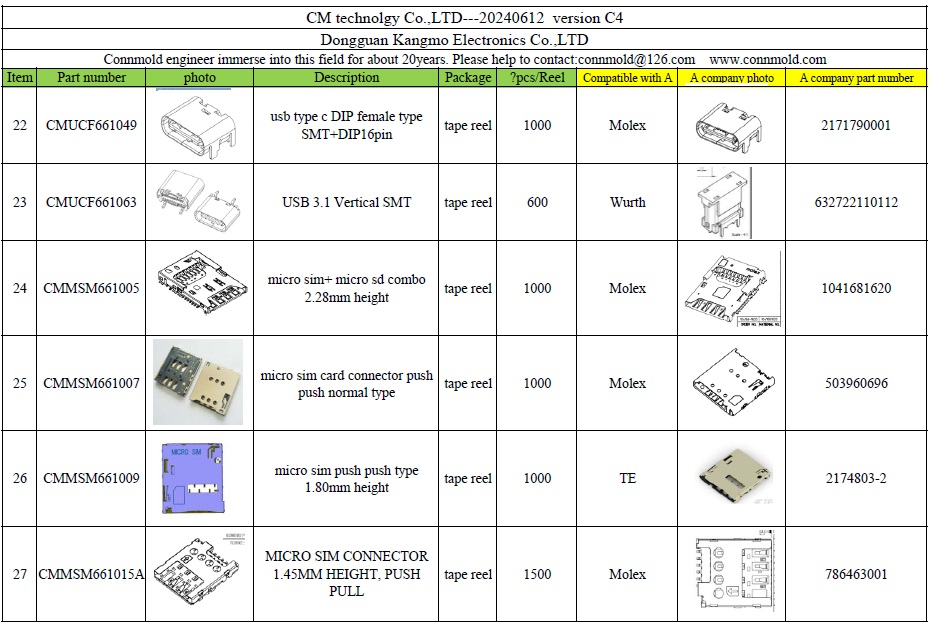

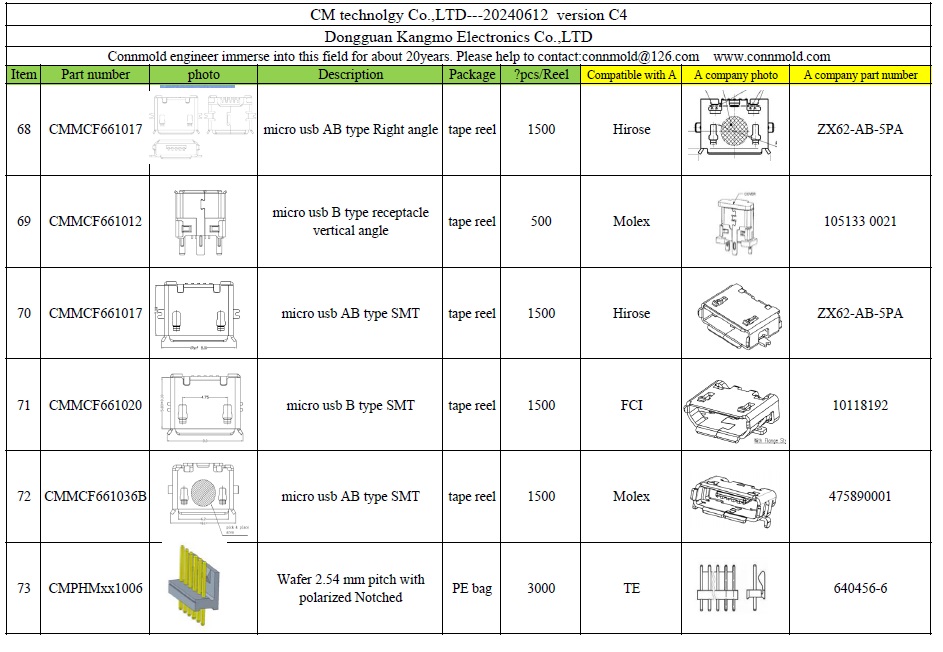

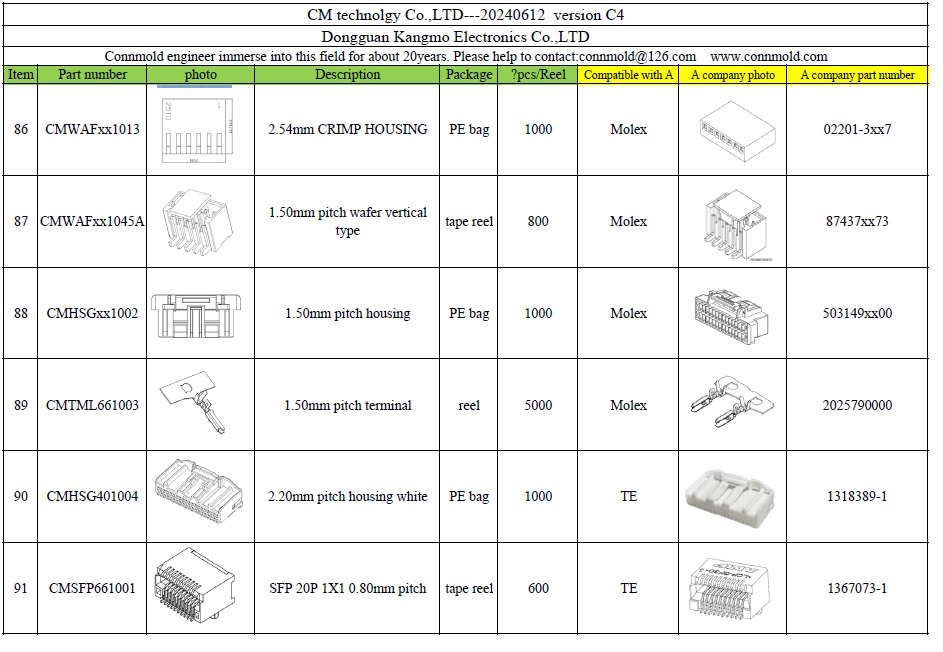

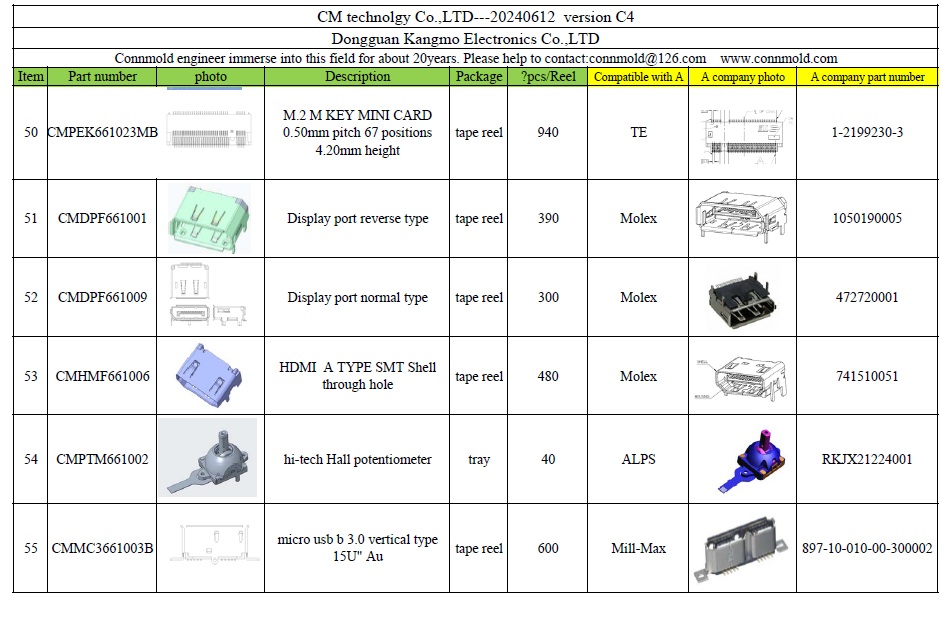

6.Our other product which you may like:
