2.Tape reel package, 800PCS/Reel

3.Other parameters are as below:

No.	Items	Description
1	Overview	CMUCF661018  USB TYPE C Receptacle 24 positions middle mount type ,total length 9.84mm , Similar to Tyco  2129691
2	Circuits	24
3	Color	Black
4	Durability	10000
5	Gender	Female
6	Orientation	right angle
7	Material-Metal	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	flaming class	94 V-0
10	Mount type	middle mount
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 0.50 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	meet USB Type-C Cable and Connector Specification	yes
18	100% check function	yes
19	Current Rating	3.00 A
20	Contact resistance	30 mΩ max.
21	Insulation Resistance	100 MΩ min.
22	Dielectric withstanding voltage	100 V AC
23	Package	Embossed Tape and Reel
24	Reel dimension	13 inch
25	how many per reel	800 pieces
26	how many per carton	8000 pieces
27	Easy for pick and place machine	yes
28	CAD	yes
29	3-D Model	yes
30	RoHS	yes
31	Quality is first	yes
32	free samples	can provide free samples
33	similar to	Similar to Tyco  2129691

4.Its drawing is as below:

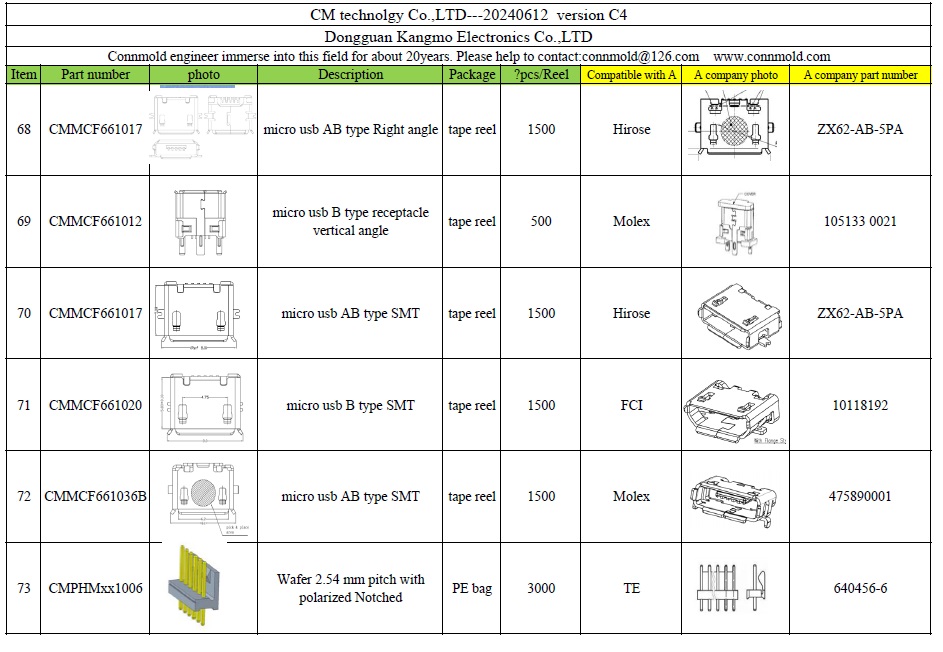

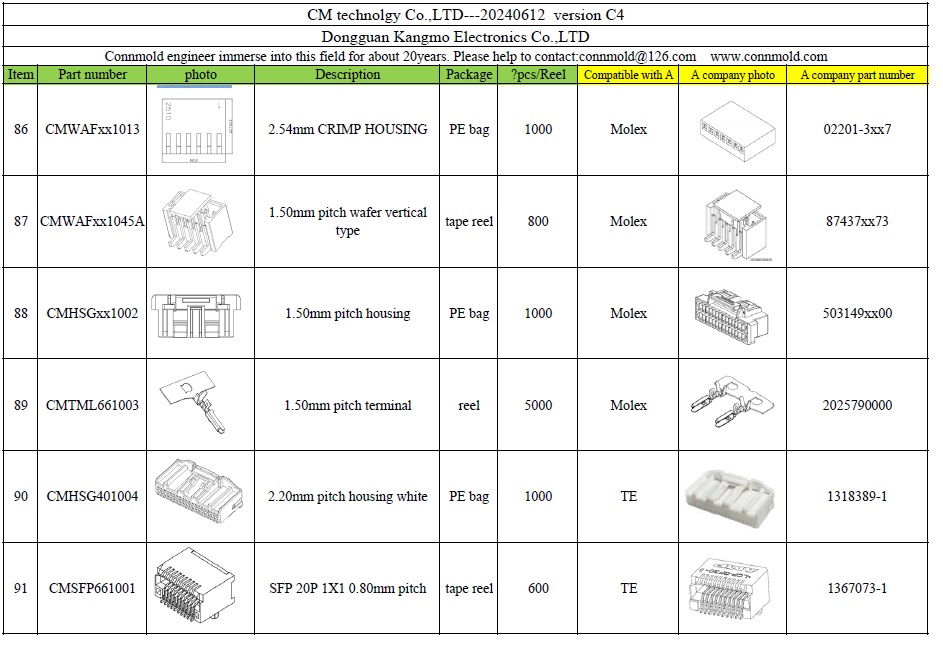

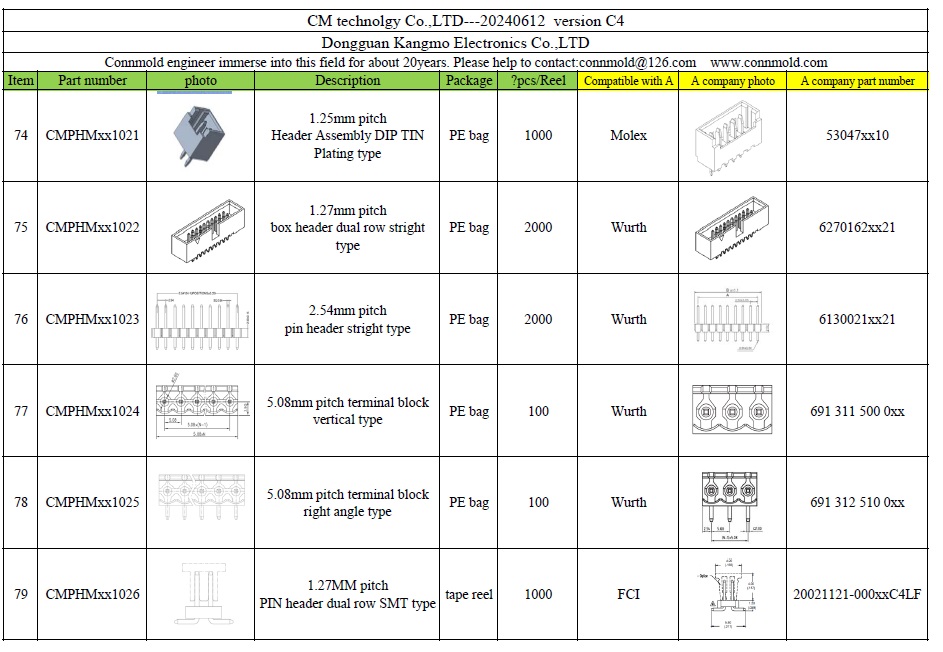

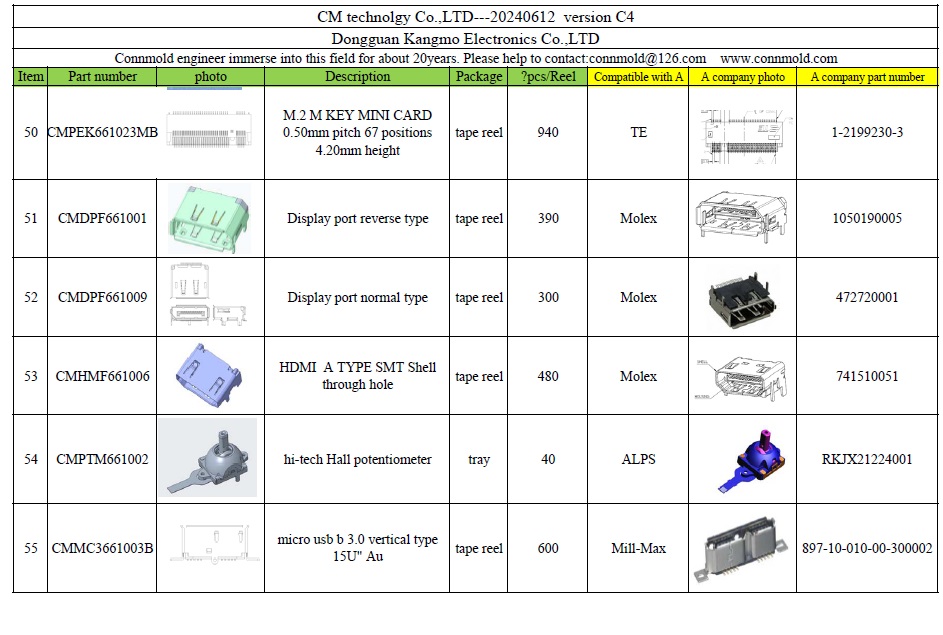

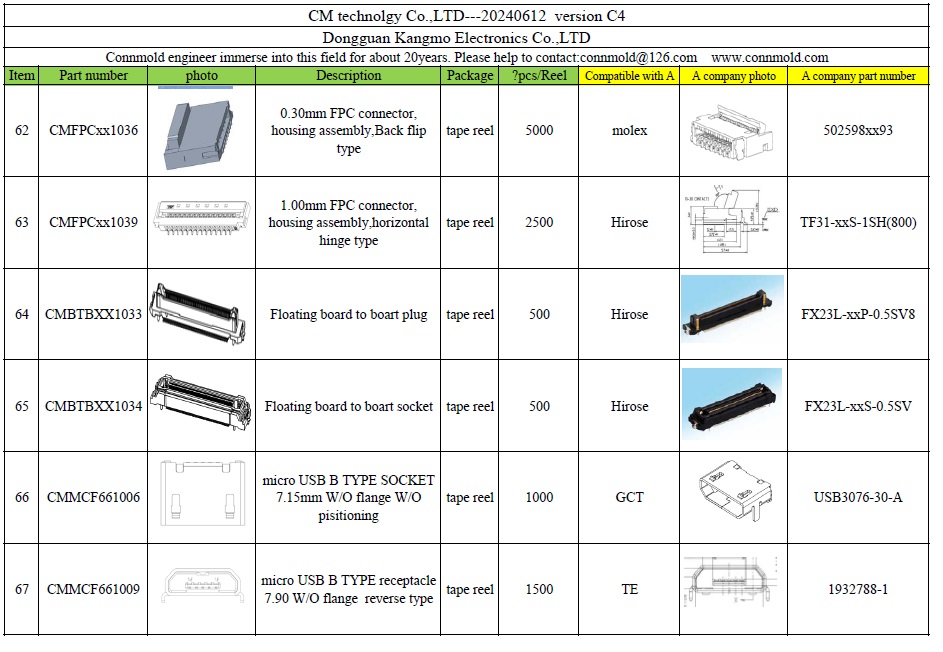

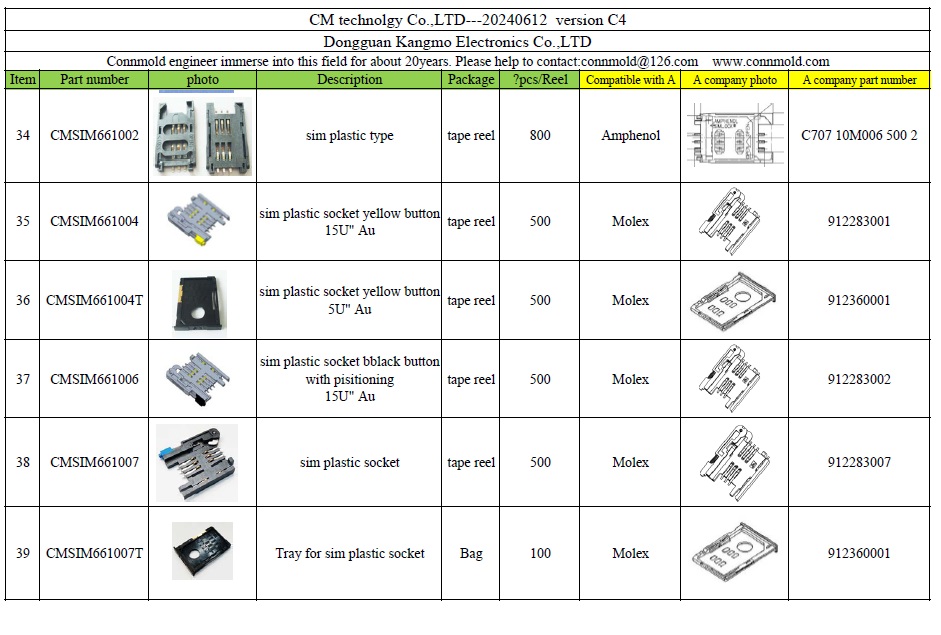

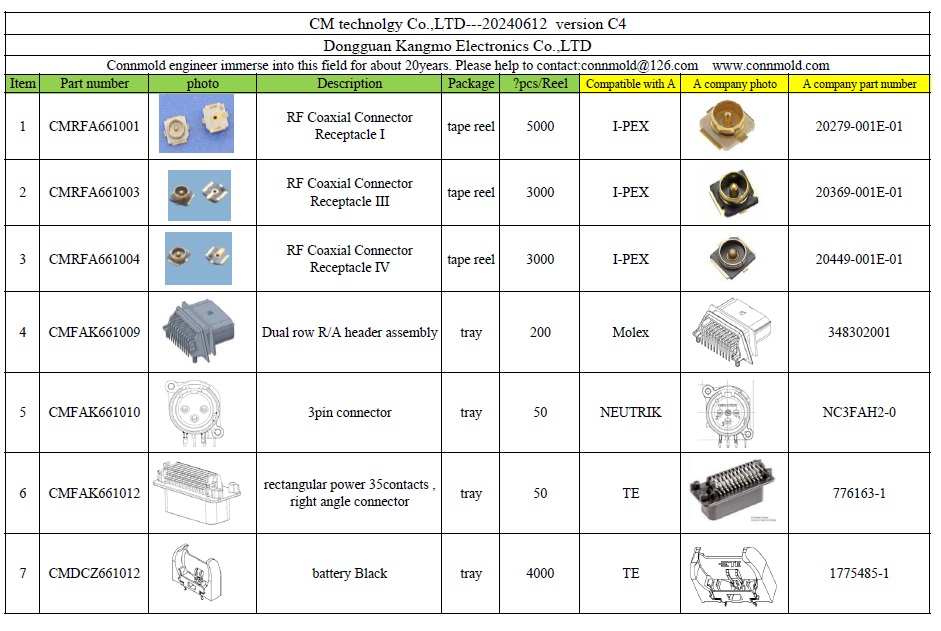

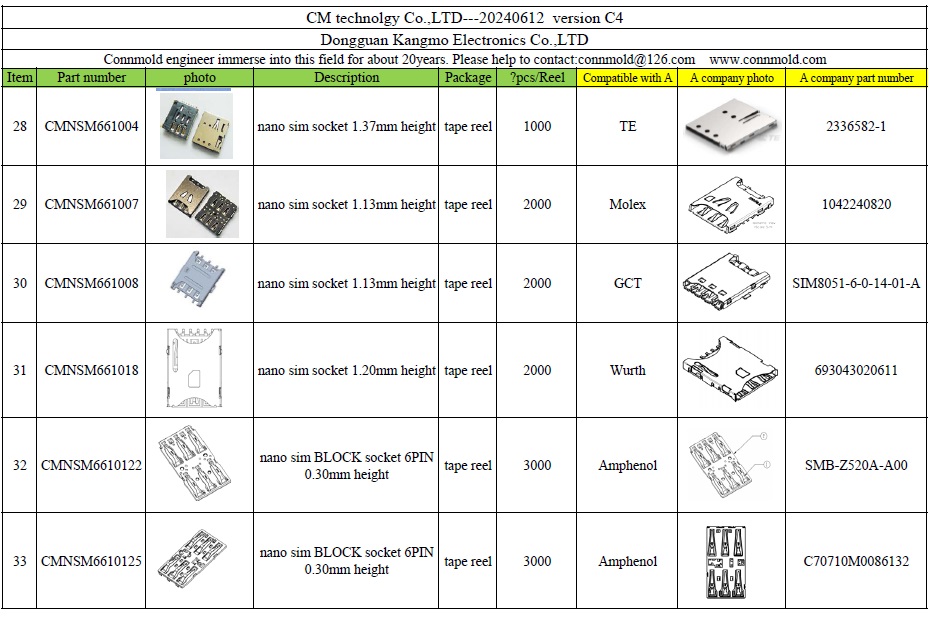

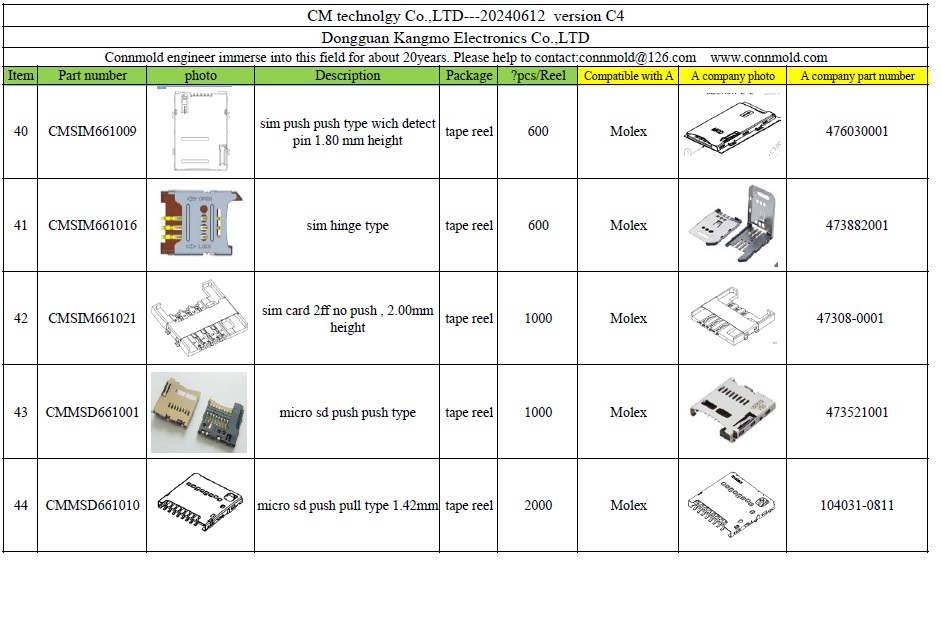

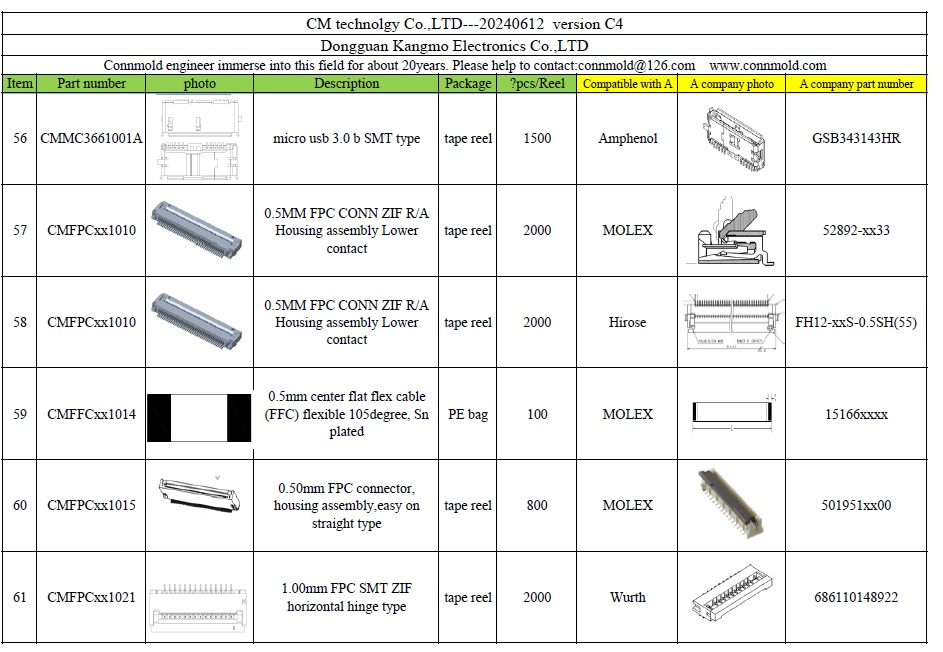

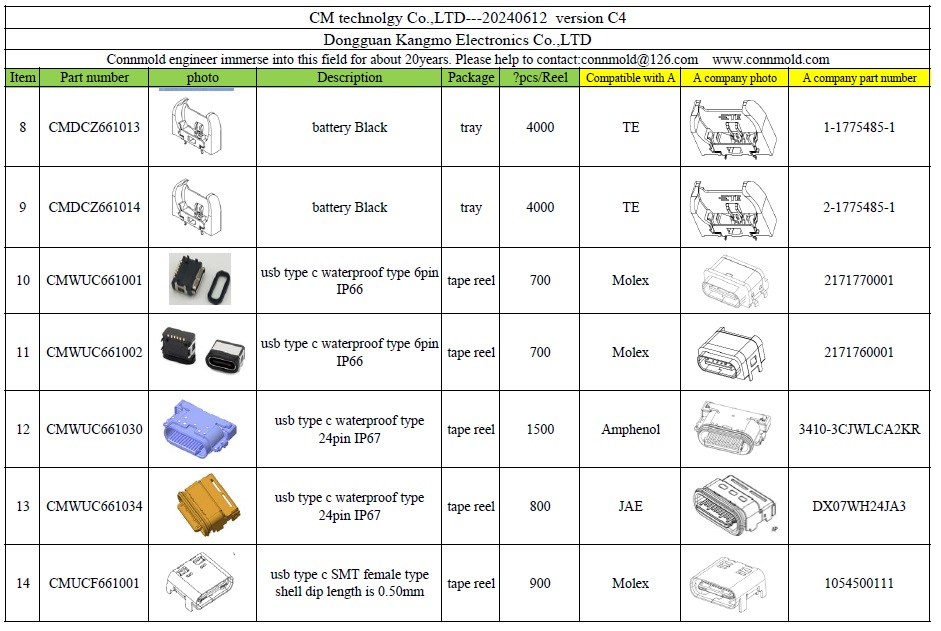

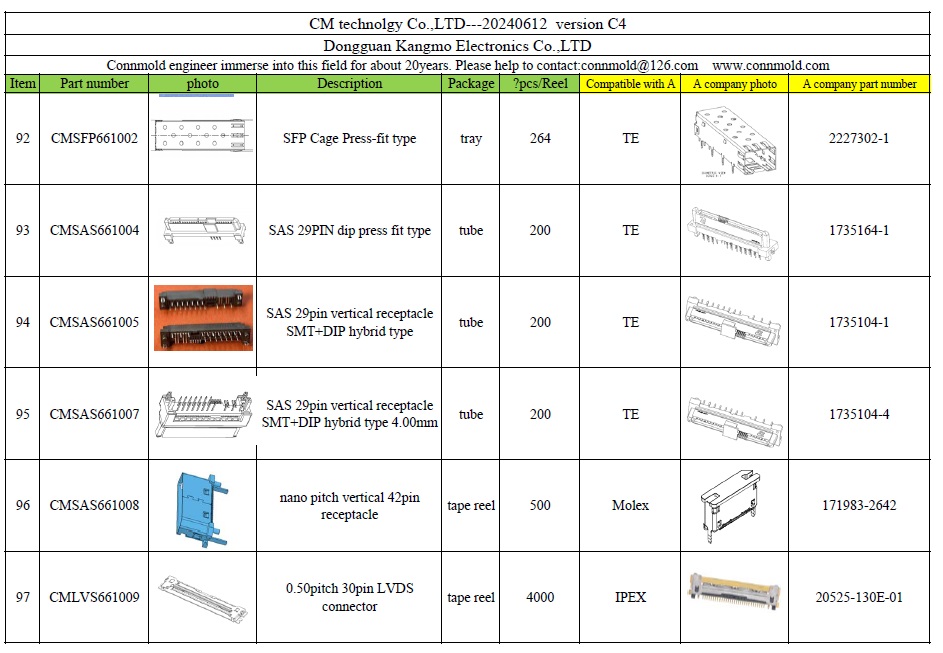

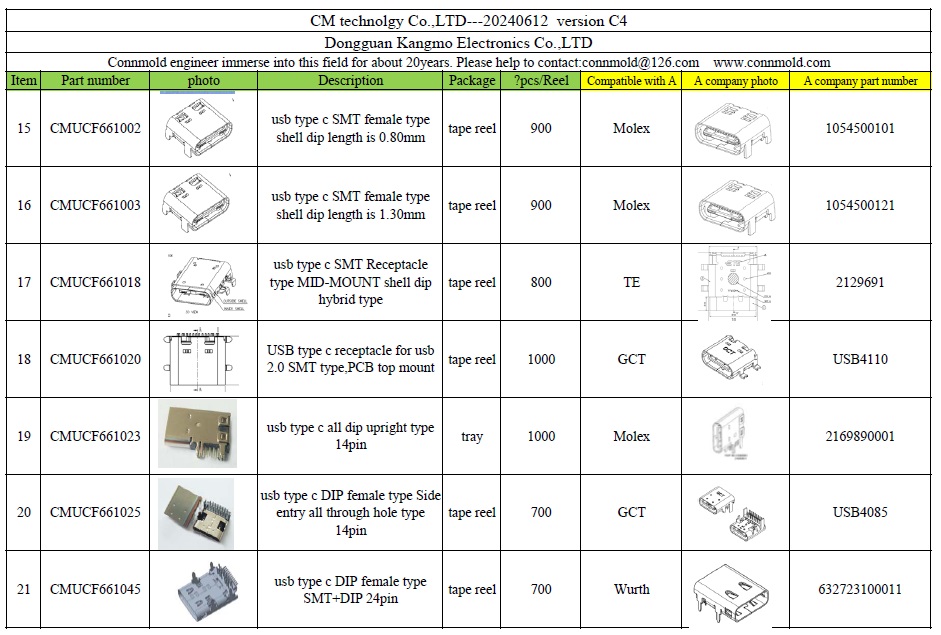

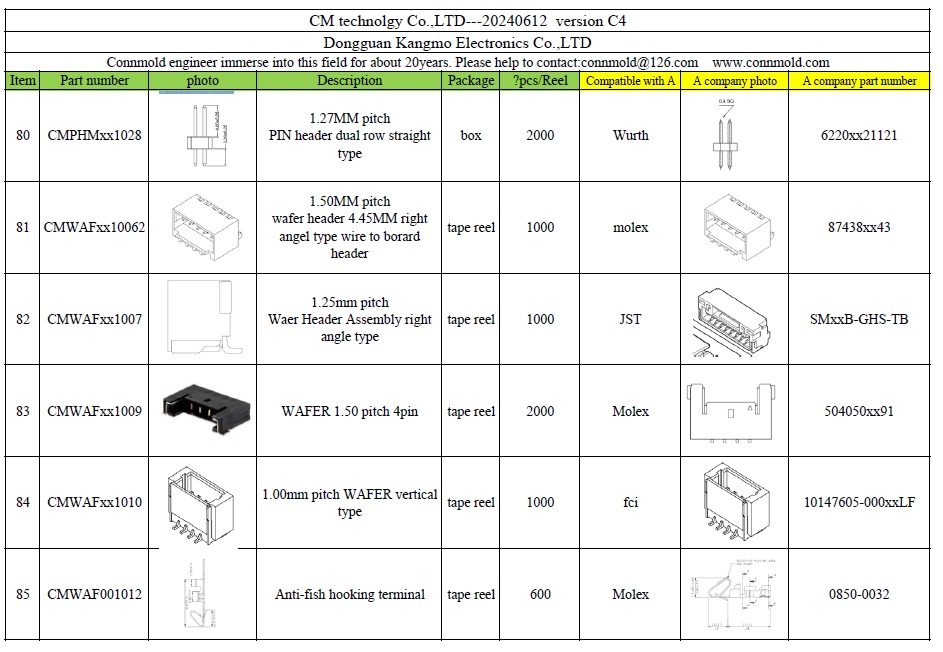

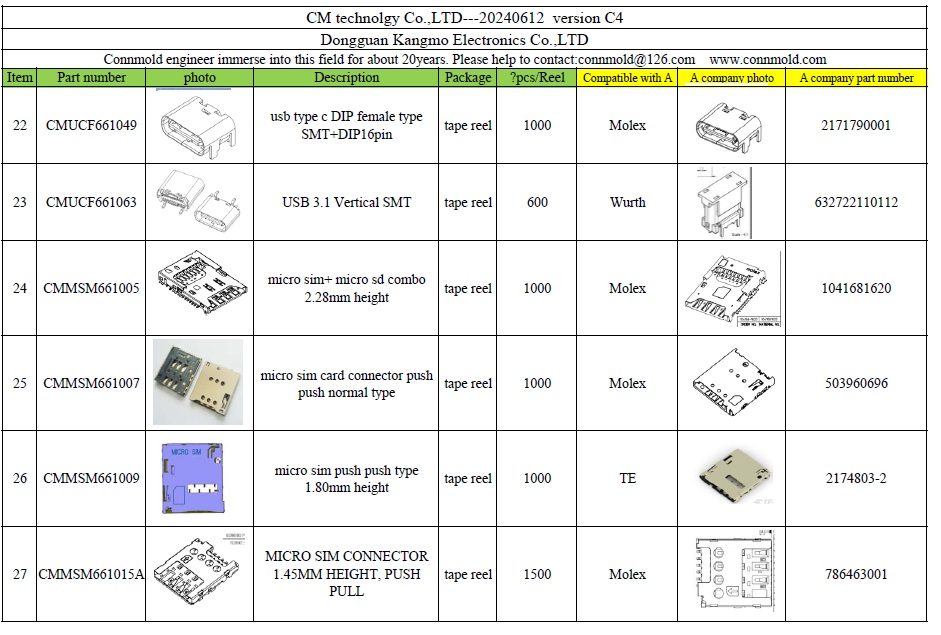

5.Our other products you may like:
