Product Center - card connector - micro sd connector - CMMSD661001 micro sd push push type replace to molex 473521001
Product Details：

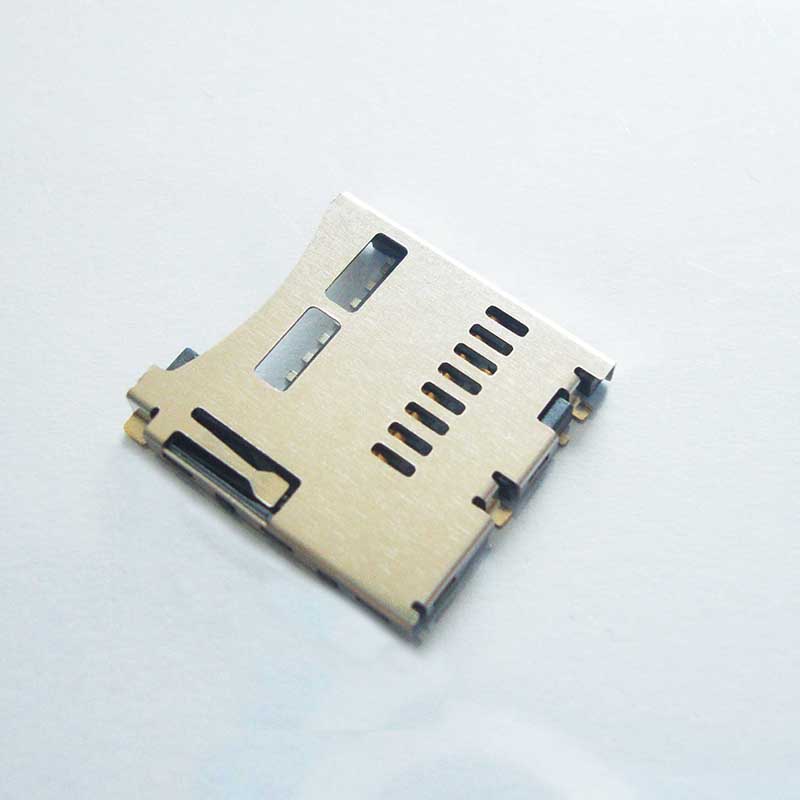

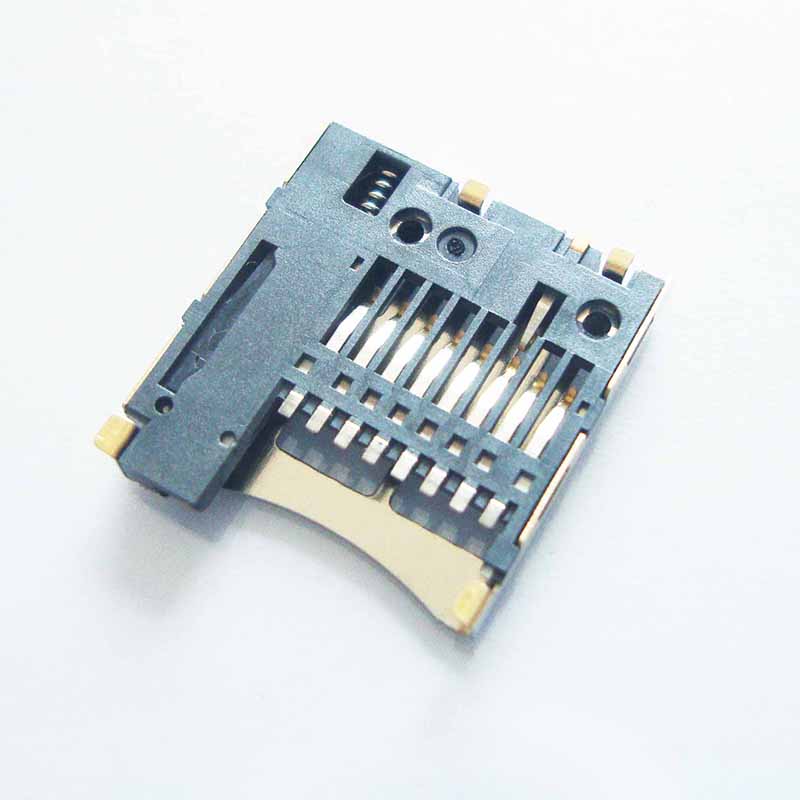

1.Its photo is as below:






2. Parameters:

No.ItemsDescription
1Overview1.10 mm Pitch micro SD card connector, Push Push Type, with VSS (Supply Voltage
Ground) Detect Switch, Lead-Free
2Circuits8
3Color resinBlack
4Durability5000
5GenderFemale
6OrientationRight angle
7Material-contactcopper alloy
8Material-HousingLiquid Crystal polymer LCP
9Flammability class94 V-0
10Mount typetop mount
11Panel Mountyes
12Shield Typeyes
13PitchMating Interface 1.10 mm
14Surface Mount Compatibleyes
15Temperature range-40° to +85°C
16Coplanarity0.10 mm max.
17push functionyes
18card detect switchnormal open
19Current Rating0.5 A
20Contact resistance30 mΩ max.
21Insulation Resistance100 MΩ min.
22Dielectric withstanding voltage100 V AC
23PackageEmbossed Tape and Reel
24Reel dimension13 inch
25how many per reel1000 pieces
26how many per carton10000 pieces
27Easy for pick and place machineyes
28CADyes
293-D Modelyes
30RoHSyes
31Compatible with 473521001same layout, same function, same quality

3.Drawing:
