Product Center - Pogo pin - normal - CMPGP661008 pogo pin 5 pin 2.54 mm pitch 4.00 mm height
Product Details：

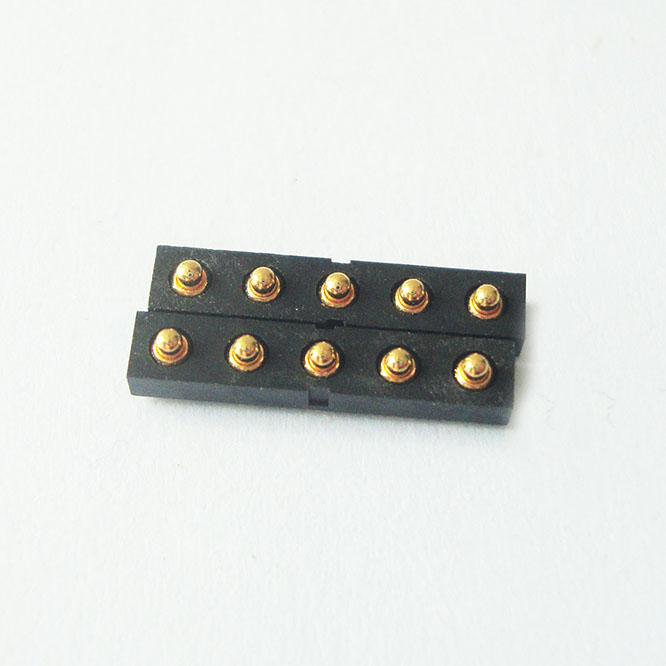

1. photo:

2. parameter
No. Items Description
1 Overview pogo pin 2.54 mm pitch 5 pin height gold plated
2 Circuits 5
3 Color yellow
4 Durability 10000
5 Gender plug
6 barrel material Brass
7 plunger material Brass
8 spring material stainless steel
9 plating thickness 10 micro inch
10 Current Rating 2 A
11 voltage 30 V
12 Temperature range -40° to +85°C
13 Coplanarity 0.05 mm max.
14 spring force 80g
15 Package bag or tape reel
16 Reel dimension 13 inch
17 Easy for pick and place machine yes
18 CAD yes
19 3-D Model yes
20 RoHS yes
21 customerize can provide customerized pogo pin


3.drawing:
