Product Center - Pogo pin - normal - CMPGP661009 pogo pin 2.54 mm pitch 6 pin height gold plated through hole type

Product Details：

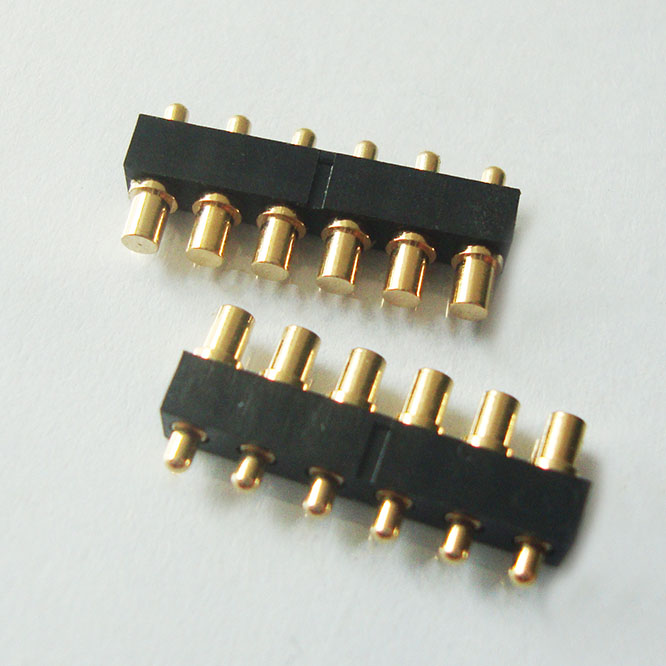

1.Photo

2.Parameters

No.	Items	Description
1	Overview	pogo pin 2.54 mm pitch 6 pin height gold plated through hole type
2	Circuits	6
3	Color	yellow
4	Durability	10000
5	Gender	plug
6	barrel material	Brass
7	plunger material	Brass
8	spring material	stainless steel
9	plating thickness	10 micro inch
10	Current Rating	2 A
11	voltage	30 V
12	Temperature range	-40° to +85°C
13	Coplanarity	0.05 mm max.
14	spring force	80g
15	Package	bag or tape reel
16	Reel dimension	13 inch
17	Easy for pick and place machine	yes
18	CAD	yes
19	3-D Model	yes
20	RoHS	yes
21	customize	can provide customized pogo pin

3.drawing:
