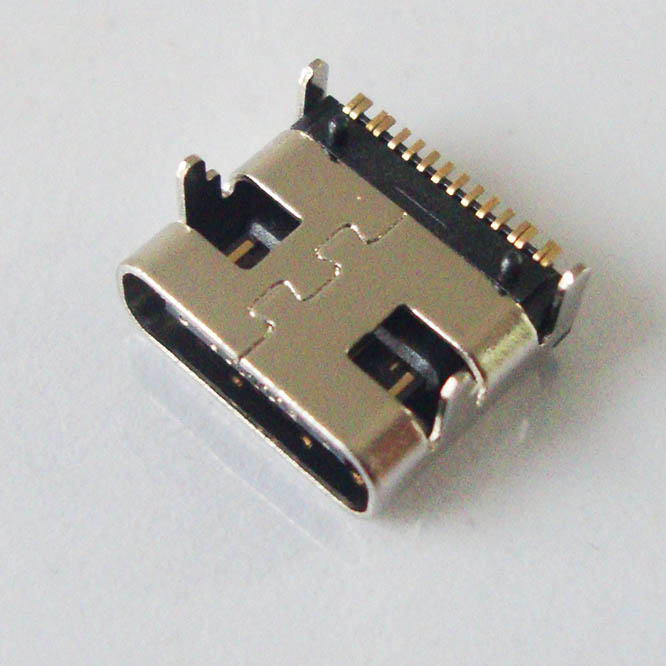

Product Center - USB - USB TYPE C - CMUCF661029 cheapest usb type c 16 pin shell through hole solder tail smt
Product Details：
1.Bottom view:


2.Parameters
No. Items Description
1 Overview usb type c 16 pin shell through hole solder tail smt
2 Circuits 16
3 Color Black
4 Durability 5000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 1.00 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 Current Rating 1.25 A
18 Contact resistance 30 mΩ max.
19 Insulation Resistance 100 MΩ min.
20 Dielectric withstanding voltage 100 V AC
21 Package Embossed Tape and Reel
22 Reel dimension 13 inch
23 how many per reel 1000 pieces
24 how many per carton 10000 pieces
25 Easy for pick and place machine yes
26 CAD yes
27 3-D Model yes
28 RoHS yes
29 cheapest molding 1 times


3.drawing
