Product Center - USB - USB TYPE C - CMUCF661002 usb type c 24 pin compatible with molex 1054500101
Product Details：

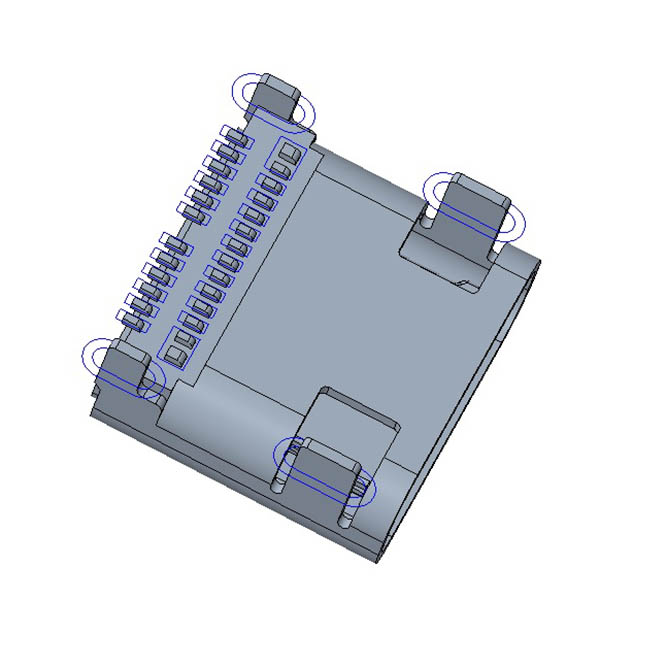

1.bottom view:


2.Parameter
No. Items Description
1 Overview CMUCF661002 usb type c 24 pin compatible with molex 1054500101
2 Circuits 24
3 Color Black
4 Durability 5000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.50 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 Pitch SMT side: 0.50 mm
18 full function yes
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 900 pieces
26 how many per carton 9000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with compatible with 1054500101 , same layout , same function


3.drawing：
