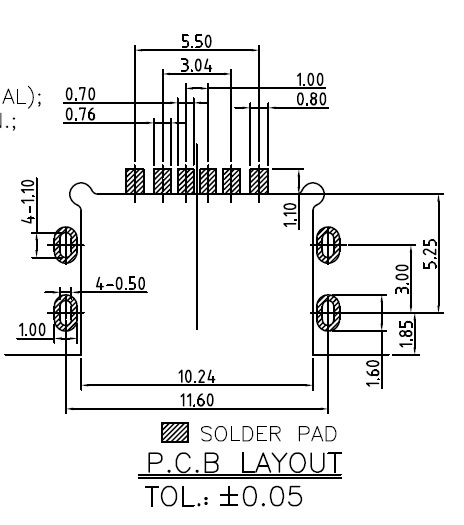

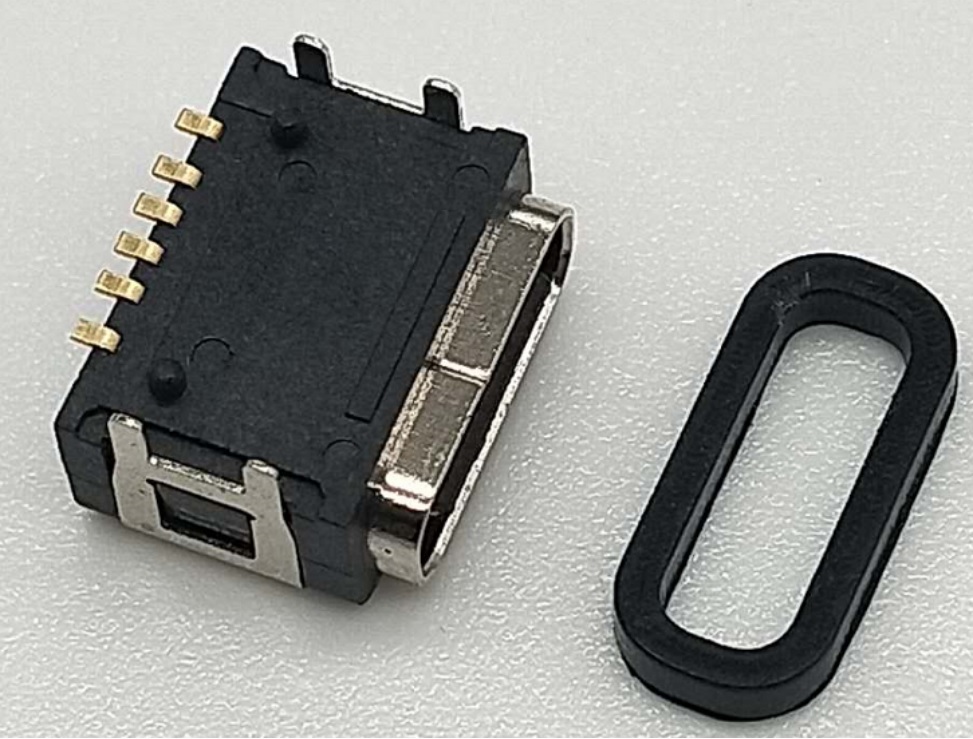

1. Mid-mount usb type c waterproof type Compatible with MOLEX 2171770001 2. tape reel package, 700 pieces/reel 3. 7000 pieces per carton 4.Rating: 3A 5.Contact resistance: 30 mW max 6.Dielectric withstanding voltage:100 VAC 7.Insulation resistance :100 MW min 8.Durability :10000 cycles 9.Insertion force: meet the USB specifications 10. Compatible with MOLEX 2171770001 11. Can provide 2 D, PDF, and 3 D 12.15 years connector field experience, easy to communicate 13. Its layout is as below:

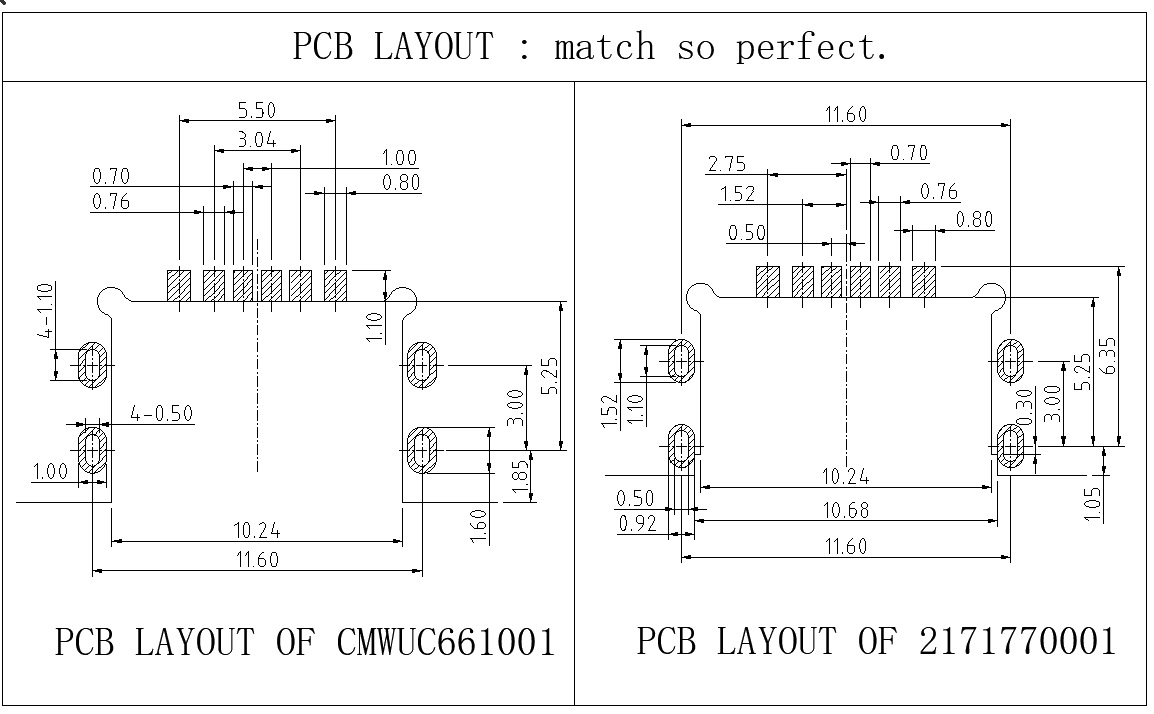

14. Compare with 2171770001 layout is as below:
| No. |
Items |
Description |
| 1 |
Overview |
USB
shielded I/O Receptacle,Type C,Right Angle, Surface Mount, Mid-mount
type,Waterproof IPx6, 6 circuits, Gold plating |
| 2 |
Circuits |
6 |
| 3 |
Color |
Black |
| 4 |
Durability |
10000 |
| 5 |
Gender |
Female |
| 6 |
Orientation |
Right angle |
| 7 |
Material-Metal |
copper alloy |
| 8 |
Material-Housing |
Liquid Crystal
polymer LCP |
| 9 |
UL class |
94 V-0 |
| 10 |
Mount type |
Mid-mount |
| 11 |
Panel Mount |
yes |
| 12 |
Shield Type |
yes |
| 13 |
Pitch |
Mating Interface
0.50 mm |
| 14 |
Surface Mount
Compatible |
yes |
| 15 |
Temperature range |
-40° to +85°C |
| 16 |
Coplanarity |
0.10 mm max. |
| 17 |
Waterproof /
Dust proof |
yes |
| 18 |
Waterproof /
Dust proof Type |
IP 66 |
| 19 |
Current Rating |
1.25 A |
| 20 |
Contact resistance |
30 mΩ max. |
| 21 |
Insulation Resistance |
100 MΩ min. |
| 22 |
Dielectric
withstanding voltage |
100 V AC |
| 23 |
Package |
Embossed Tape and
Reel |
| 24 |
Reel dimension |
13 inch |
| 25 |
how many per reel |
700 Pieces |
| 26 |
how many per carton |
7000 Pieces |
| 27 |
Easy
for pick and place machine |
yes |
| 28 |
CAD |
yes |
| 29 |
3D Model |
yes |
| 30 |
Compatible with
2171770001 |
same layout, same
function, same quality |
|
