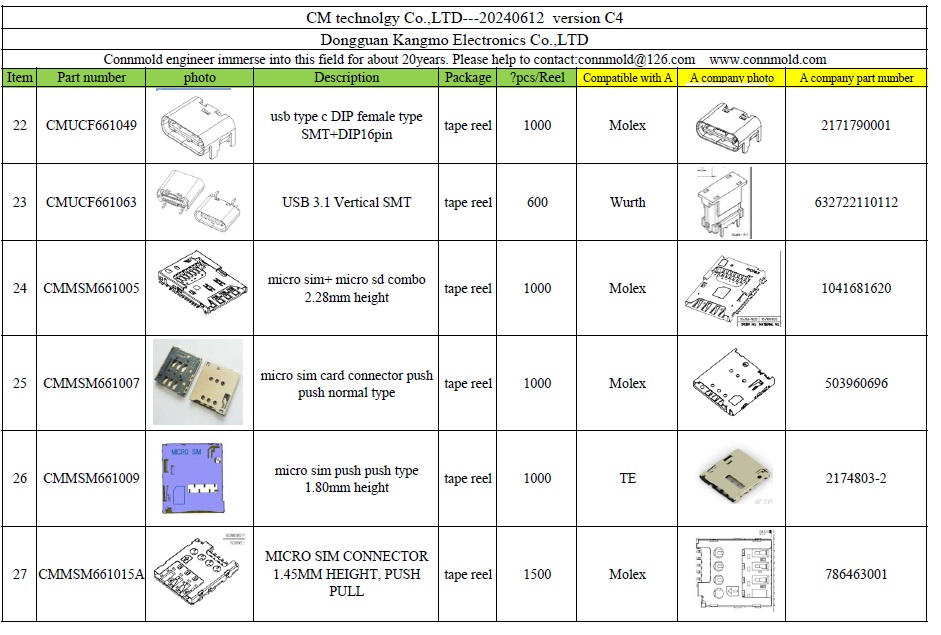

Product Center - card connector - 3FF sim conn - CMMSM661009 micro sim 3FF card connector push in push out type
Product Details:
1.This connector , its layout is same as TE AMP 2174803-2
2.Please note that, the height of TE AMP 2174803-2 is 1.27 mm, and the height of CMMSM661009 is 1.80mm
3.Others is same.
No. Items Description
1 Overview micro sim 3FF card connector push in push  out type ,Layout compatible with  TE 2174803-2
2 Circuits 6
3 Color Black
4 Durability 1500
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 2.54 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.09 mm max.
17 push function yes
18 card detect function yes
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1000 pieces
26 how many per carton 10000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with 2174803-2
