2.Can provide 2D 3D for your design easily

3.Perfect match USB type-c association

4.Waterproof grade: IP67

5.Tape reel package, 1500pcs per reel, easily for SMT machine to pick and place

6.Other parameters as below:

No.	Items	Description
1	Overview	CMWUC661030 waterproof IP67 USB 2.0 Type-C two Row Right Angle Receptacle compatible with amphenol 3410-3CJWLCA2KR
2	Circuits	24
3	Color	Black
4	Durability	10000
5	Gender	Female
6	Orientation	Right angle
7	Material-Metal	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	flaming class	94 V-0
10	Mount type	middle mount
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 0.50 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	Current Rating	5.0 A
18	Contact resistance	30 mΩ max.
19	Insulation Resistance	100 MΩ min.
20	Dielectric withstanding voltage	100 V AC
21	Package	Embossed Tape and Reel
22	Reel dimension	13 inch
23	how many per reel	1500 pieces
24	how many per carton	15000 pieces
25	Easy for pick and place machine	yes
26	CAD	yes
27	3-D Model	yes
28	RoHS	yes
29	free samples	can provide free samples
30	Perfect match	Amphenol 3410-3CJWLCA2KR

7.Its drawing is as below:

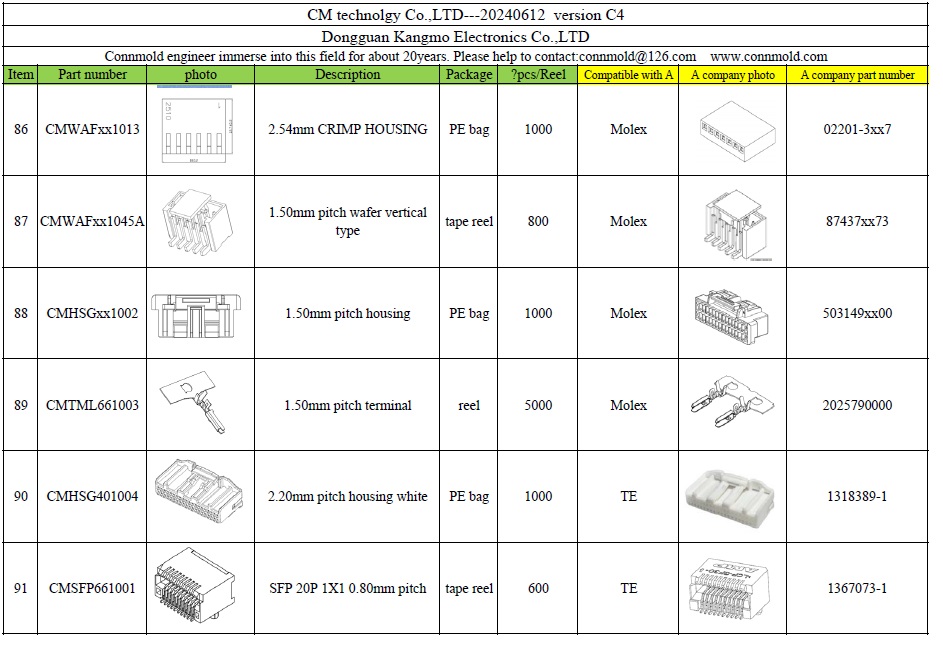

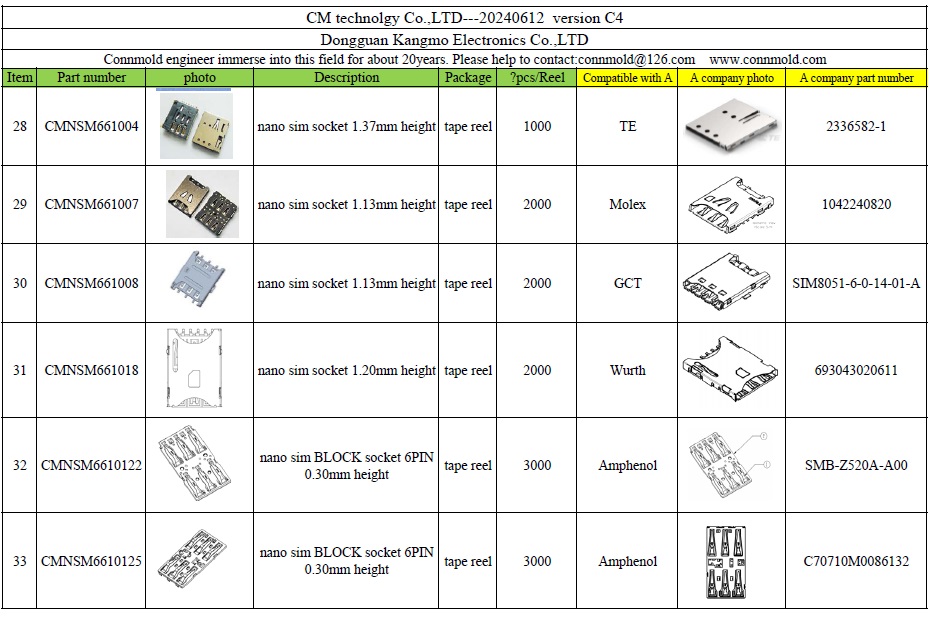

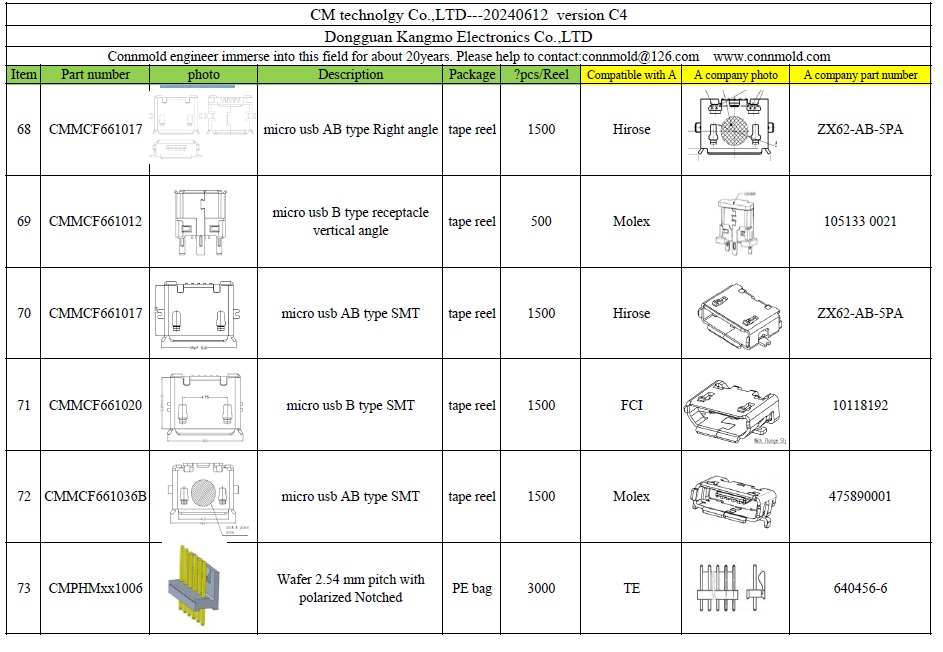

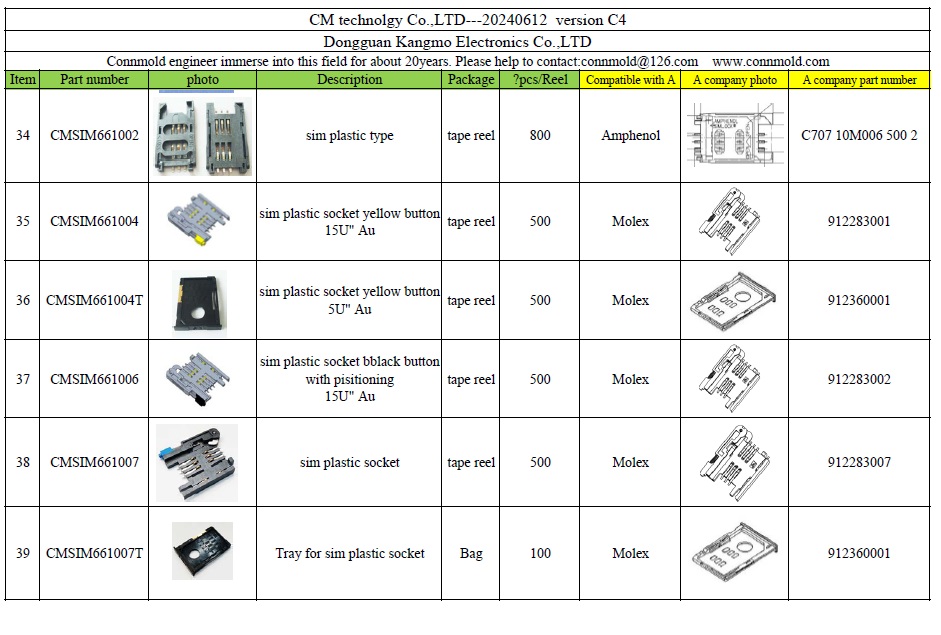

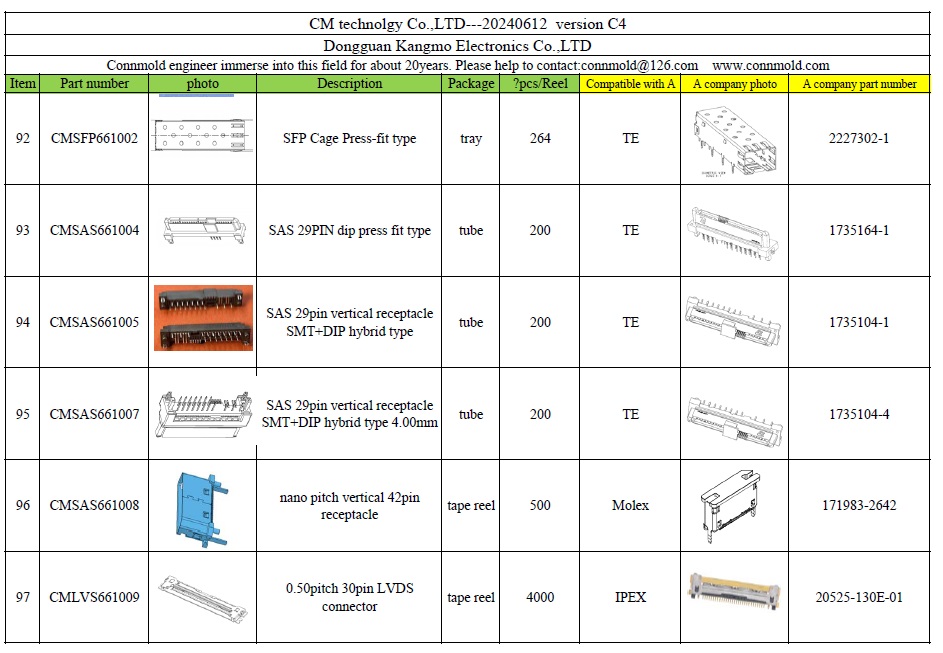

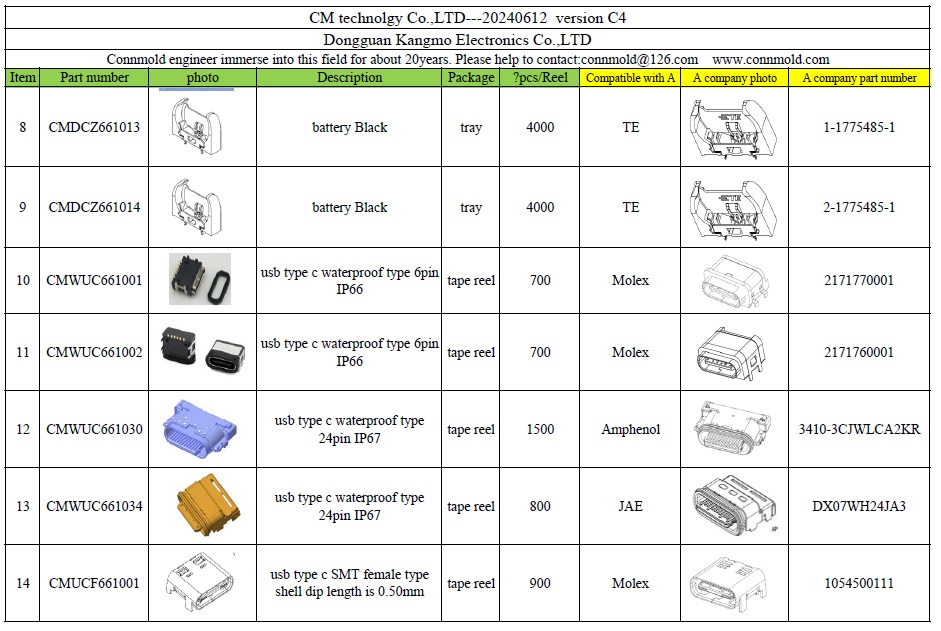

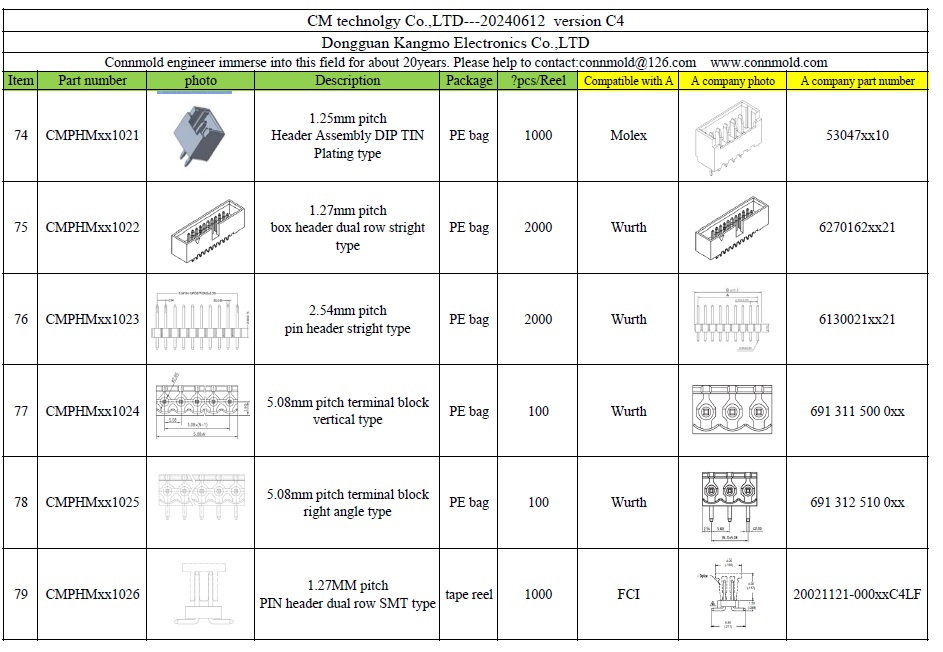

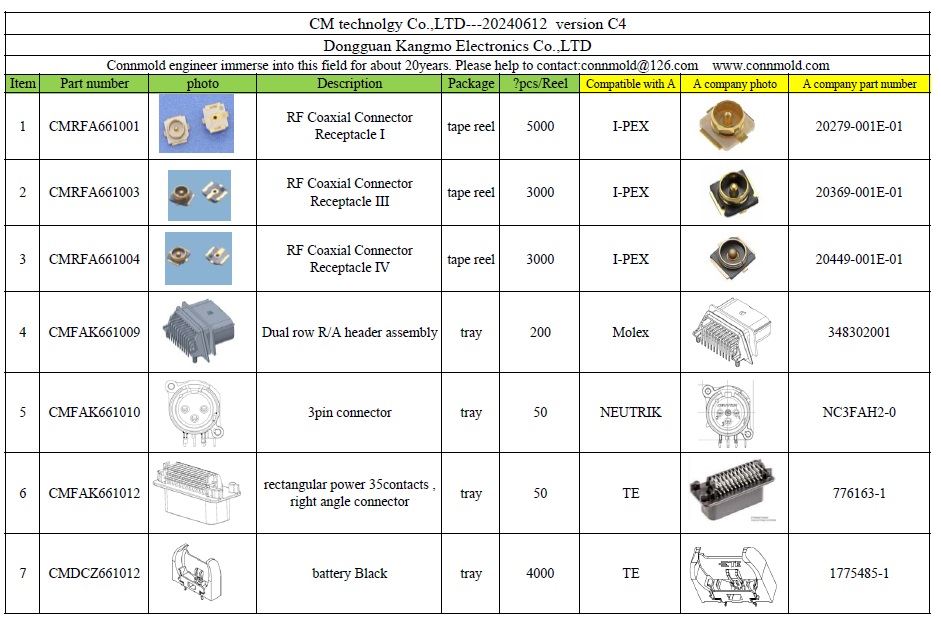

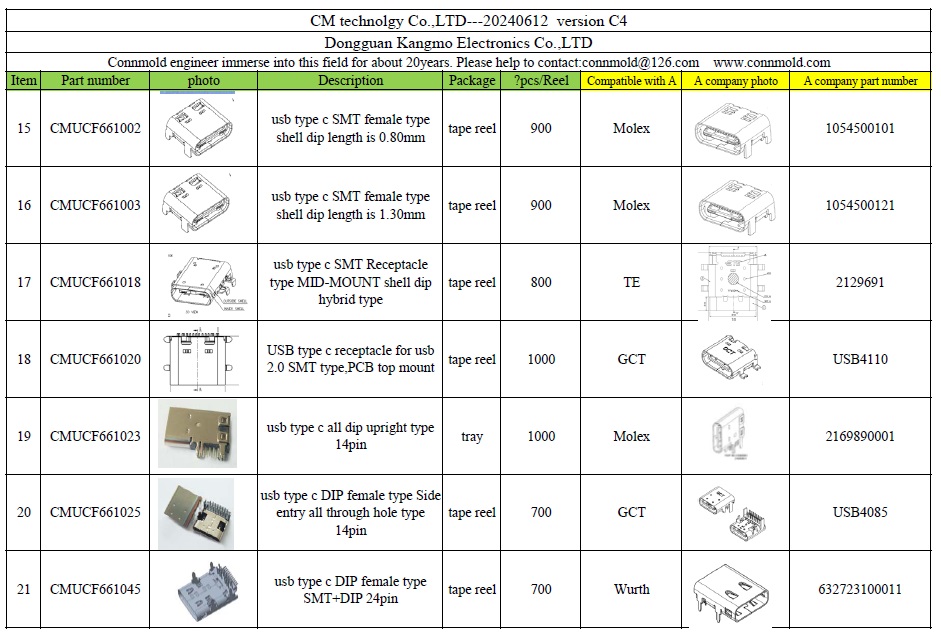

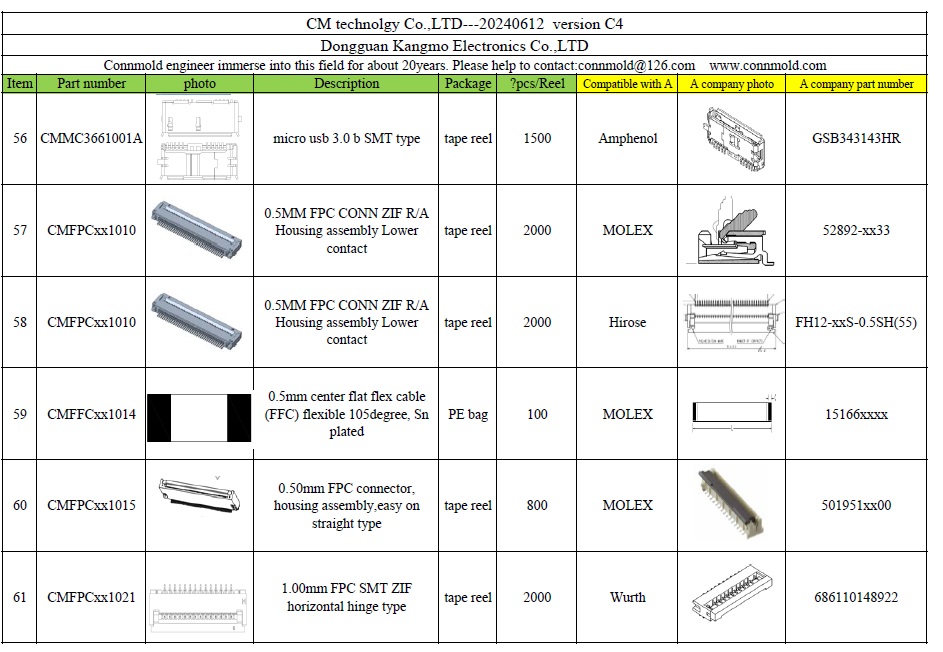

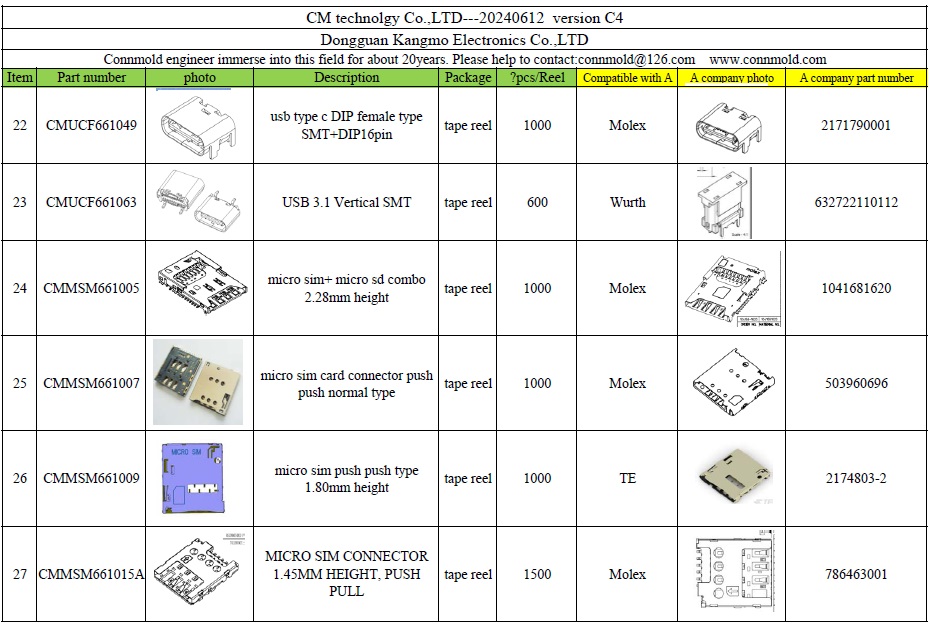

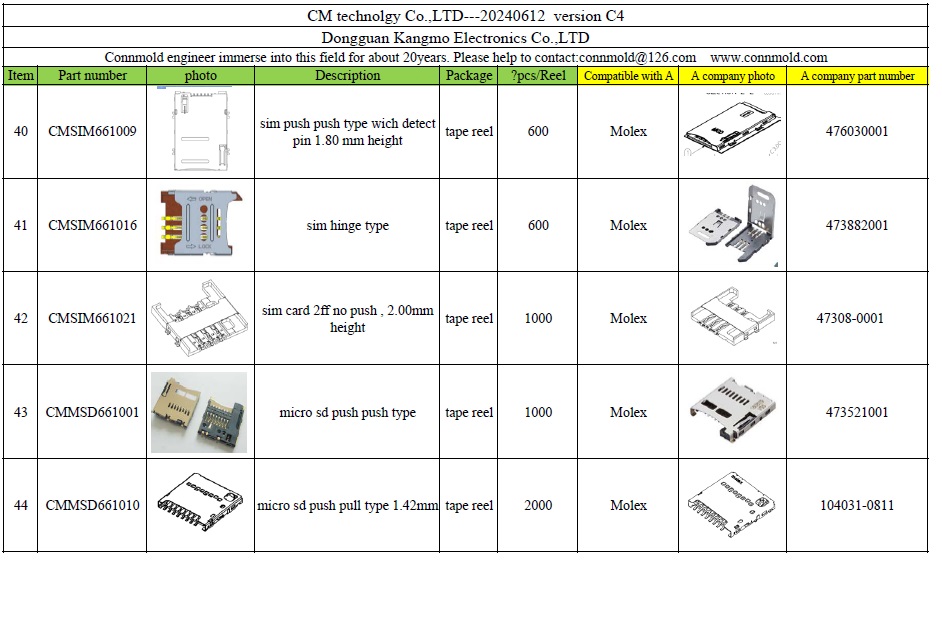

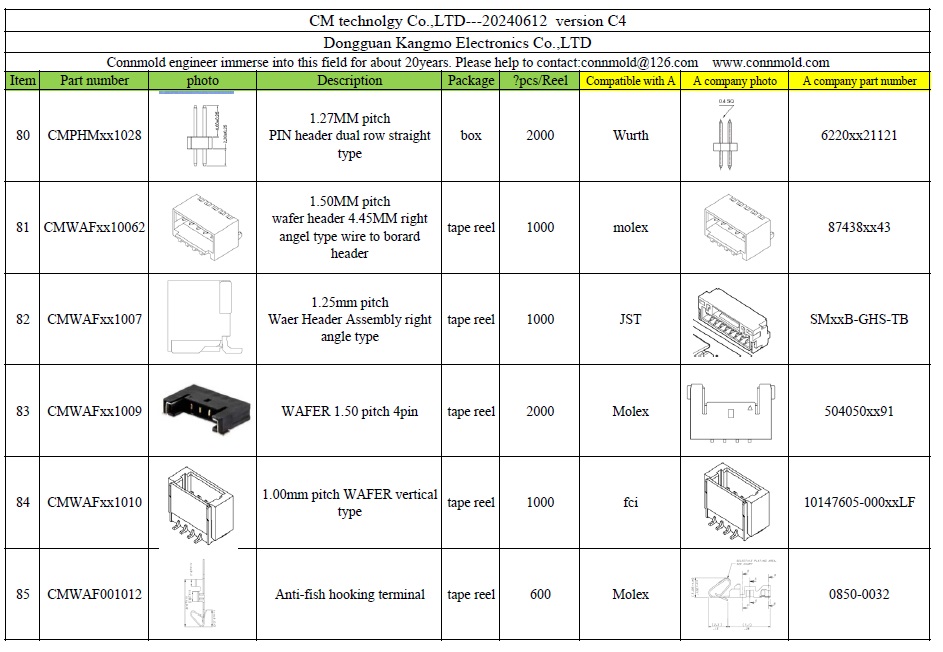

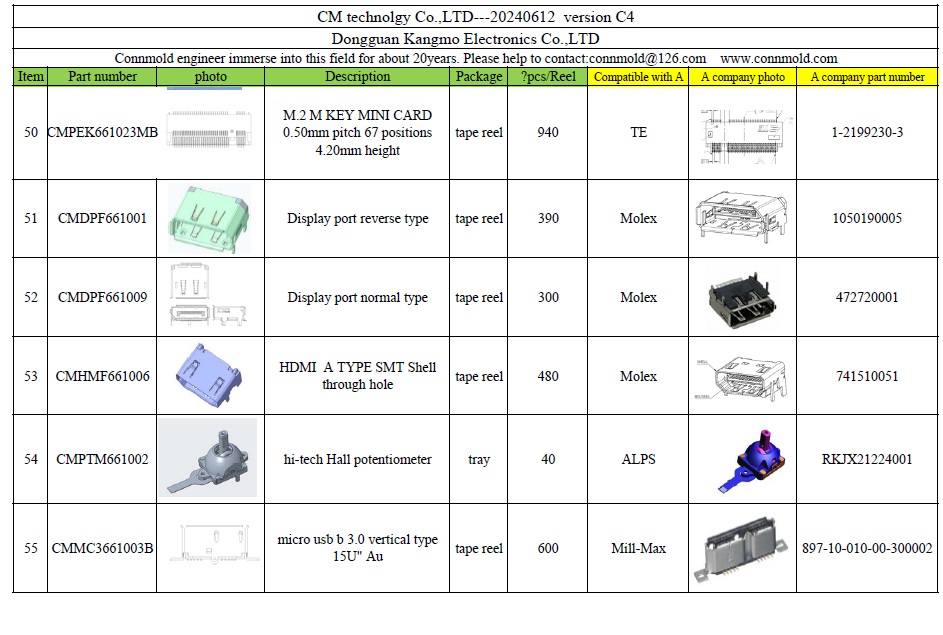

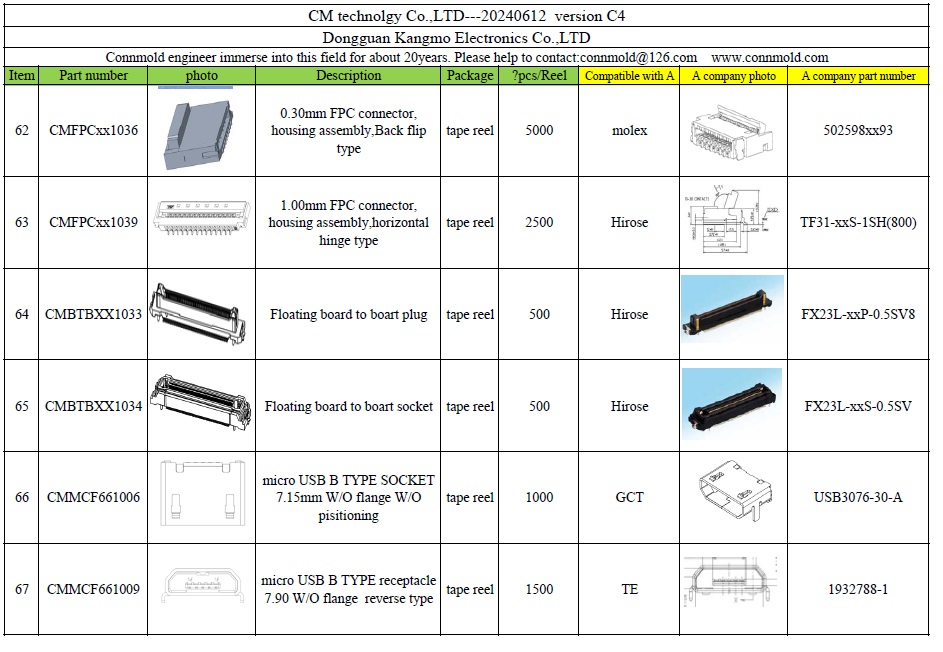

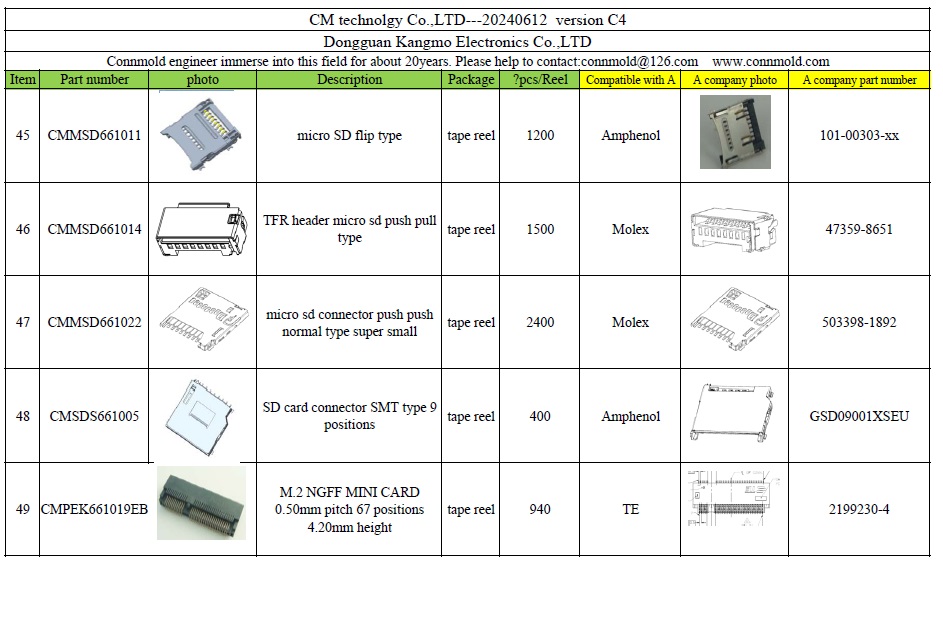

8.Our hot compatible parts as as below, please help to click :

9.Of course, we pick some pictures as below for your check
