2.Total positions is 16pin

3.Waterproof grade: IP67

4.Charging fast

5.Can provide 2D 3D , so that easy for your design

6.Capacity is 3000PCS/day

7.Other parameters as below

No.	Items	Description
1	Overview	CMWUC661032 waterproof hybrid IP67 USB 2.0 Type-C fast charging port single Row Right Angle Receptacle  16positions
2	Circuits	16
3	Color	Black
4	Durability	10000
5	Gender	Female
6	Orientation	Right angle
7	Material-Metal	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	flaming class	94 V-0
10	Mount type	middle mount
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 0.50 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	Current Rating	5.0 A
18	Contact resistance	30 mΩ max.
19	Insulation Resistance	100 MΩ min.
20	Dielectric withstanding voltage	100 V AC
21	Package	Embossed Tape and Reel
22	Reel dimension	13 inch
23	how many per reel	1000 pieces
24	how many per carton	10000 pieces
25	Easy for pick and place machine	yes
26	CAD	yes
27	3-D Model	yes
28	RoHS	yes
29	free samples	can provide free samples

8.Drawing:

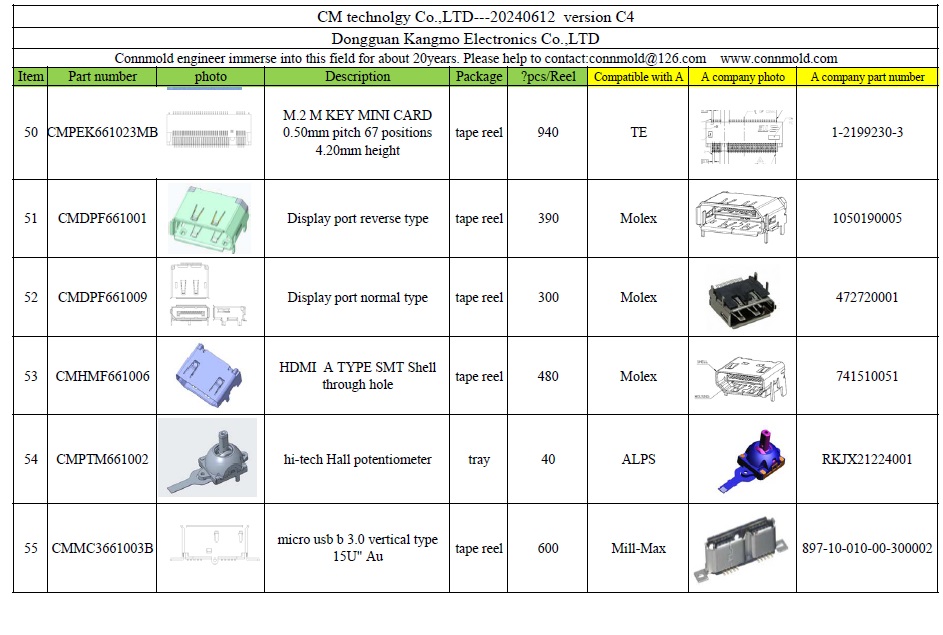

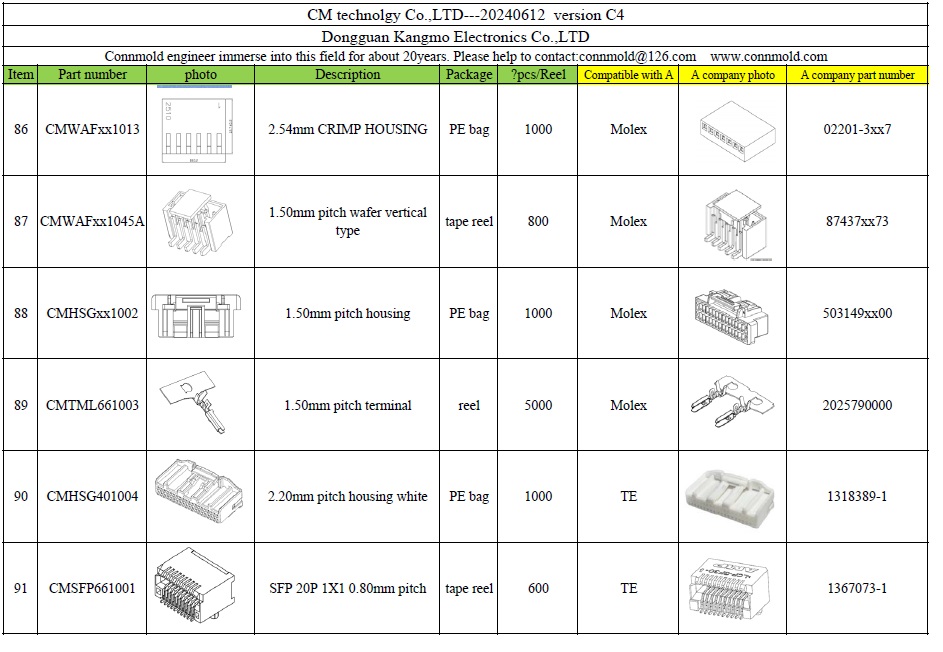

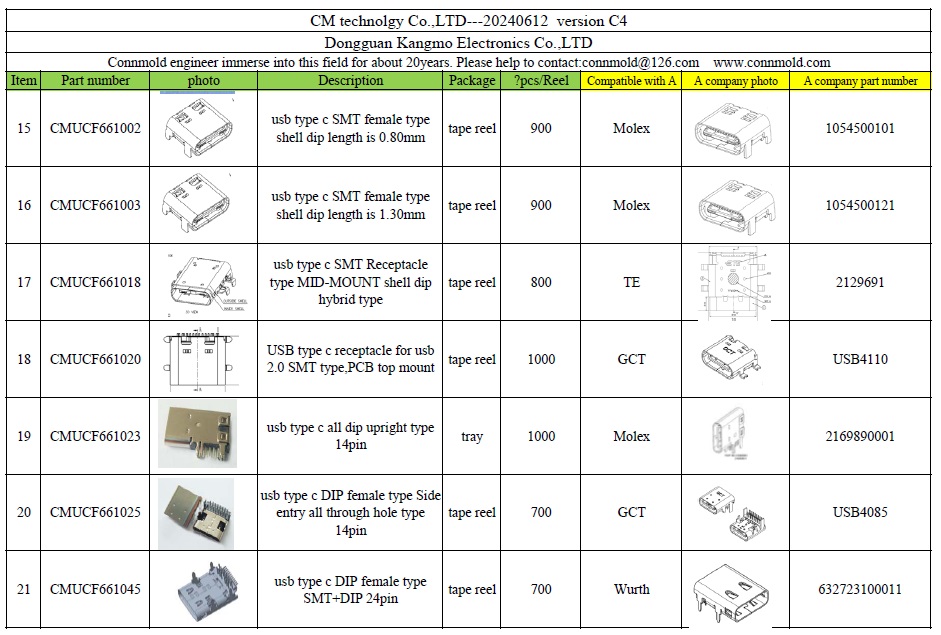

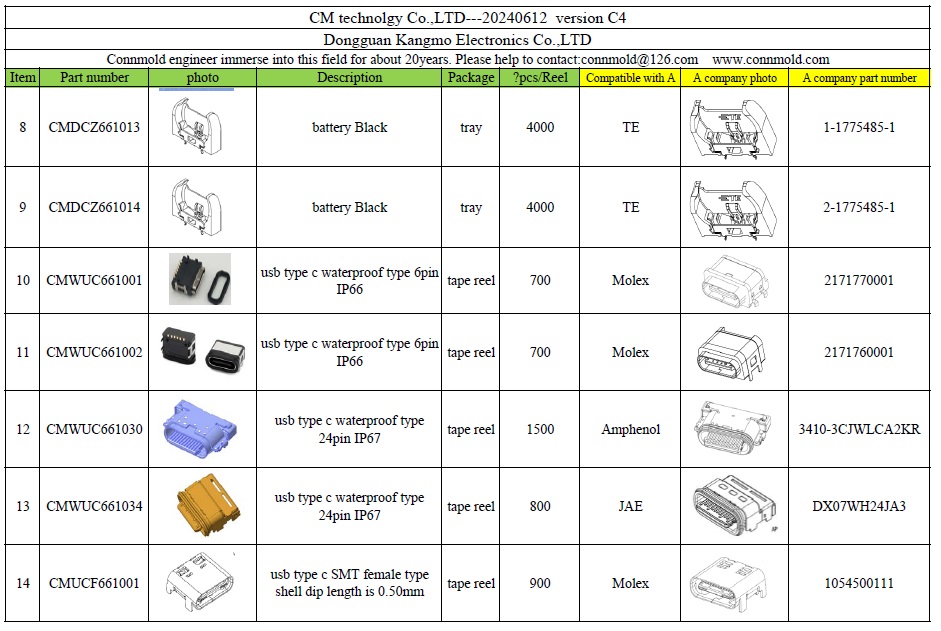

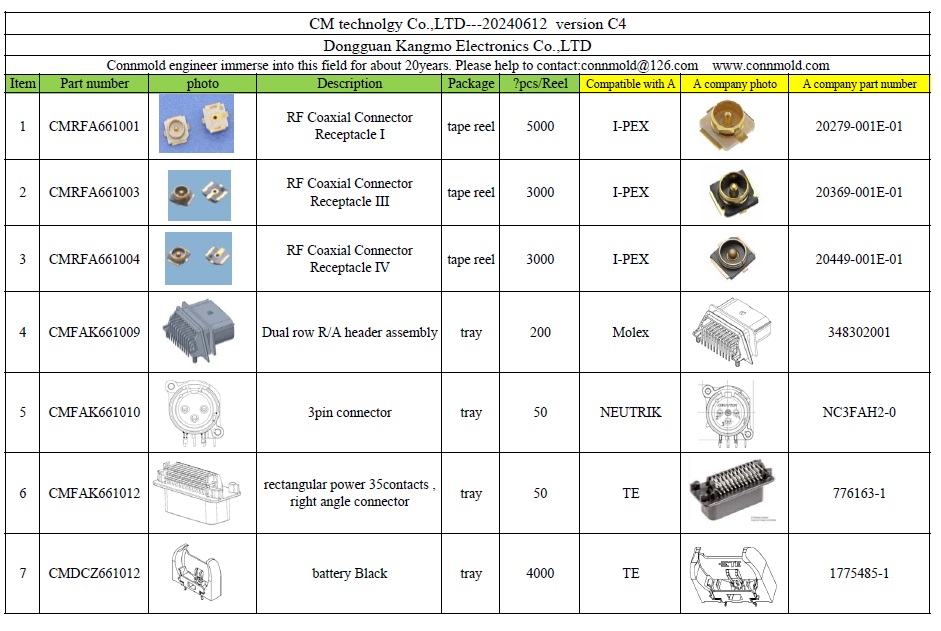

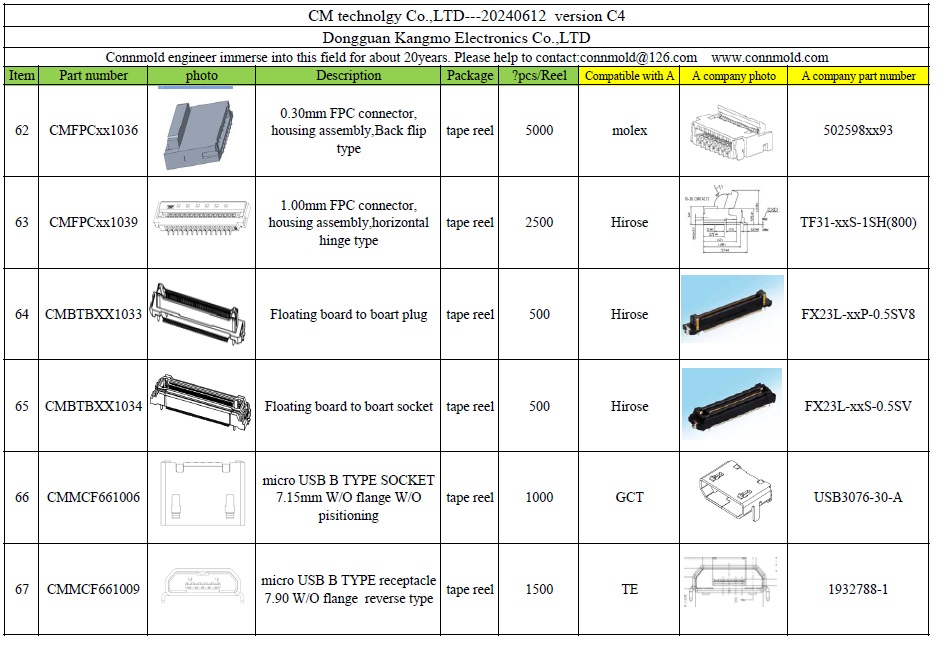

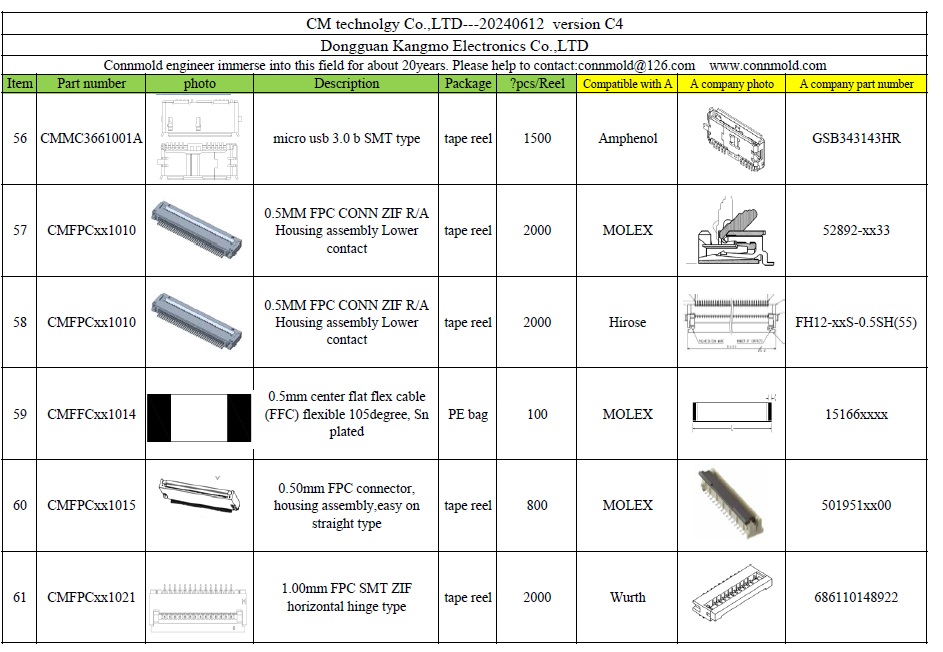

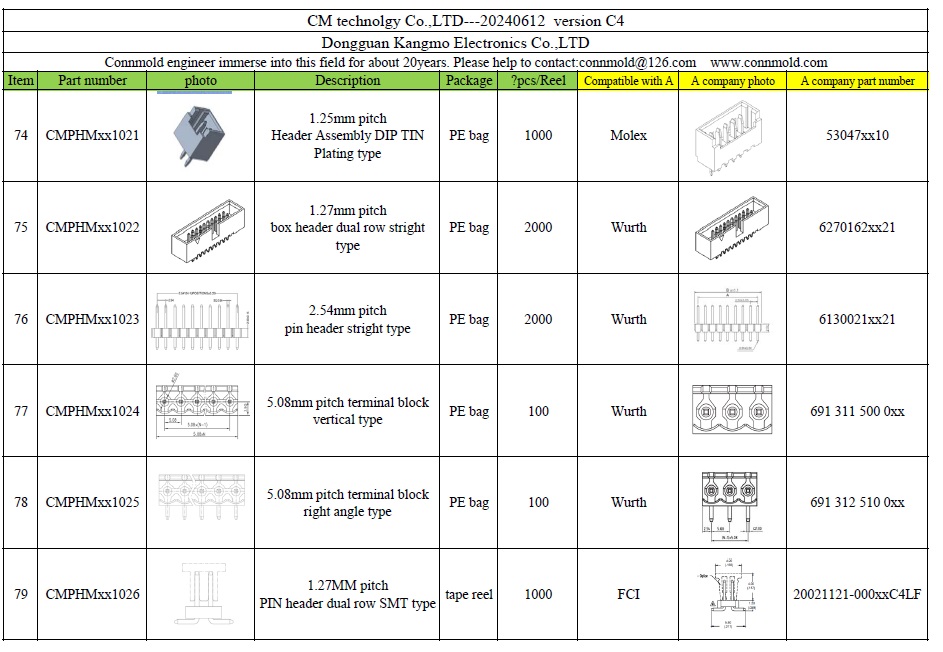

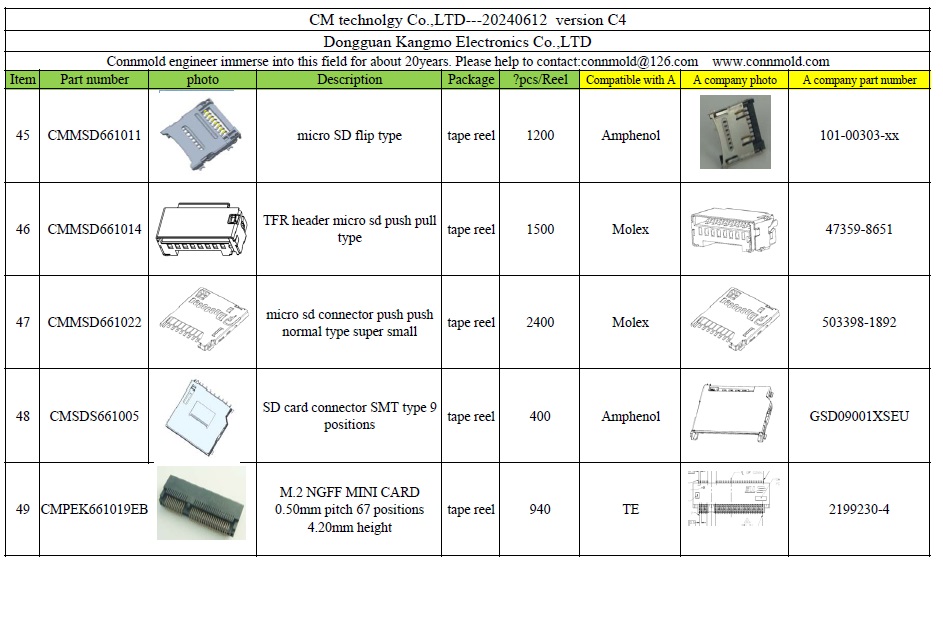

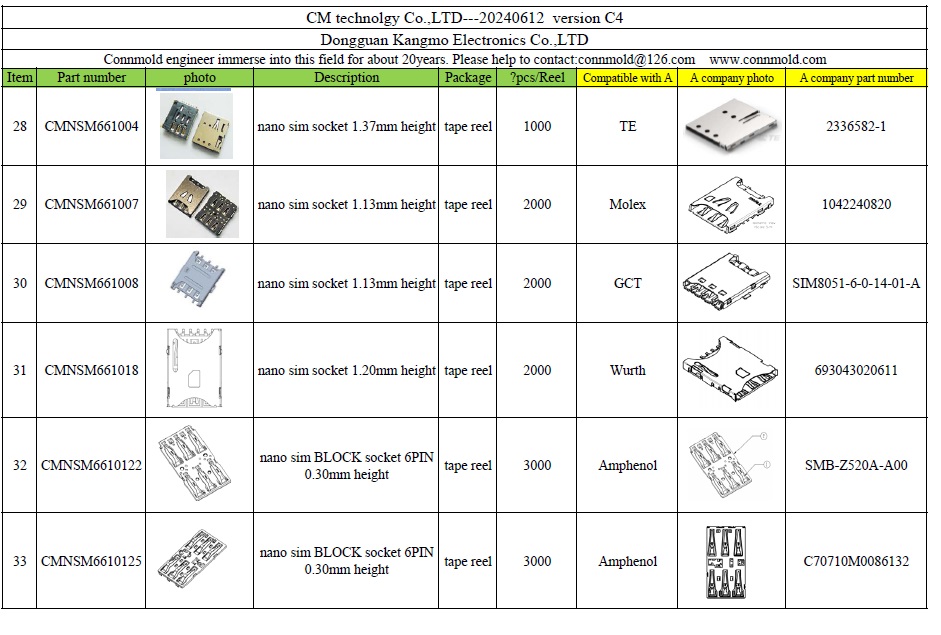

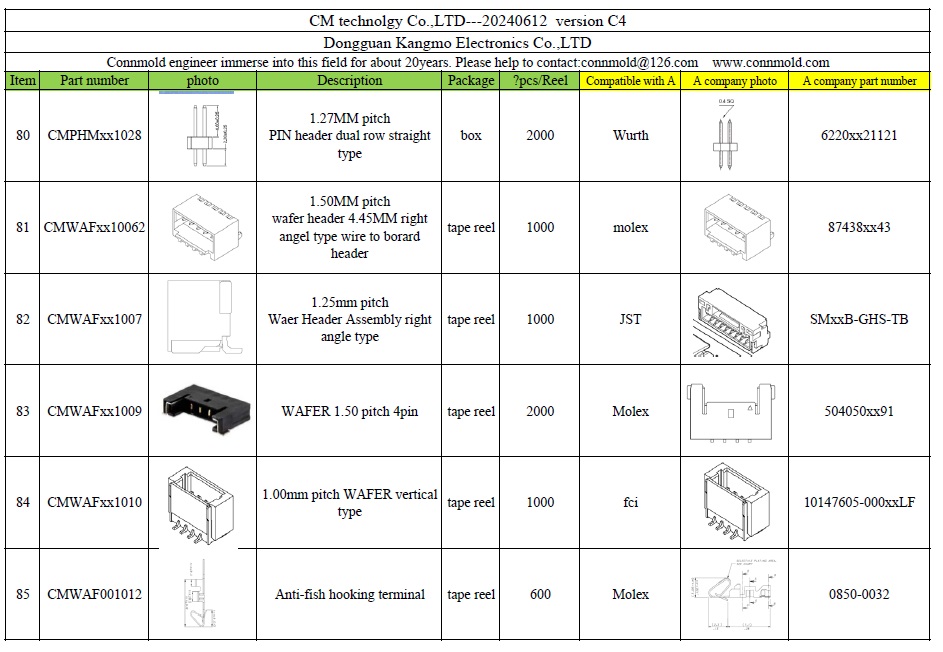

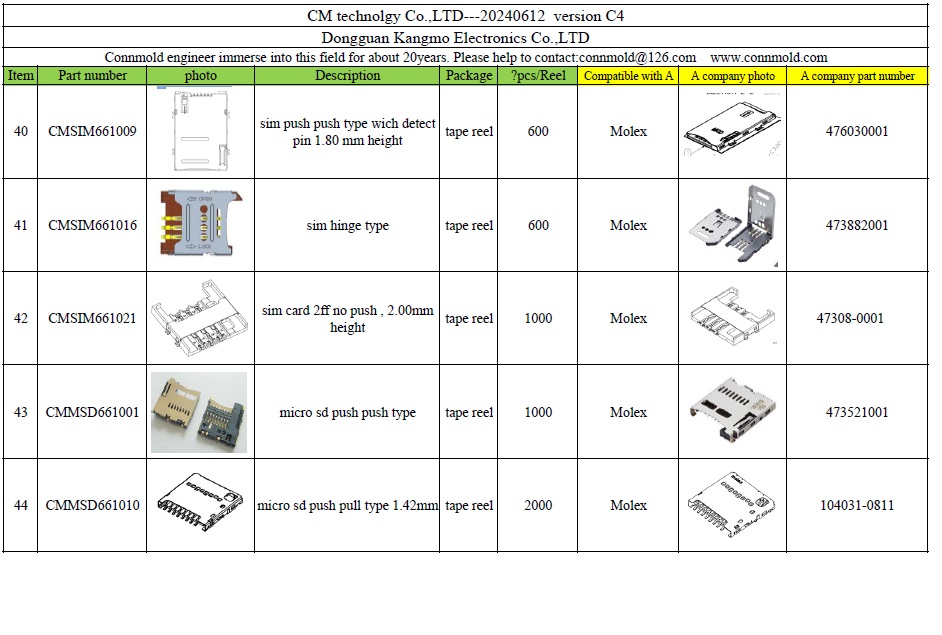

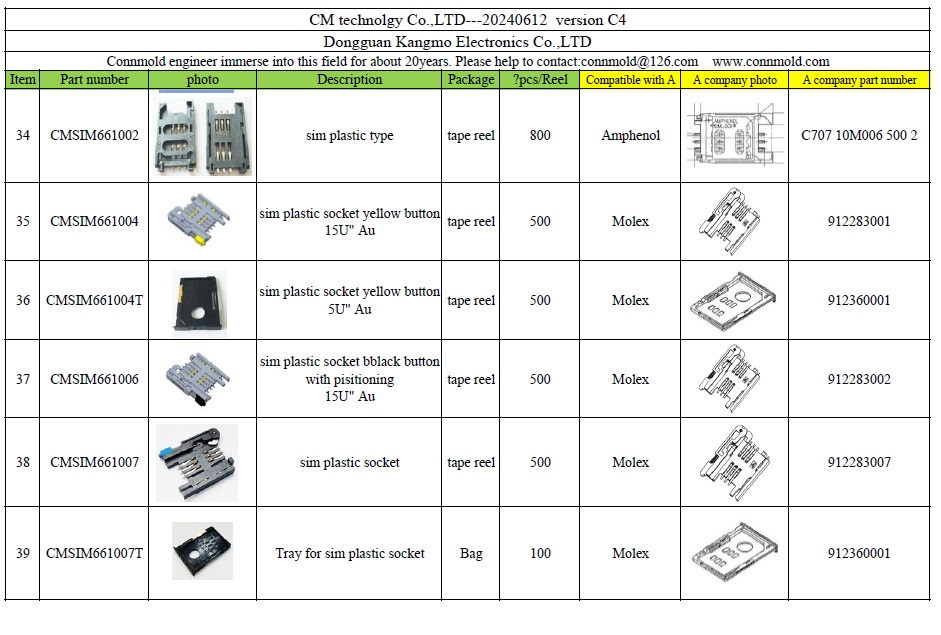

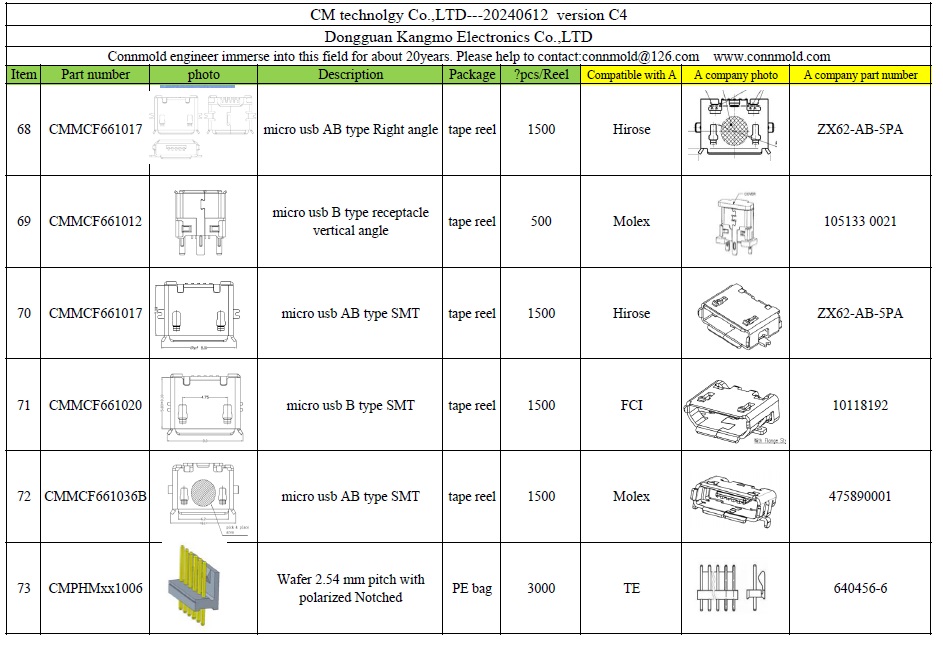

9.some other product you may like:

10.Of course you can download it here:
