2.Capacity is 10000pcs per day

3.Can support CAD 3D step file

4.Can provide free samples

5.All dimensions can meet USB TYPE-c Cable and Connector Specification

No.	Items	Description
1	Overview	CMUCF661016A  USB TYPE C Receptacle 24 positions Vertical ,total height 6.50mm
2	Circuits	24
3	Color	Black
4	Durability	10000
5	Gender	Female
6	Orientation	Vertical
7	Material-Metal	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	flaming class	94 V-0
10	Mount type	top mount
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 0.50 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	meet USB Type-C Cable and Connector Specification	yes
18	100% check function	yes
19	Current Rating	1.25 A
20	Contact resistance	30 mΩ max.
21	Insulation Resistance	100 MΩ min.
22	Dielectric withstanding voltage	100 V AC
23	Package	Embossed Tape and Reel
24	Reel dimension	13 inch
25	how many per reel	600 pieces
26	how many per carton	4200 pieces
27	Easy for pick and place machine	yes
28	CAD	yes
29	3-D Model	yes
30	RoHS	yes
31	Quality is first	yes
32	free samples	can provide free samples

7.The drawing is as below:

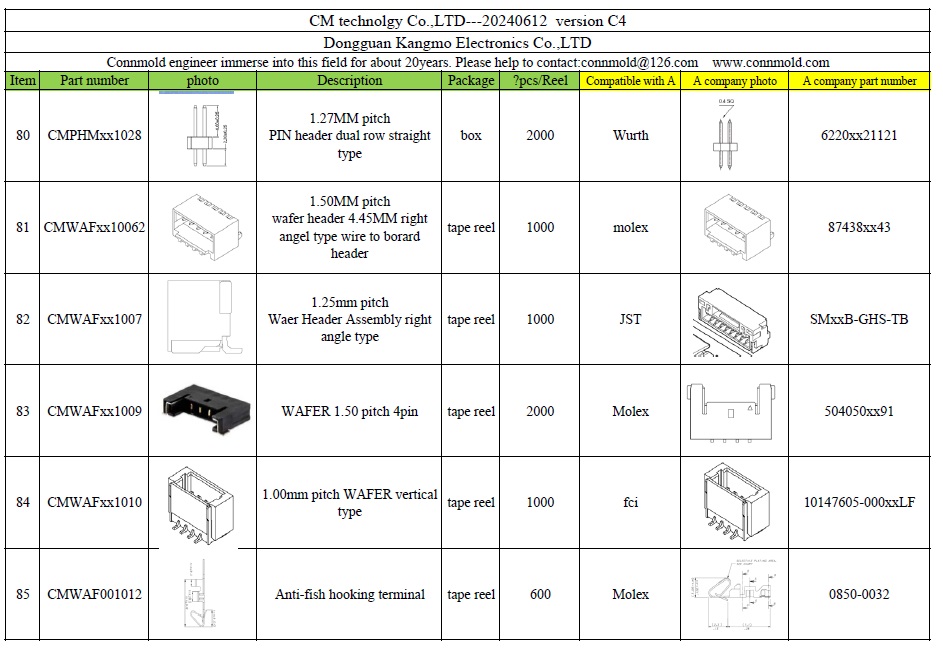

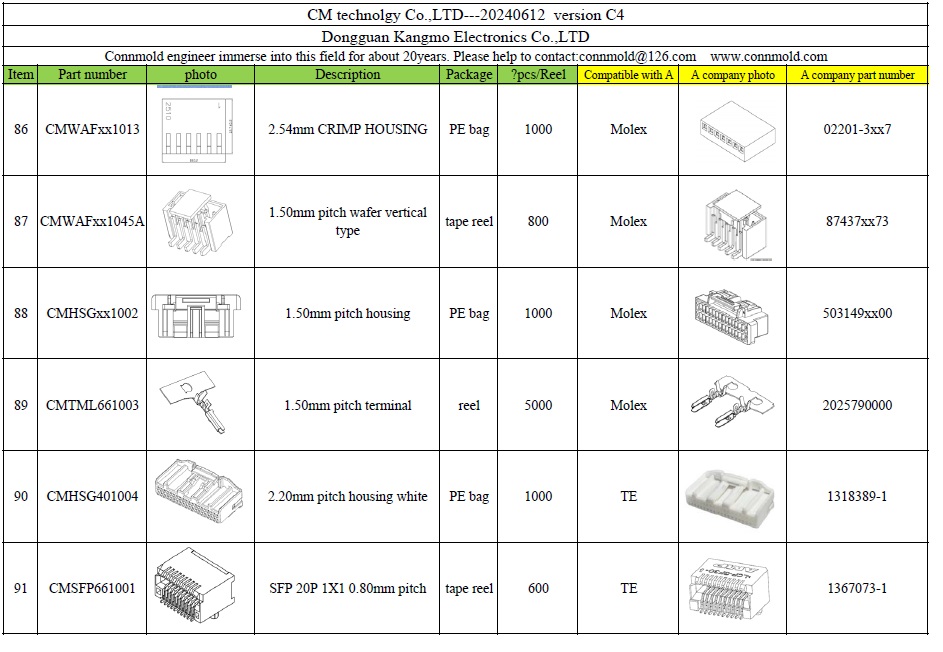

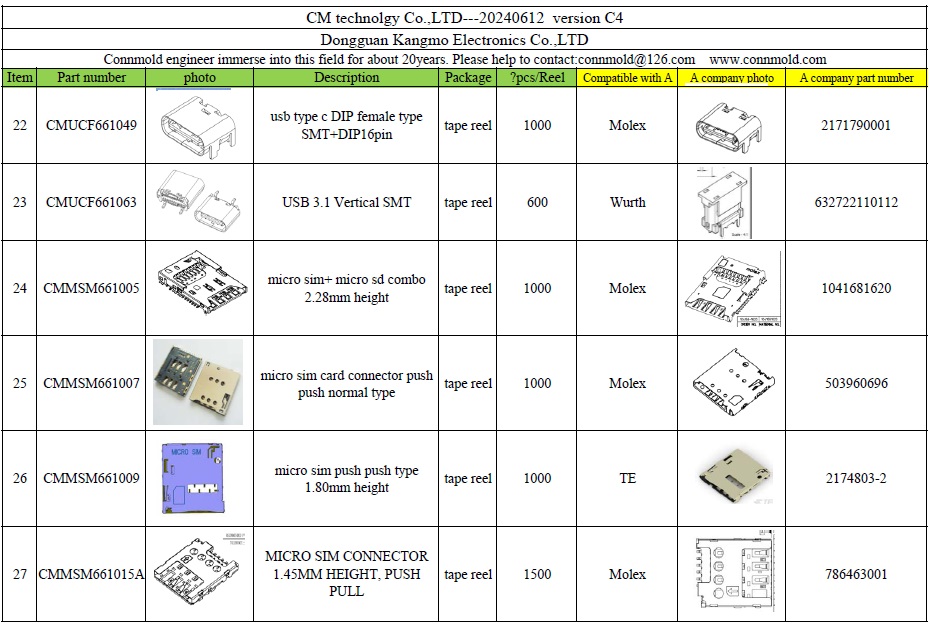

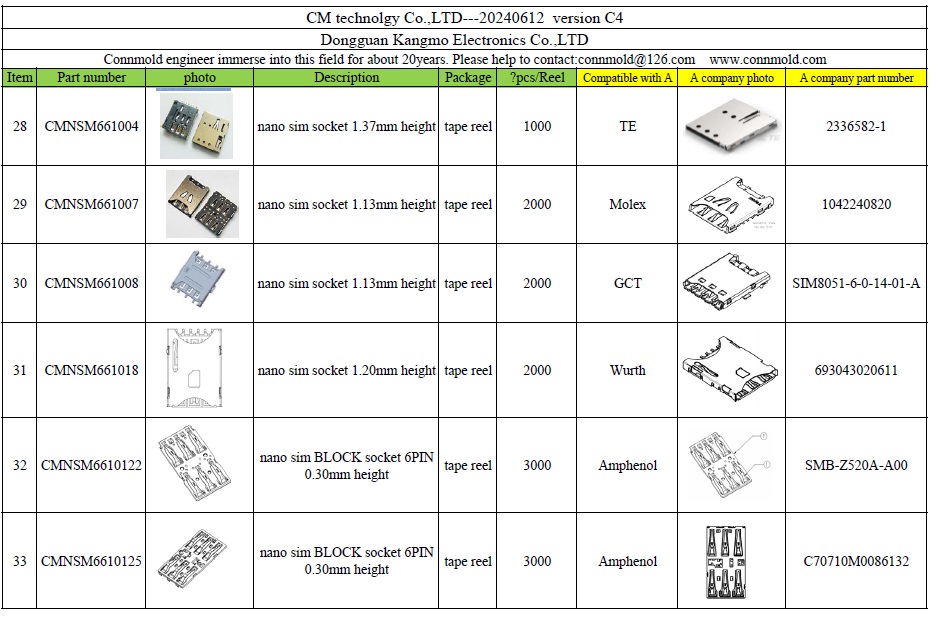

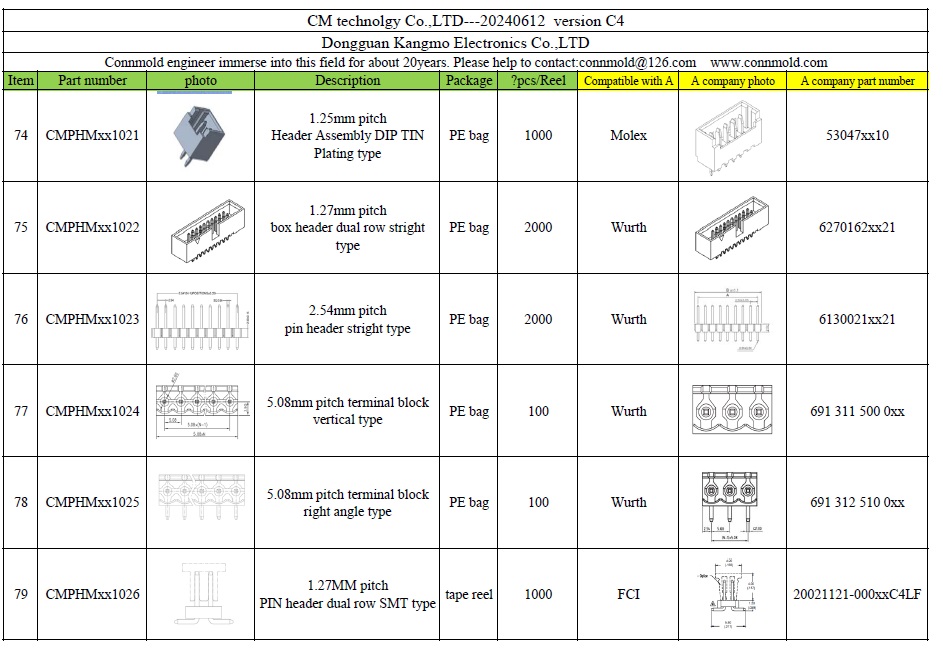

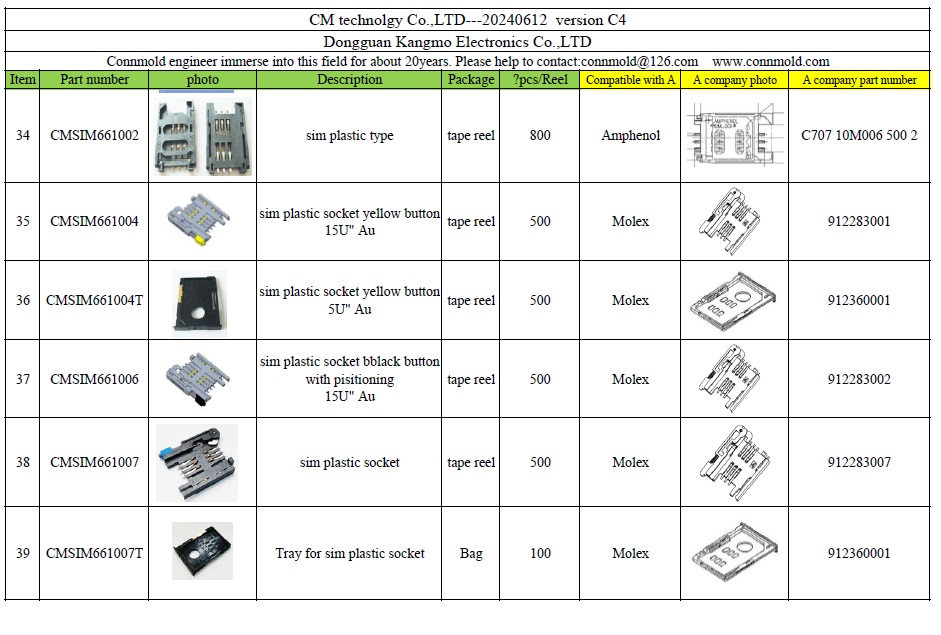

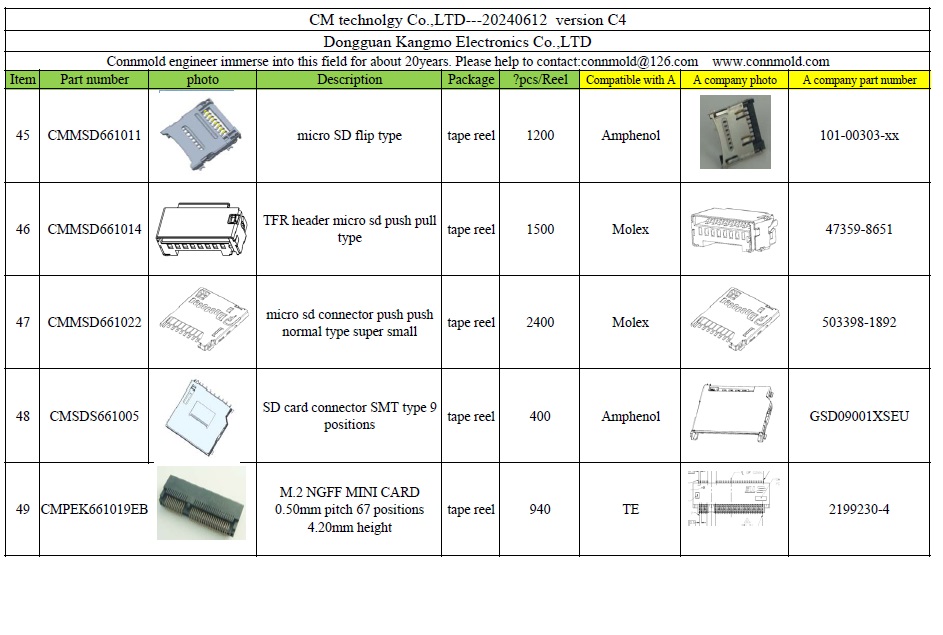

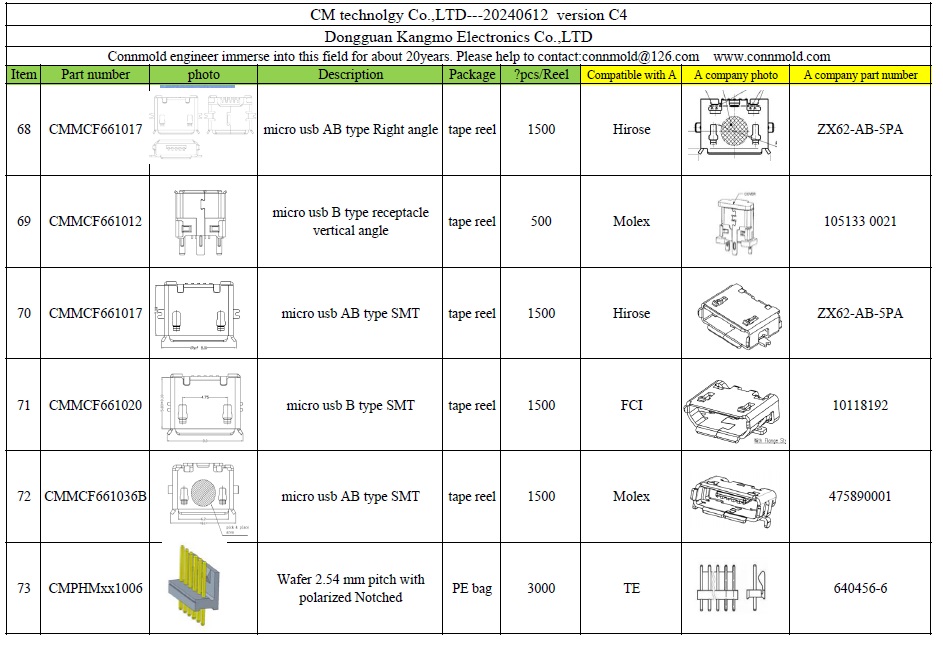

8.Other products you may like:
