2.for PCB thickness 1.00mm

3.tray pacakge, 100PCS/Tray, 2000PCS/Carton

4.Capacity is 6000pcs per day

5.Yes, it is usb type c receptacle clip type

6.other parameters:

No.	Items	Description
1	Overview	CMUCF661017A  USB TYPE C Receptacle 24 positions clip type ,total length 10.50mm
2	Circuits	24
3	Color	Black
4	Durability	10000
5	Gender	Female
6	Orientation	clip type
7	Material-Metal	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	flaming class	94 V-0
10	Mount type	clip PCB board 1.00mm
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 0.50 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	meet USB Type-C Cable and Connector Specification	yes
18	100% check function	yes
19	Current Rating	1.25 A
20	Contact resistance	30 mΩ max.
21	Insulation Resistance	100 MΩ min.
22	Dielectric withstanding voltage	100 V AC
23	Package	Tray package
24	tray dimension	30cm*20cm
25	how many per tray	100
26	how many per carton	2000 pieces
27	Easy for pick and place machine	yes
28	CAD	yes
29	3-D Model	yes
30	RoHS	yes
31	Quality is first	yes
32	free samples	can provide free samples

7.Its drawing is as below:

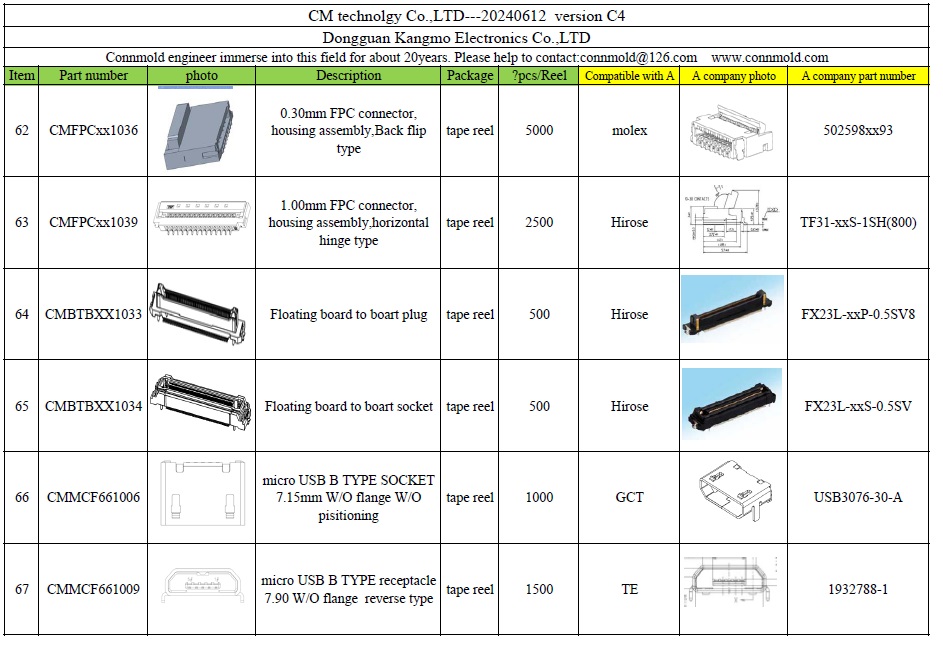

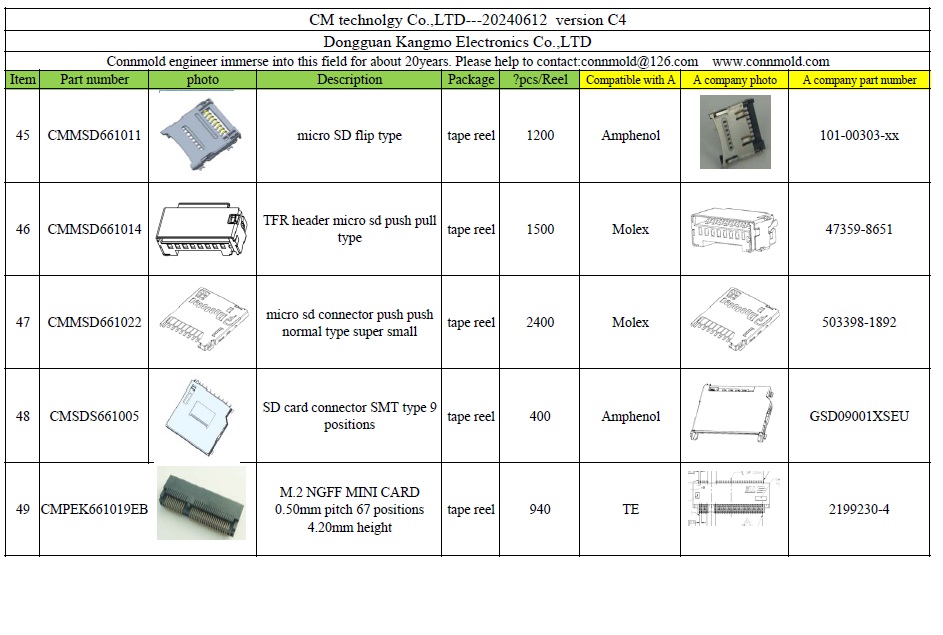

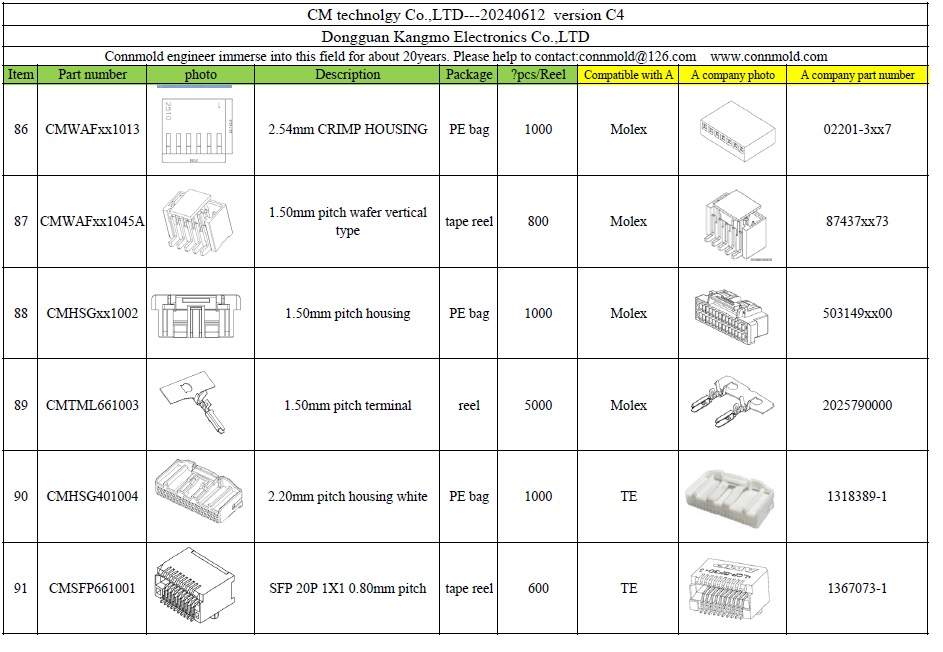

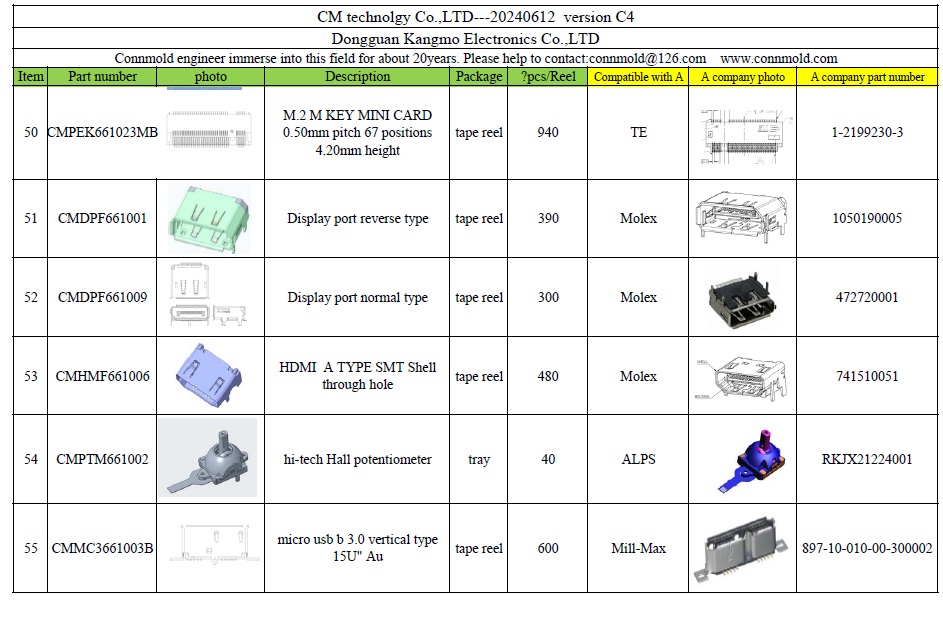

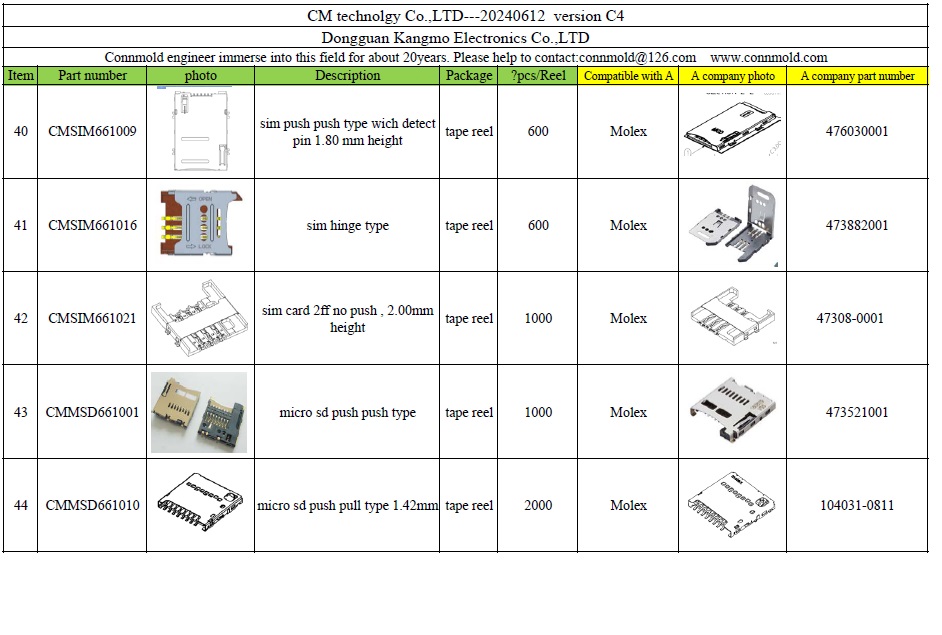

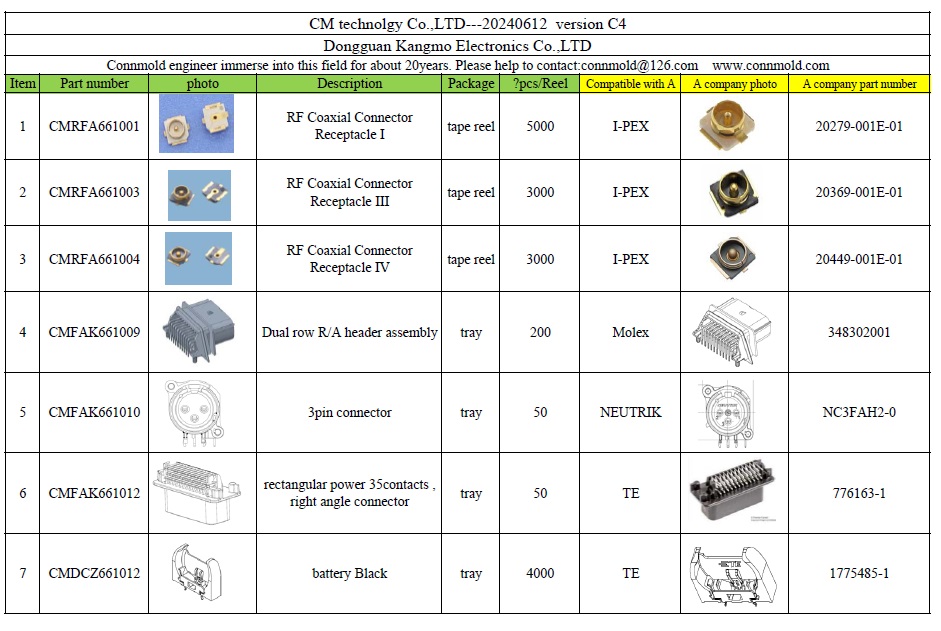

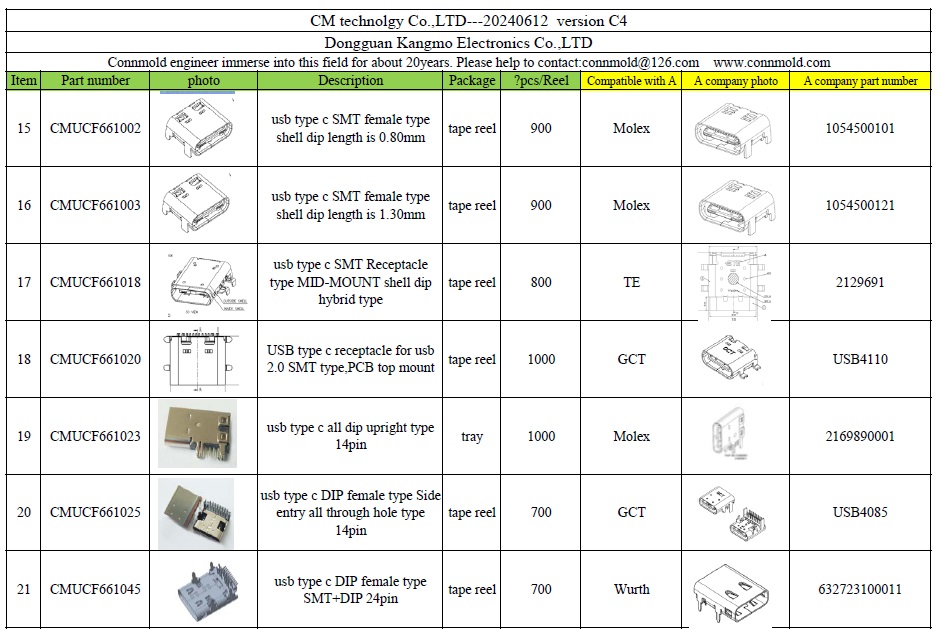

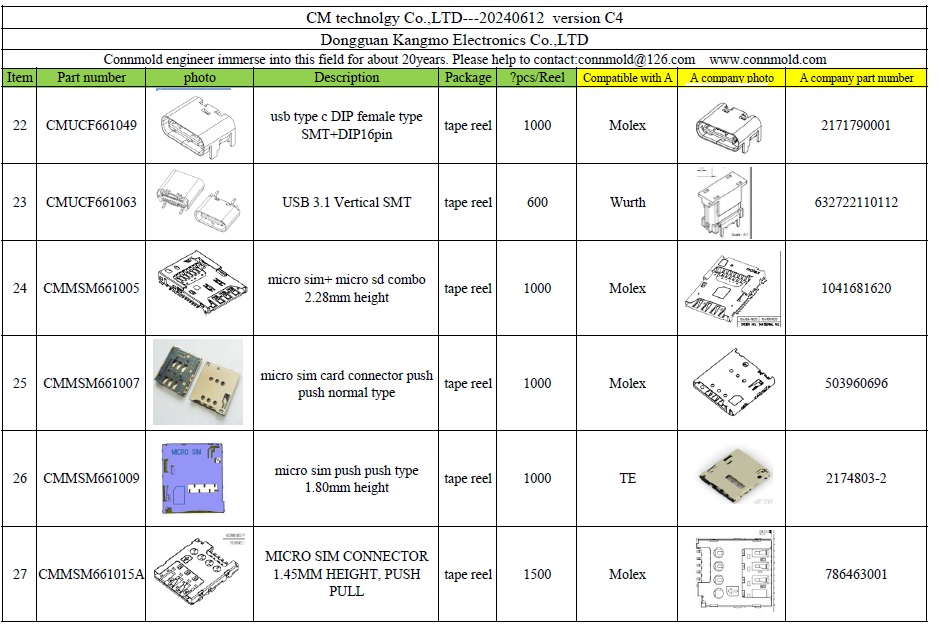

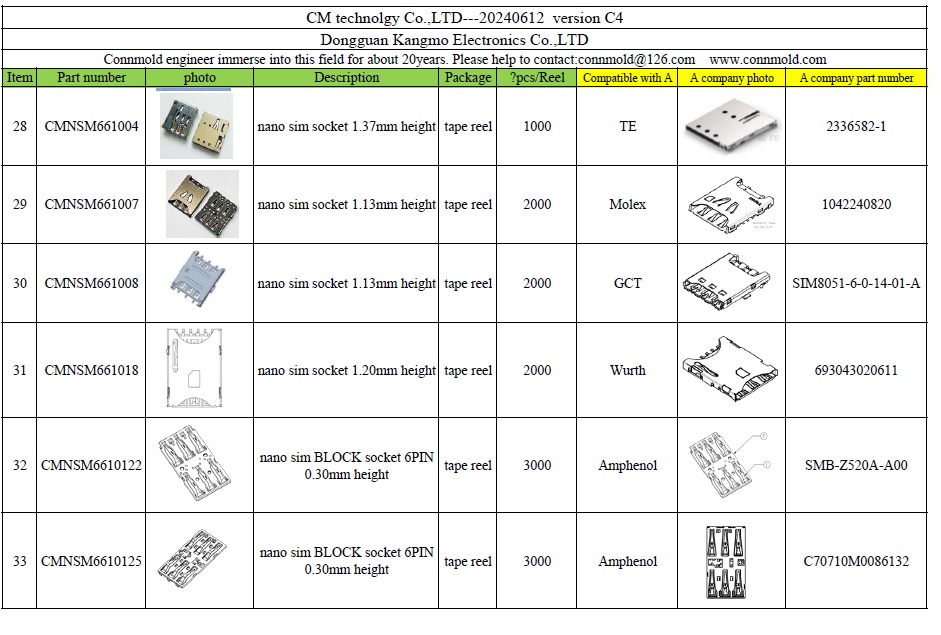

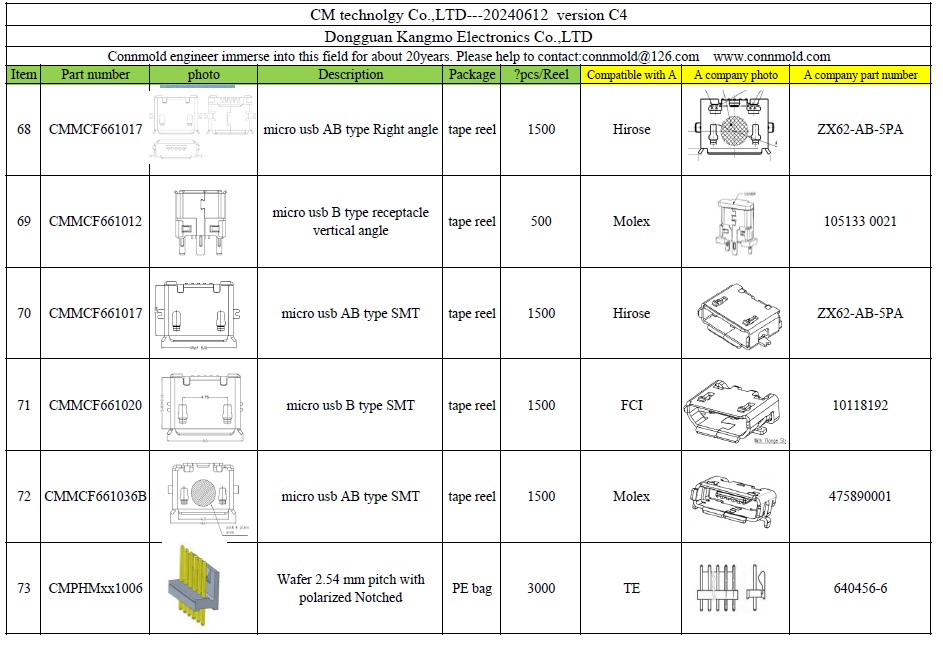

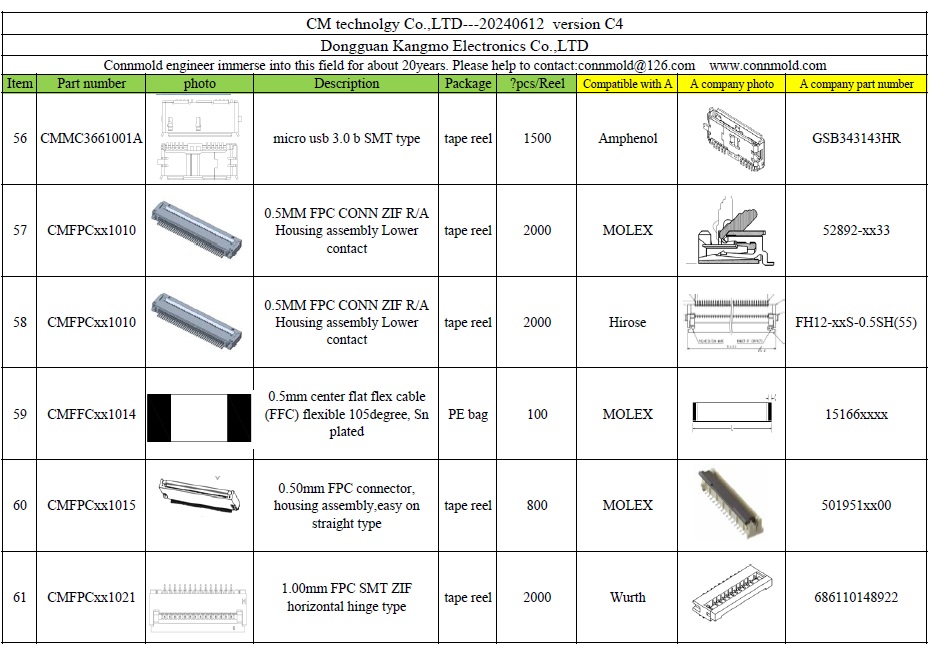

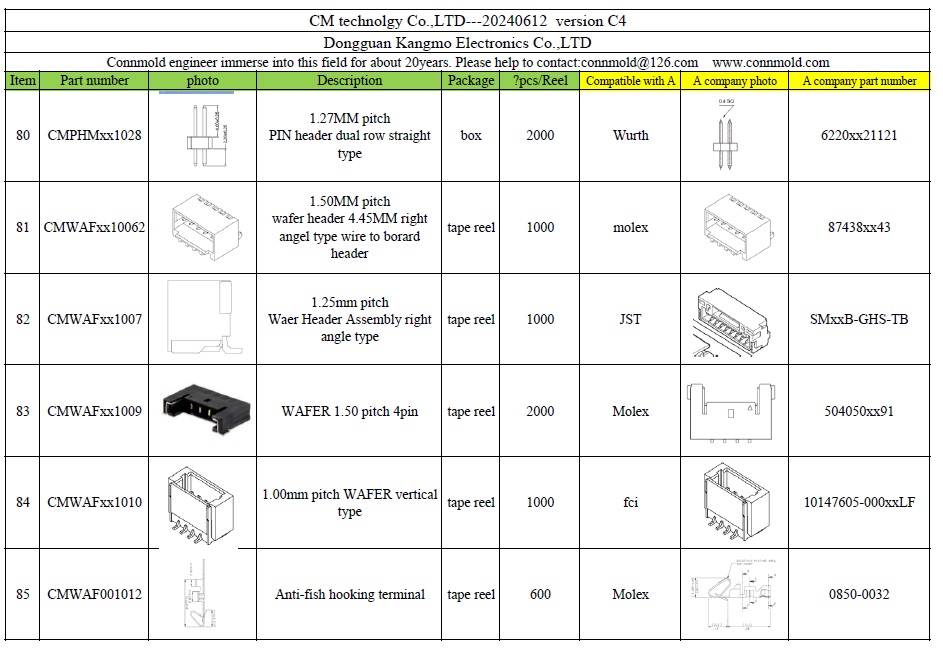

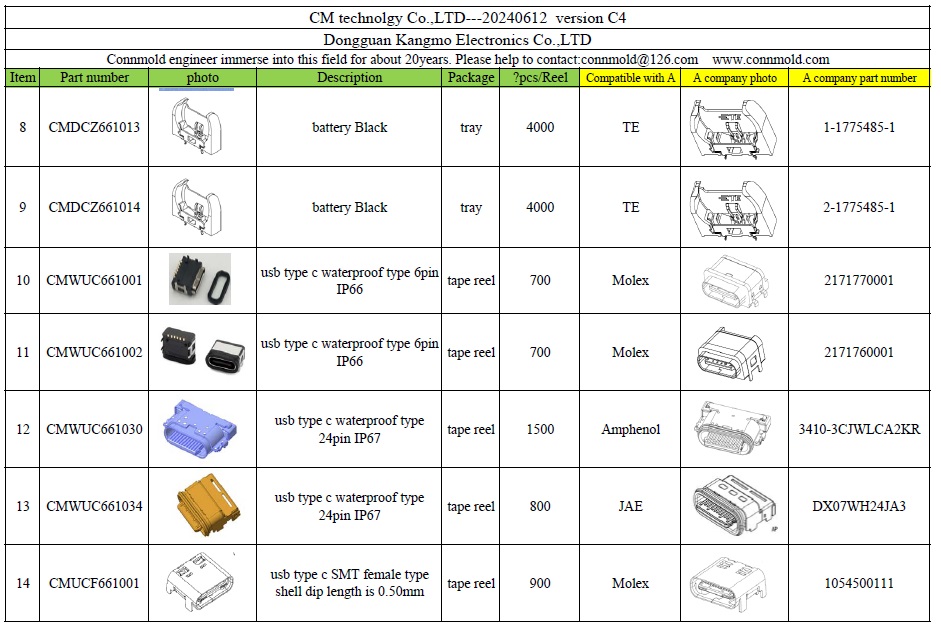

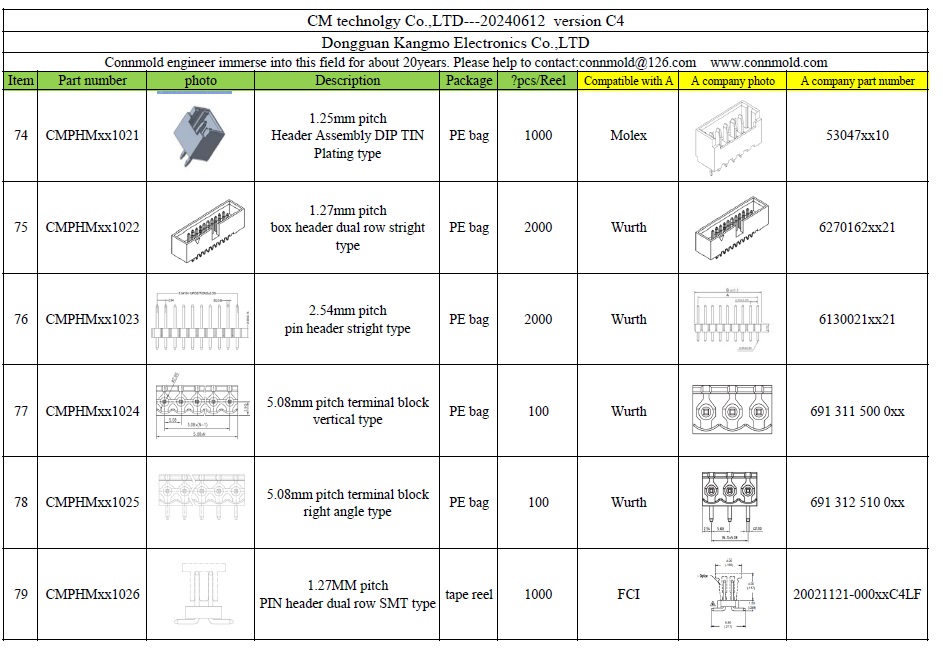

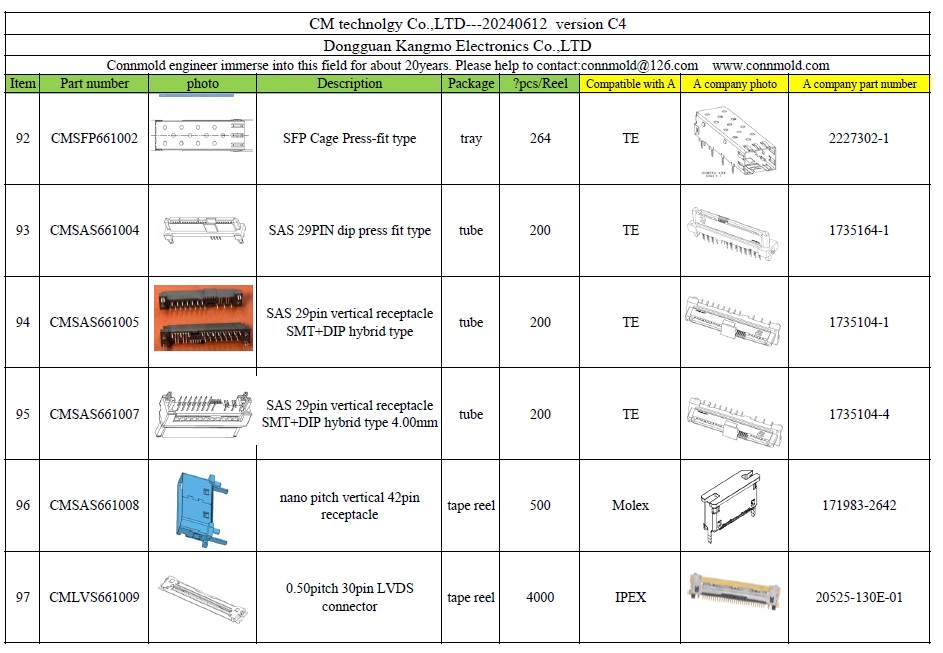

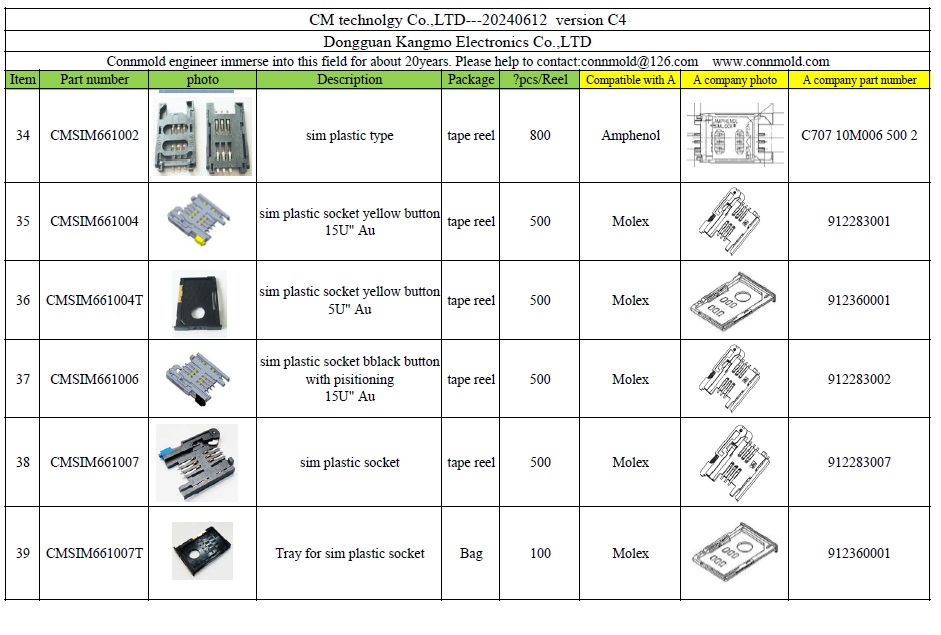

8.Our product you may like:
