Product Center - USB - USB TYPE C - 20241114 USB Shielded I/O Receptacle, Type C 24 pin, SMT type,Dual double shell,Gold (Au) Plating 10G
Product Details：
1.This is side entry product, 24pin usb type c receptacle
2.Rapid can be 10G
3.Part number is CMUCF661027
4.Other parameter are as below:
No. Items Description
1 Overview Universal Serial Bus (USB) Shielded I/O Receptacle, Type C 24 pin, SMT
type,  Gold (Au) Plating 10G
2 Circuits 24
3 Color resin Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type side entry
11 Panel Mount yes
12 Shield Type yes
13 Pitch termination 0.50mm
14 Pitch mating side 0.50 mm
15 PCB thickness 1.60 mm
16 Temperature range -40° to +105°C
17 rows 2 row
18 with locating peg no
19 Current Rating as usb type c specification
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package tape reel
24 lead free process temperature 255
25 how many per  reel 450 pieces
26 how many per carton 3600 pieces
27 solder tail plating Tin
28 CAD yes
29 3-D Model yes
30 RoHS yes






































5.Drawing datasheet is as below:

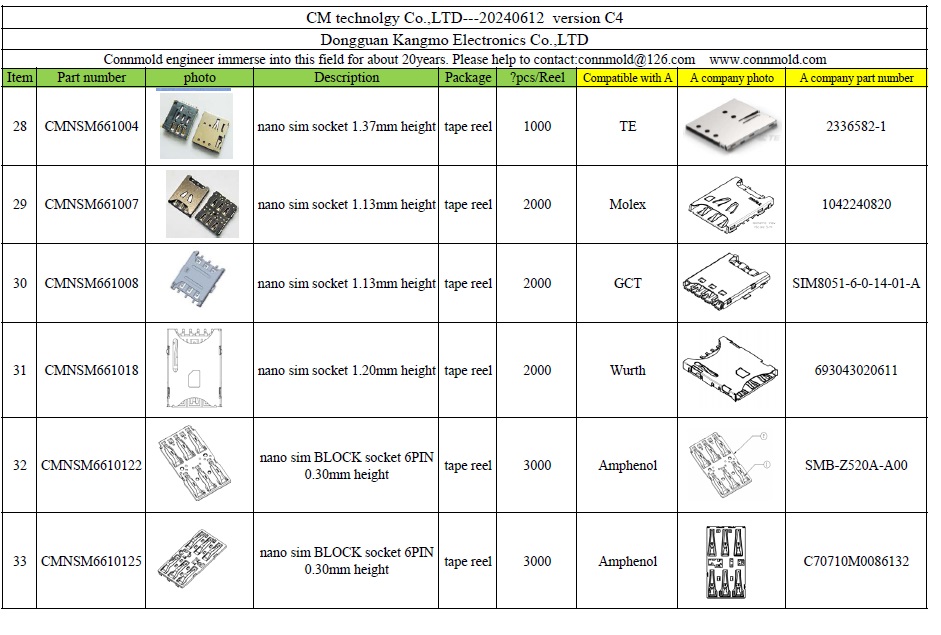

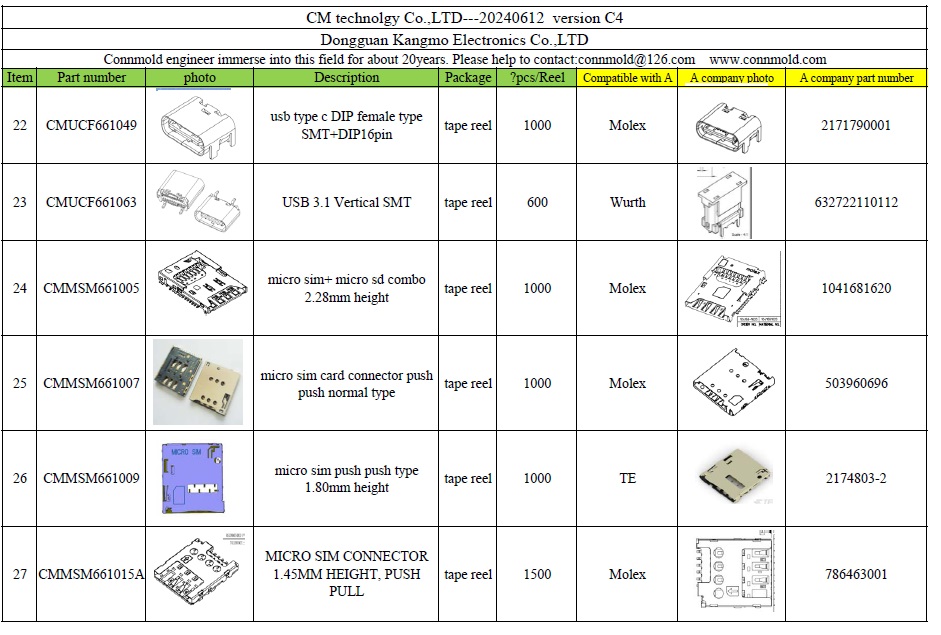

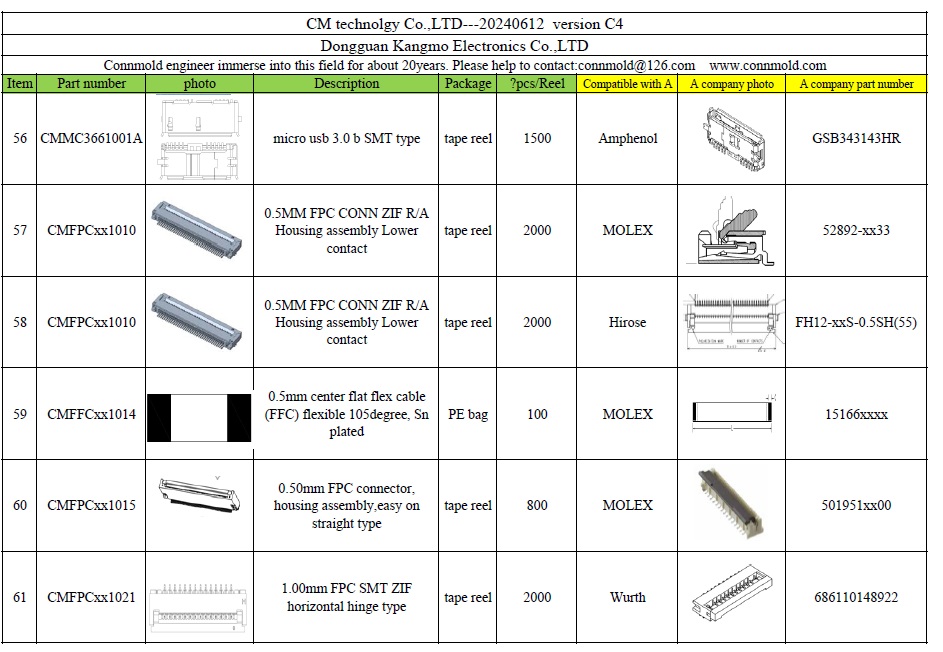

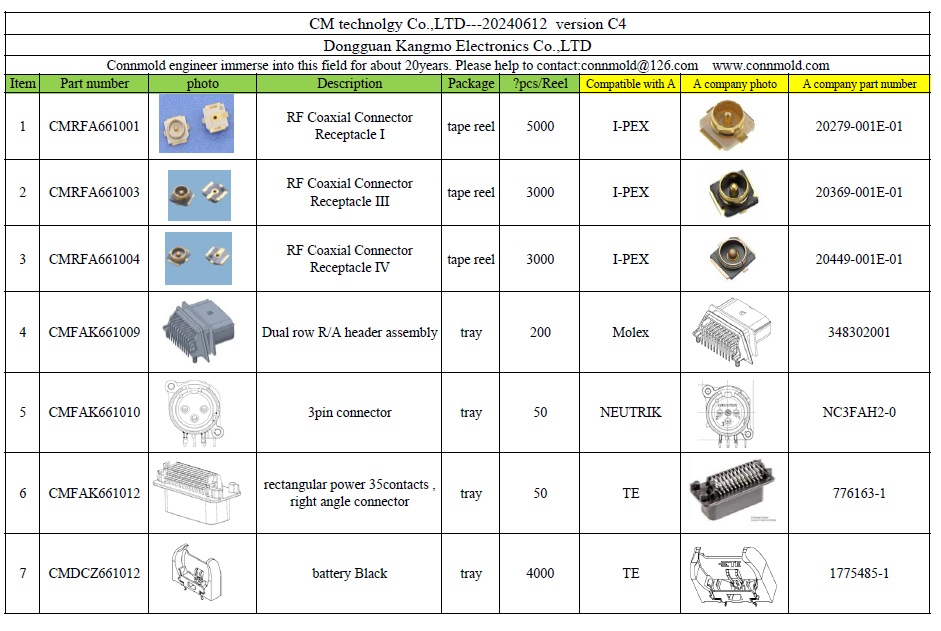

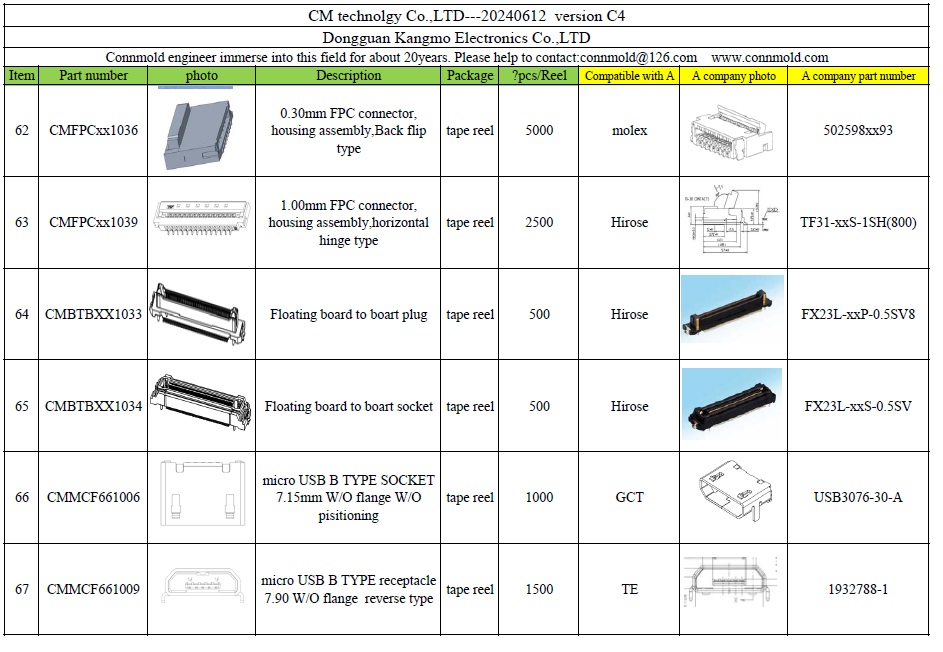

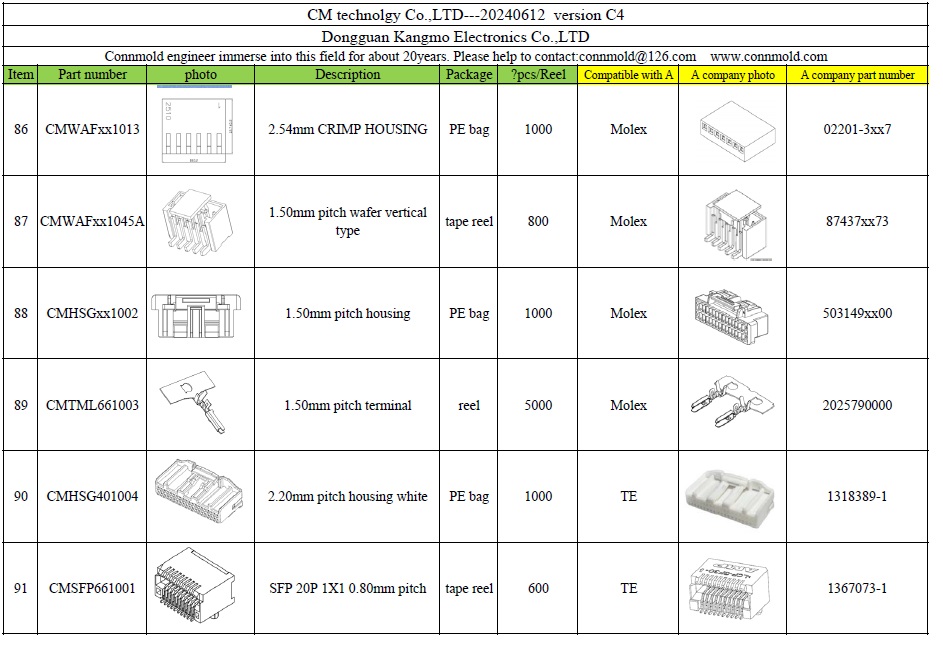

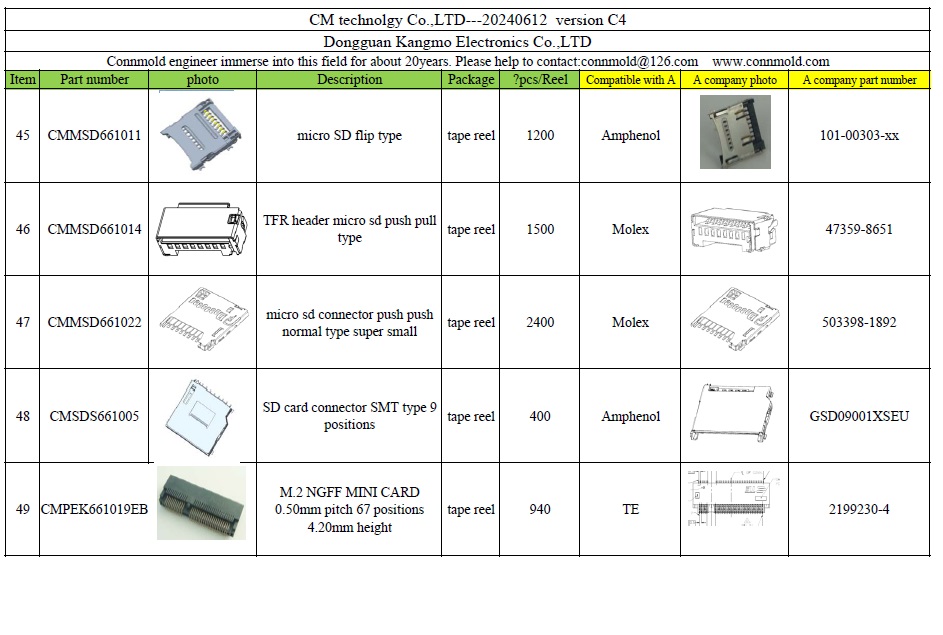

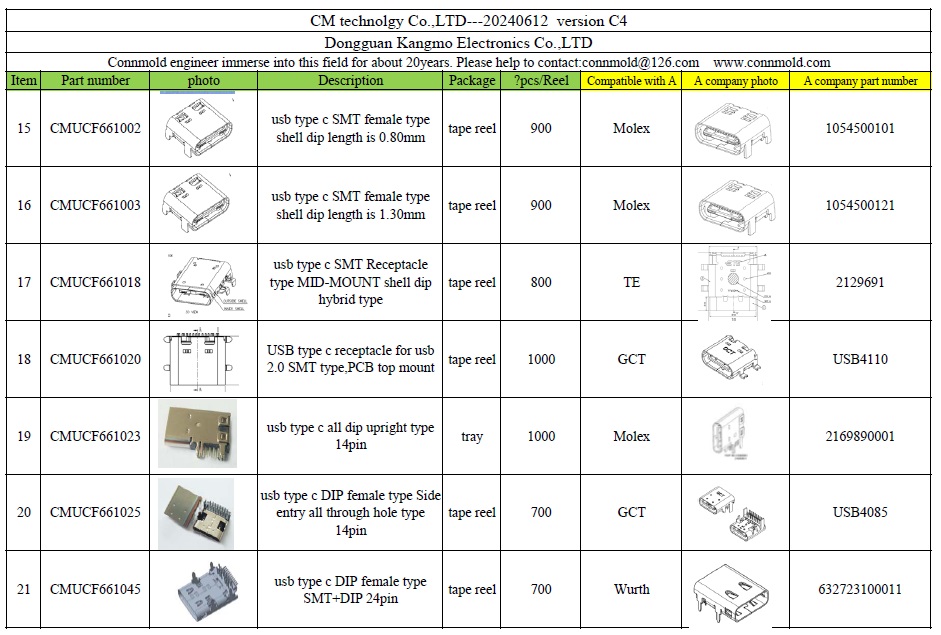

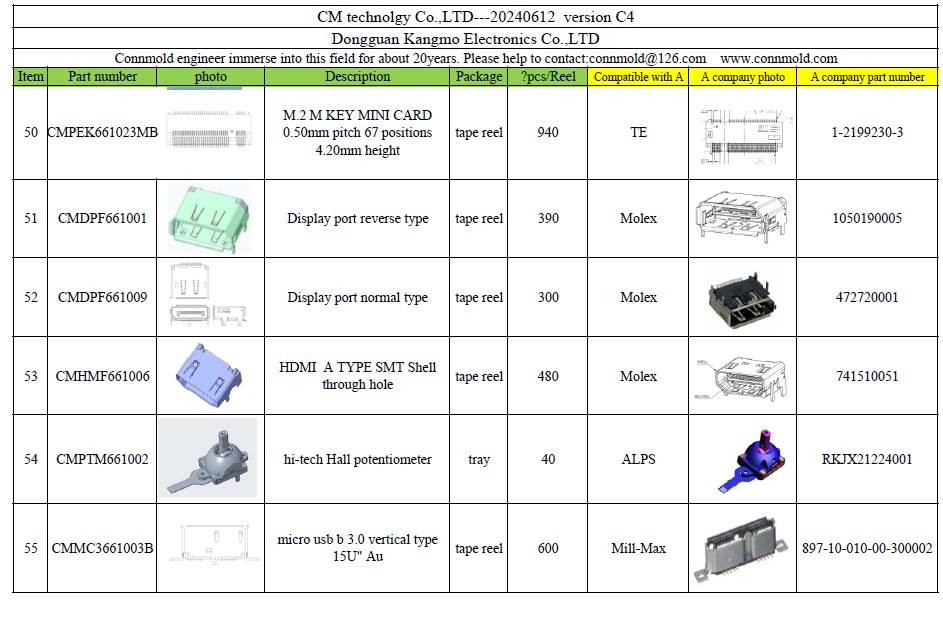

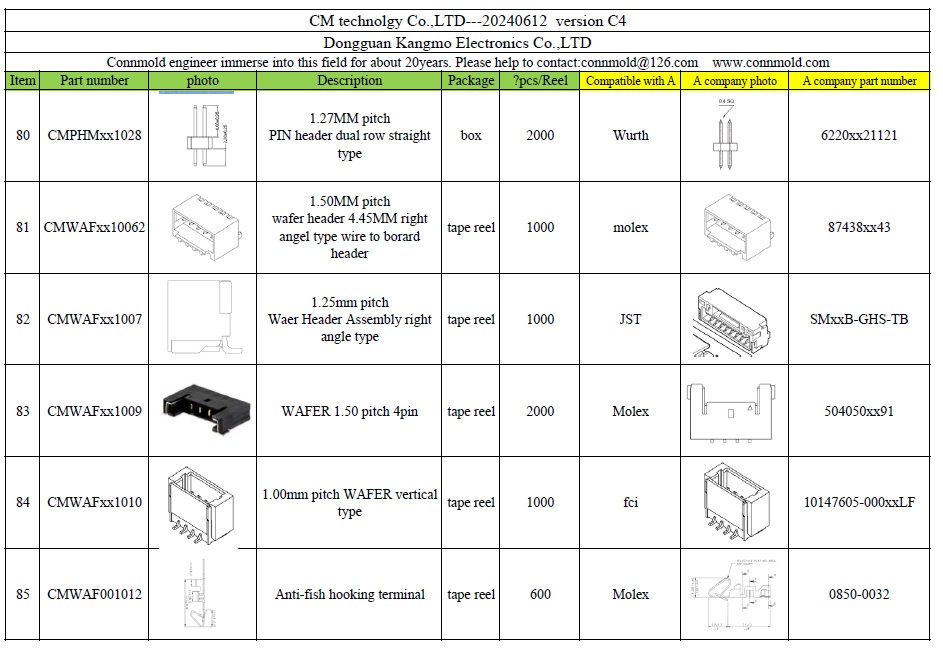

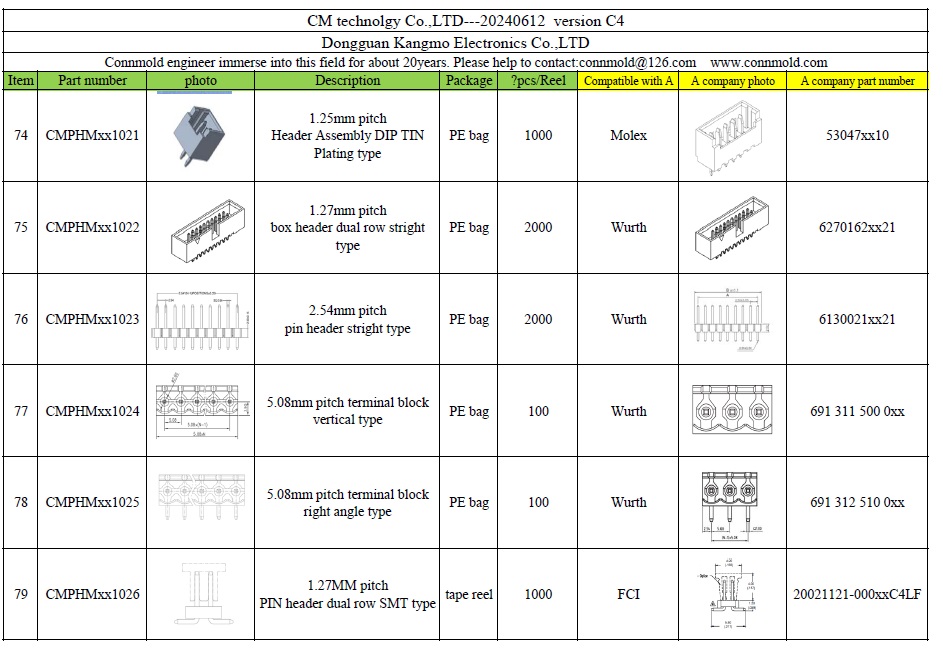

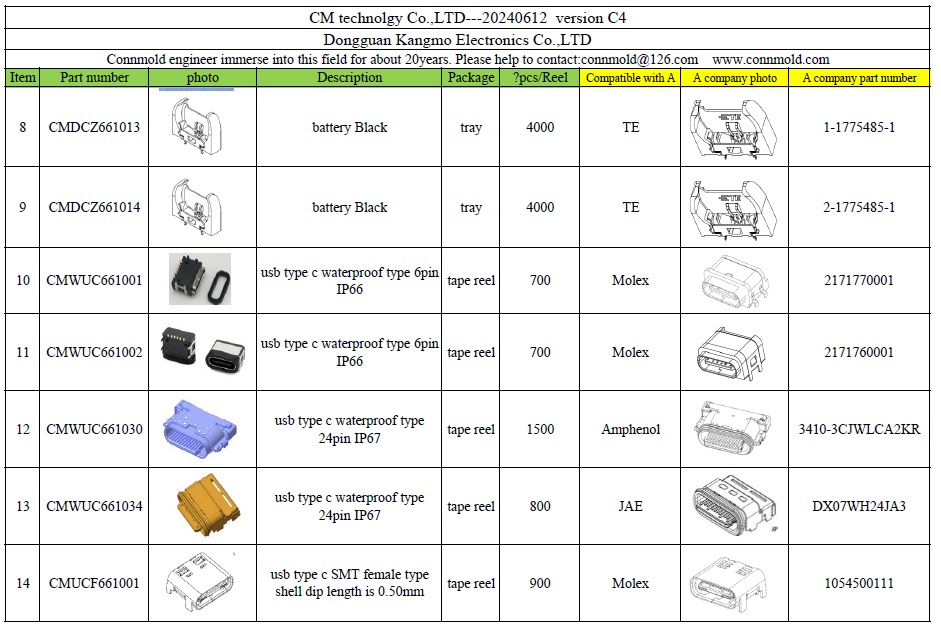

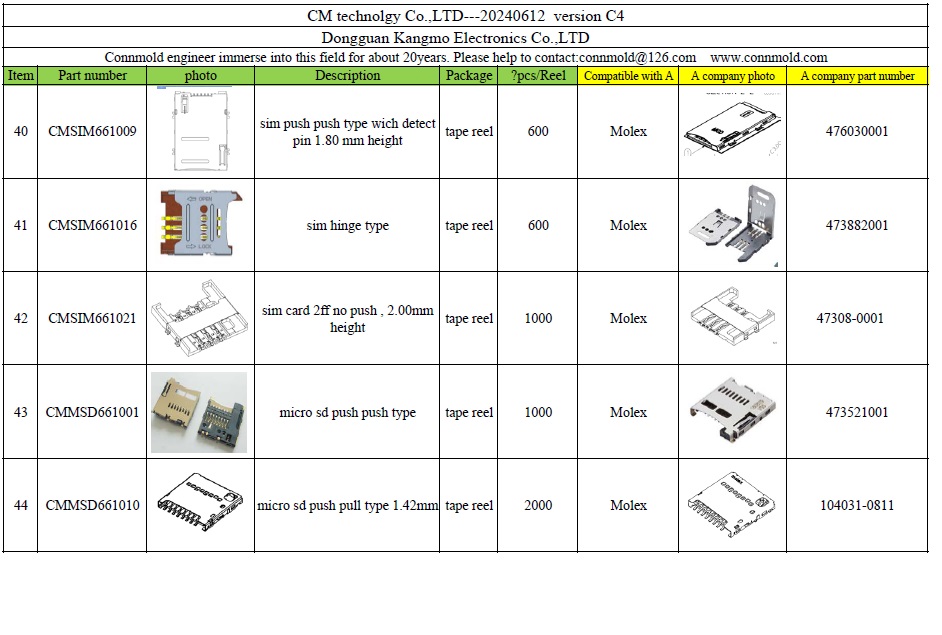

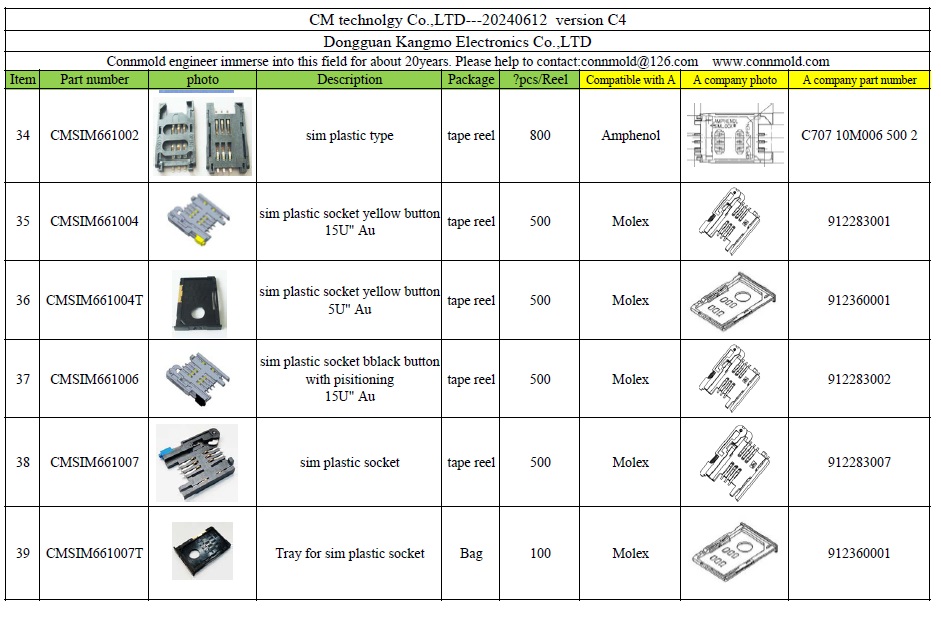

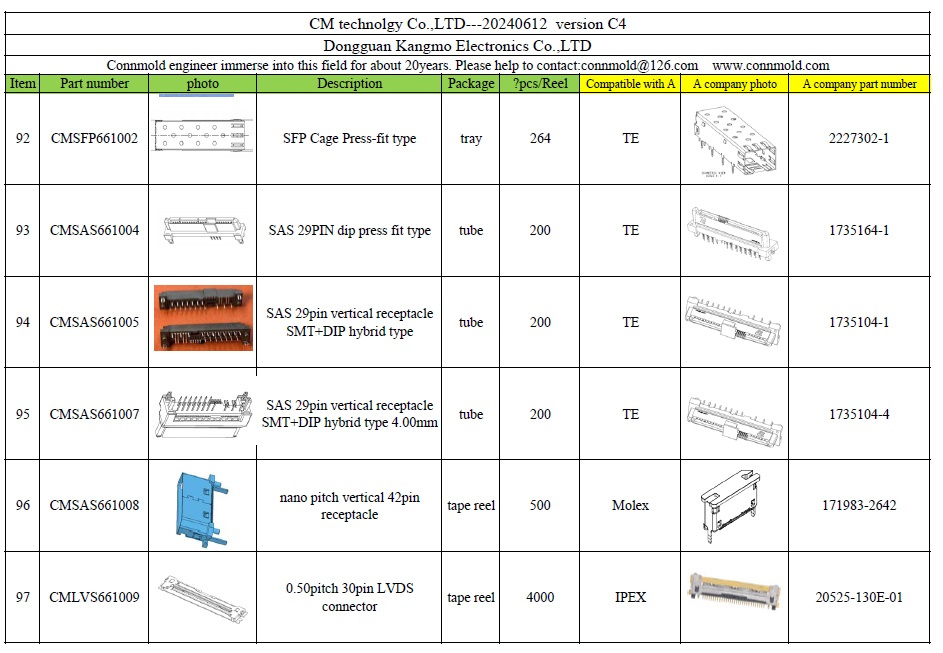

6.And we have some other products you may like as below:

7.Detail as below:
