Product Center - RJ SFP - SFP series - CMSFP661001 small form pluggable SFP 20 positions compatible with TE 1367073-1
Product Details：

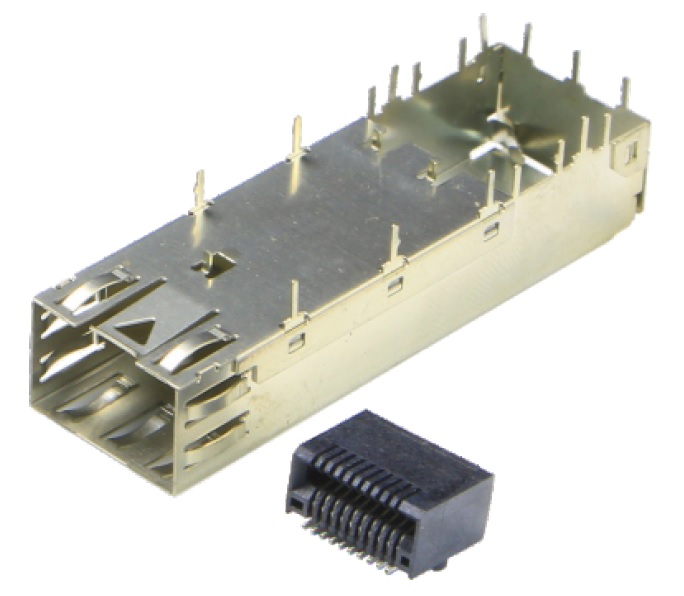

1. Mating product is as below:


2. Parameters:
No. Items Description
1 Overview PT CONNECTOR ASSEMBLY , 20 PIN, SFP,RTANG,0.8 mm,right angle
2 Circuits 20
3 Color Black
4 Durability 200
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type No
13 Pitch Mating Interface 0.80 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Flatness 0.10 mm max.
17 Temperature storage 85°C 2000 hours
18 Temperature storage -40° 72 hours
19 Voltage rating 3.14 V
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 600 pieces
26 how many per carton 6000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3 D Model yes
30 RoHS yes
31 Compatible with 1367073-1 same layout, same function, same quality

3.drawing is as below:
