Product Center - RJ SFP - SFP series - CMSFP661002 small form pluggable SFP single piece cage,press fit, compatible with TE 2227302-1
Product Details：

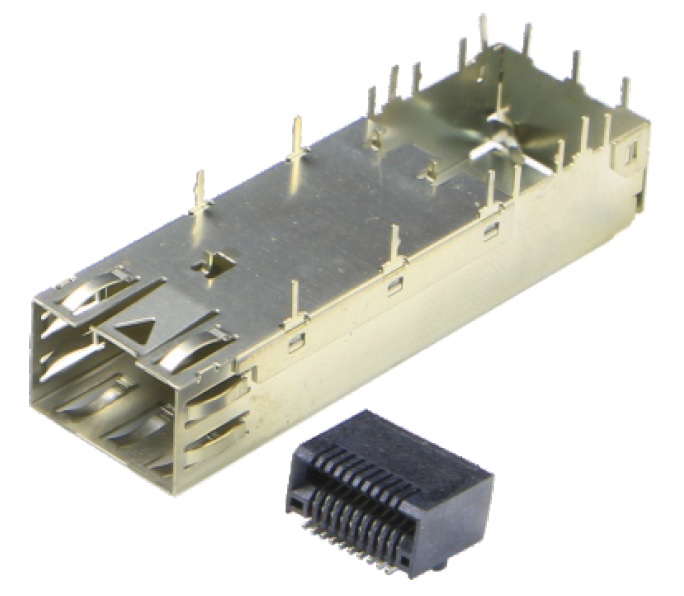

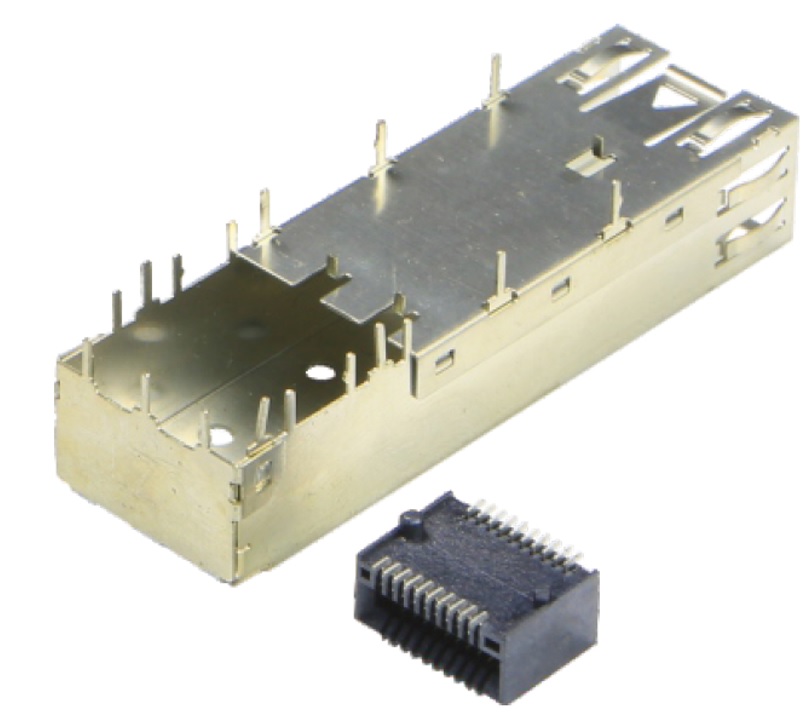

1.Its connector and cage as below:




2. parameters:
No. Items Description
1 Overview CMSPF661002 SFP  1 x 1 single piece cage press fit compatible with 2227302-1
2 Structure press fit
3 Color Nickel
4 Durability 200
5 Gender cage
6 Orientation Right angle
7 Material-Metal stainless steel
8 Material-Plating Nickel
9 UL class 94 V-0
10 Mount type top-mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.80 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 type through hole
18 mate with  CMSPF661001
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package tray
25 how many per tray 12 pieces
26 how many per carton 264 pieces
27 Easy for pick and place machine No
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 Compatible with 2227302-1 same layout, same function, same quality

3. drawing of bezel suggestion and PCB layout
