Product Center - card connector - 4FF sim conn - CMNSM661006 combo 3 in 1 nano sim + nano sim or micro sd type other name 111735
Product Details：

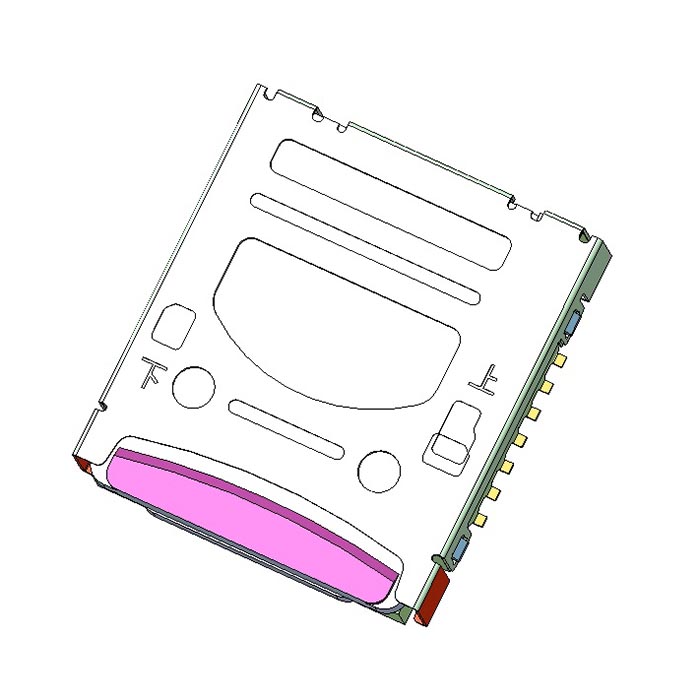

1. Top view:

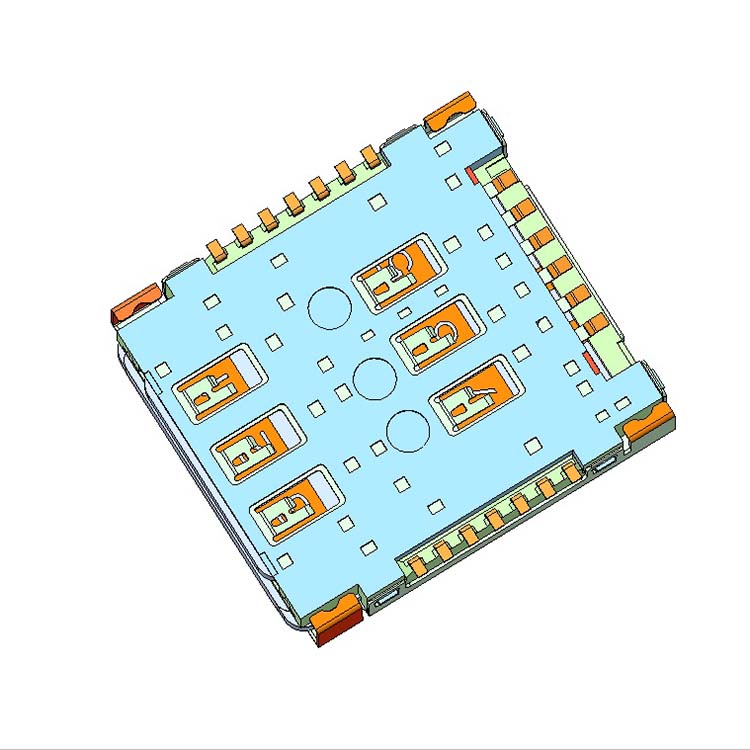

2.Bottom view:


3.Parameters
No. Items Description
1 Overview Nano sim + micro sd connector or nano sim + nano sim connector 2.50 mm height
2 Circuits 20
3 Color resin Black
4 Durability 3000
5 Gender Socket
6 Orientation Right angle
7 Material-contact copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 Flammability class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch PCB side: 1.05 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 push function yes
18 card detect switch no
19 Current Rating 0.5 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1000 pieces
26 how many per carton 10000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 Combo type yes

4.Drawing:
