Product Center - card connector - 4FF sim conn - CMNSM661012 nano sim 4FF push push type smallest 1.25 mm height
Product Details：

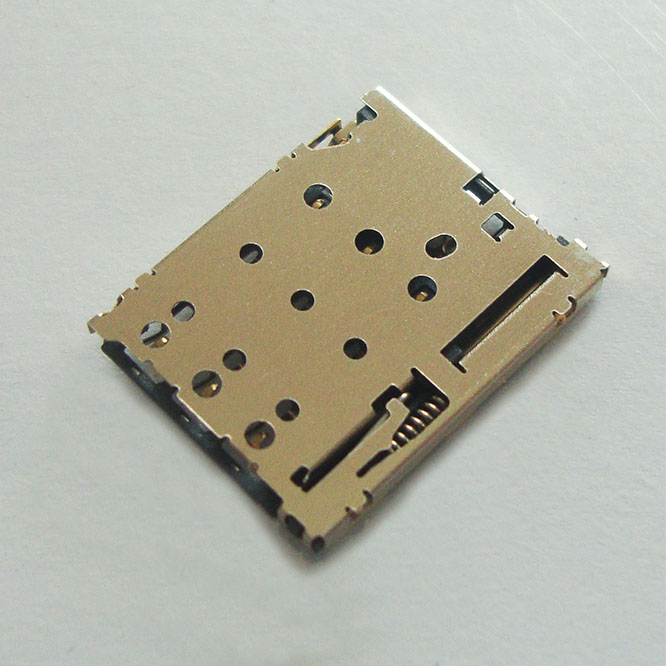

1.Top view is:

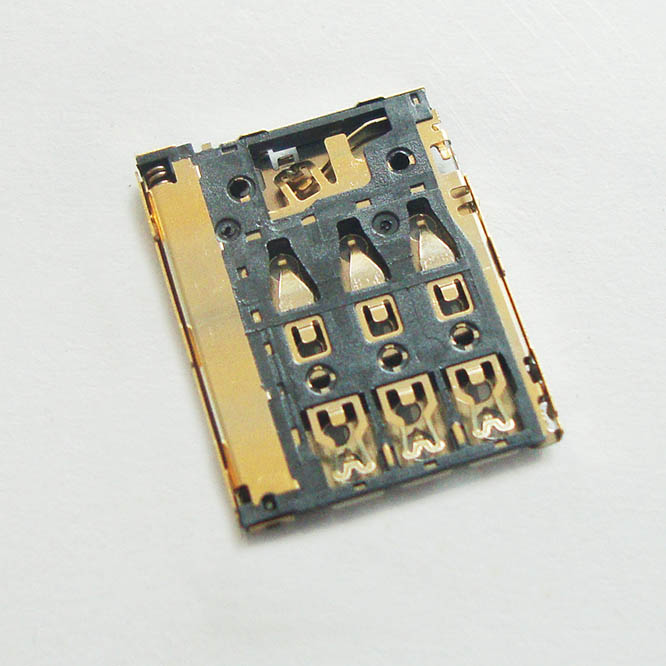

2.Bottom view:


3.Parameters:
No. Items Description
1 Overview smallest nano sim push type 1.25 mm height
2 Circuits 6
3 Color resin Black
4 Durability 3000
5 Gender Socket
6 Orientation Right angle
7 Material-contact copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 Flammability class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch mating side: 2.54 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 height 1.25 mm
18 card detect switch yes
19 Current Rating 0.5 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 2000 pieces
26 how many per carton 20000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 stable quality yes

4.Drawing:
