Product Center - card connector - 4FF sim conn - CMNSM661005 4FF Nano sim push push type 1.35 mm height with detect switch compatible with TE 2336582-1

Product Details：

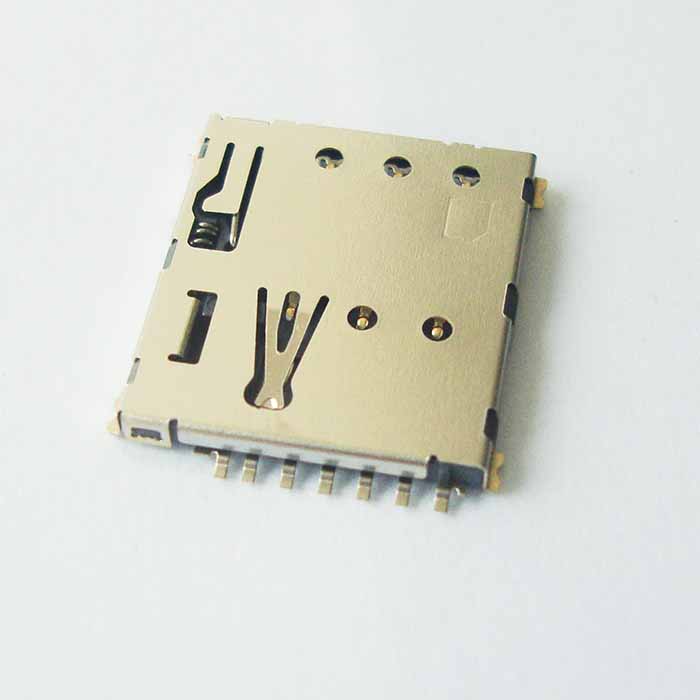

1. Top view:

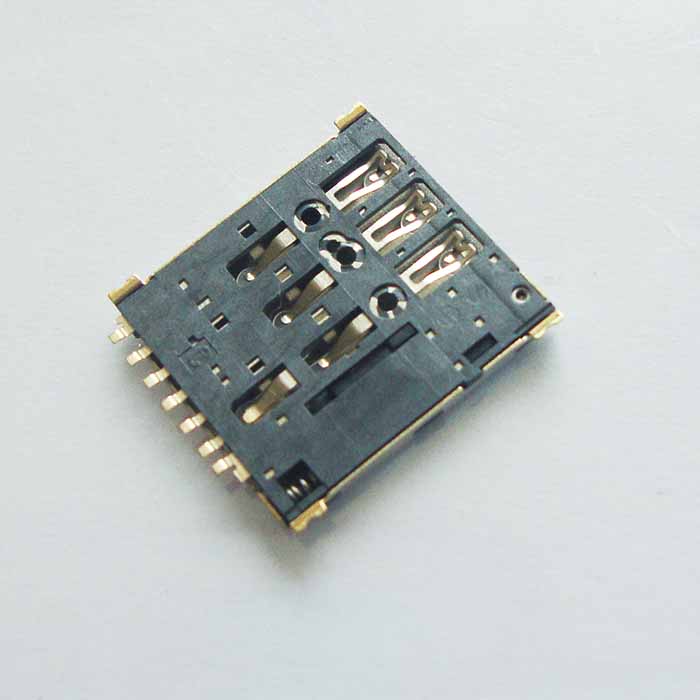

2. Bottom view:

3.Parameters

No.	Items	Description
1	Overview	4FF nano sim compatible card with detect switch without post
2	Circuits	6
3	Color resin	Black
4	Durability	5000
5	Gender	Socket
6	Orientation	Right angle
7	Material-contact	copper alloy
8	Material-Housing	Liquid Crystal polymer LCP
9	Flammability class	94 V-0
10	Mount type	top mount
11	Panel Mount	yes
12	Shield Type	yes
13	Pitch	Mating Interface 1.27 mm
14	Surface Mount Compatible	yes
15	Temperature range	-40° to +85°C
16	Coplanarity	0.10 mm max.
17	push function	yes
18	card detect switch	normal open
19	Current Rating	0.5 A
20	Contact resistance	30 mΩ max.
21	Insulation Resistance	100 MΩ min.
22	Dielectric withstanding voltage	100 V AC
23	Package	Embossed Tape and Reel
24	Reel dimension	13 inch
25	how many per reel	1000 pieces
26	how many per carton	10000 pieces
27	Easy for pick and place machine	yes
28	CAD	yes
29	3-D Model	yes
30	RoHS	yes
31	compatible to	TE 2336582-1

4.Drawing:

CMNSM661005.pdf
