Product Center - card connector - 2FF sim conn - CMSIM661001 Stable quality 2FF sim + micro sd combo card connector
Product Details：

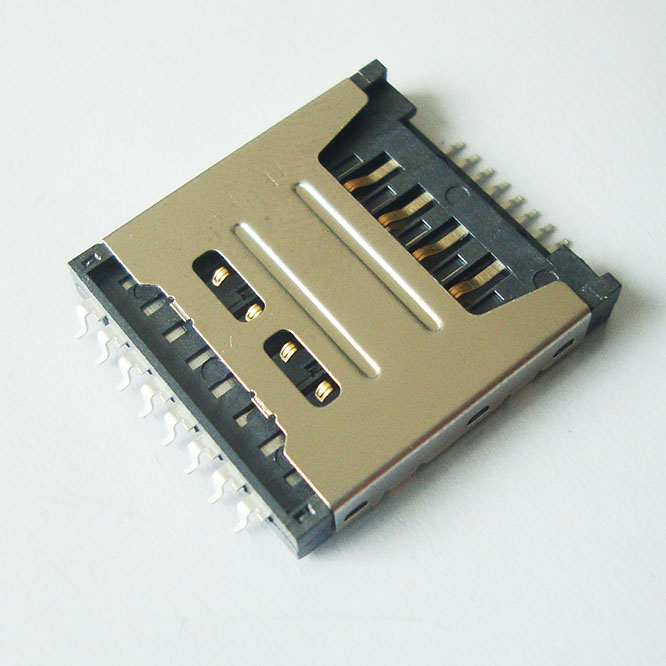

1.Top view:

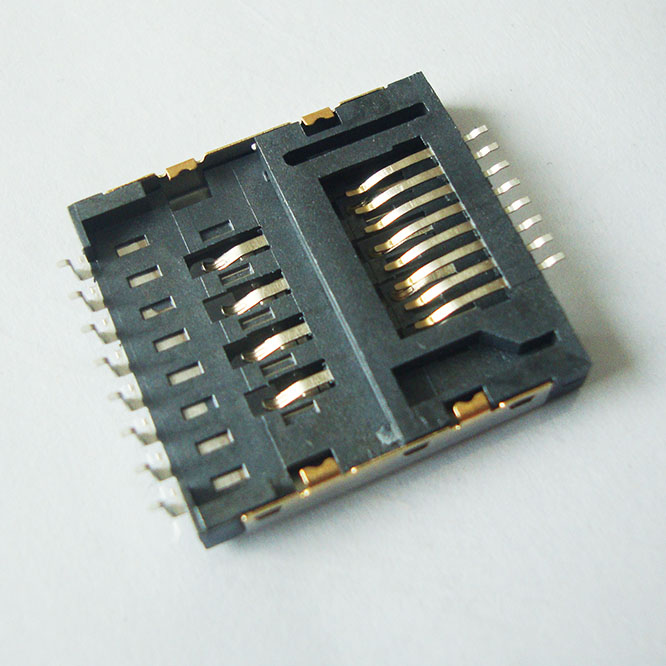

2.Bottom view:


3.Parameters
No. Items Description
1 Overview 2FF sim + micro sd combo card connector
2 Circuits 16
3 Color Black
4 mating cycle 5000
5 Gender Female
6 number of contacts 16
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 Flame class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch sim 1.80 mm , micro sd 1.10 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 combo type yes
18 card detect function No
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 600 pieces
26 how many per carton 3600 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 push function No

4.drawing:
