Product Center - card connector - 2FF sim conn - CMSIM661007 2.54 MM Pitch sim card holder with ejector, vertical fascia 912283007 912360001
Product Details：

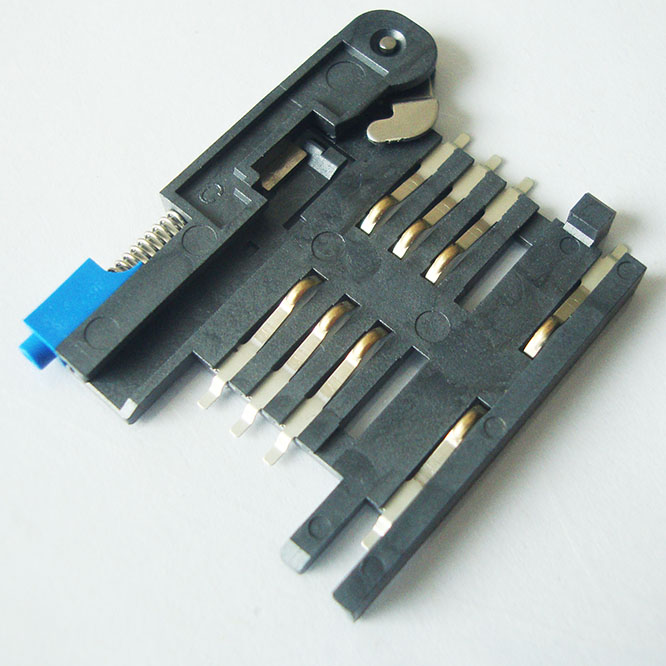

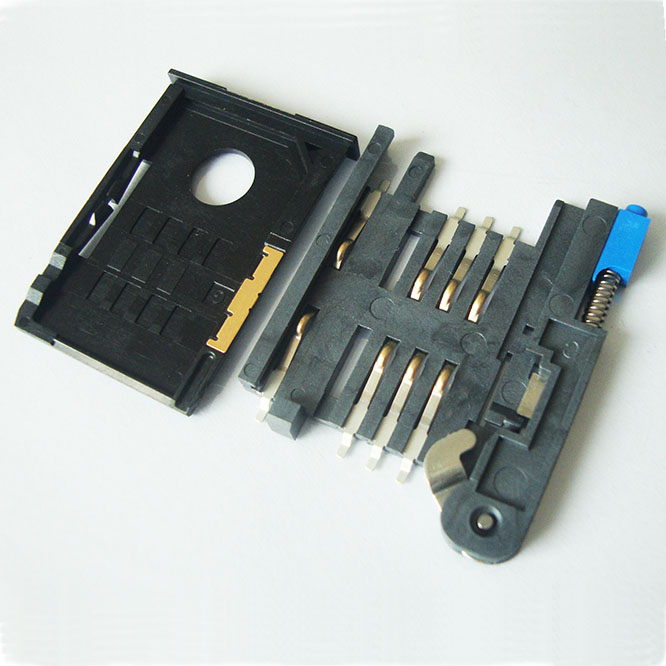

1.connector view:

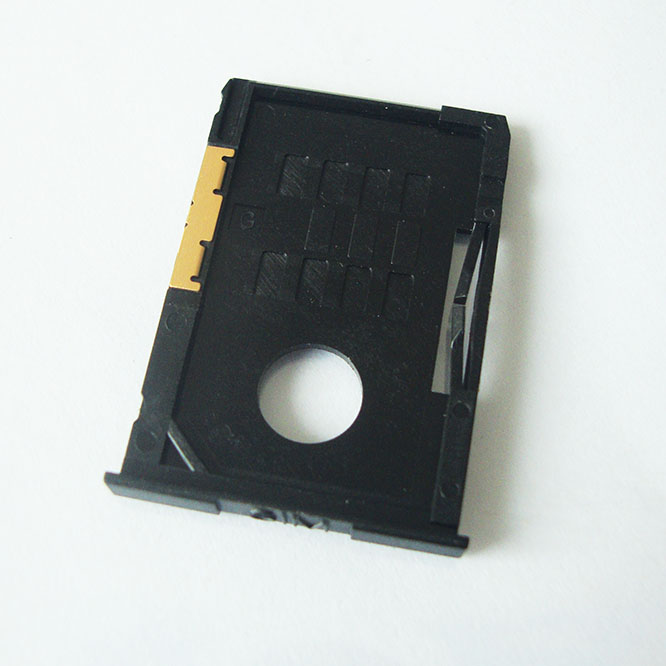

2.plastic card holder view:



3.Parameters
No. Items Description
1 Overview 2.54 MM Pitch sim card holder with ejector, vertical fascia
2 Circuits 600 pieces
3 Color Black
4 mating cycle 5000
5 Gender Female
6 number of contacts 6
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 Flame class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch 2.54 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 tray type yes
18 card detect function No
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 500 pieces
26 how many per carton 2000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with 912360001 compatible with 912283007


4.Drawing:
