Product Center - USB - USB TYPE C - CMUCF661023 Universal Serial Bus (USB) Type C, Upright, Through Hole, Straight Tab and Clip, Dual Row, 14 Circuits, Gold (Au) Plating
Product Details:

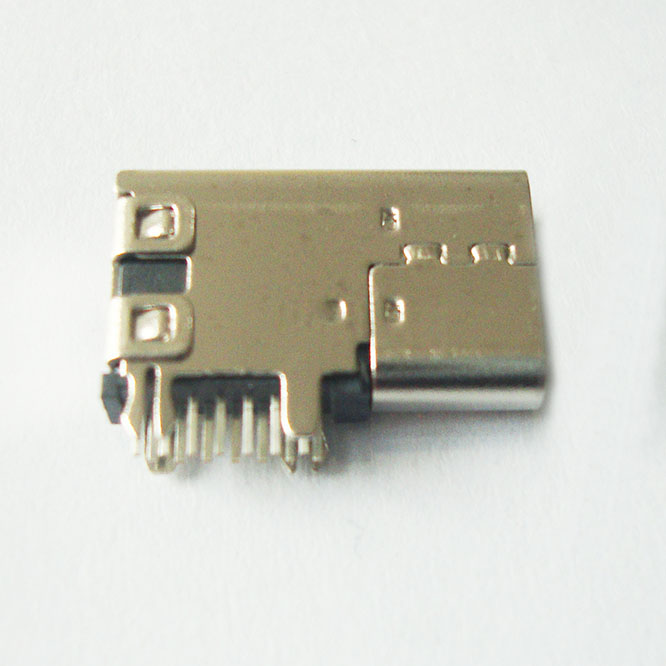

1.photo:


2.Parameter:

No. Items Description
1 Overview Universal Serial Bus (USB) Type C, Upright, Through Hole,
Straight Tab and Clip, Dual Row, 14 Circuits, Gold (Au) Plating
2 Circuits 14
3 Color resin Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type through hole type
11 Panel Mount yes
12 Shield Type yes
13 Pitch termination 0.90 mm
14 Pitch mating side 0.50 mm
15 PCB thickness 1.60 mm
16 Temperature range -40° to +105°C
17 rows 2 row
18 card detect function yes
19 Current Rating as usb type c specification
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package tray
24 lead free process temperature 255
25 how many per tray 100 pieces
26 how many per carton 2000 pieces
27 solder tail plating Tin
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with compatible with molex 2169890001
32 compatible with compatible with 2UBF04-121211-103T


3.drawing:
