Product Center - USB - USB TYPE C waterproof - CMWUC661002 Waterproof usb type c compatible with molex 2171760001
Product Details：
1. This one is compatible with molex 2171760001

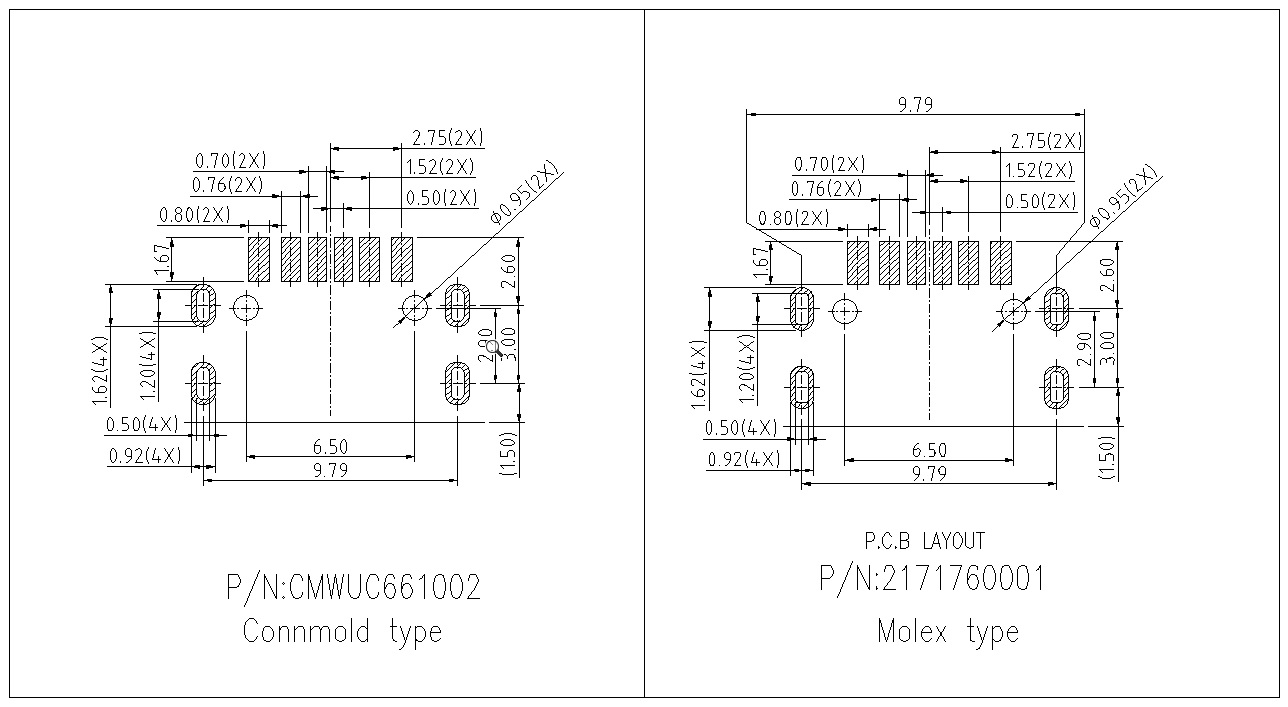

2. Their PCB layout comparison is as below:


3. Other parameters are as below:
No. Items Description
1 Overview USB shielded I/O Receptacle,Type C,Right Angle, Surface Mount, Top type,Waterproof IP x6, 6 circuits, Gold plating
2 Circuits 6
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.50 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Flatness 0.10 mm max.
17 Waterproof / Dust proof yes
18 Waterproof / Dust proof Type IP x6
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 700 pieces
26 how many per carton 7000 Pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 Compatible with 2171760001 same layout, same function, same quality

4. Drawing is as below:
