Product Center - card connector - 3FF sim conn - 20240722 micro sim 3FF card connector push pull normal shortest type
Product Details：
1.This is 3FF micro sim push pull type ,
2.Packed by tape reel , 1000PCS/Reel
3.It is on mass production, and capacity is 10000PCS per day
4.Some people call it as no push type too
5.Other parameters:
No. Items Description
1 Overview micro sim card connector push pull normal shortest  type
2 Circuits 6
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 2.54 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 push function yes
18 card detect function yes
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1000 pieces
26 how many per carton 10000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes

6.Drawing:

7.Our other product which you may like:


8.Summarize it as below:

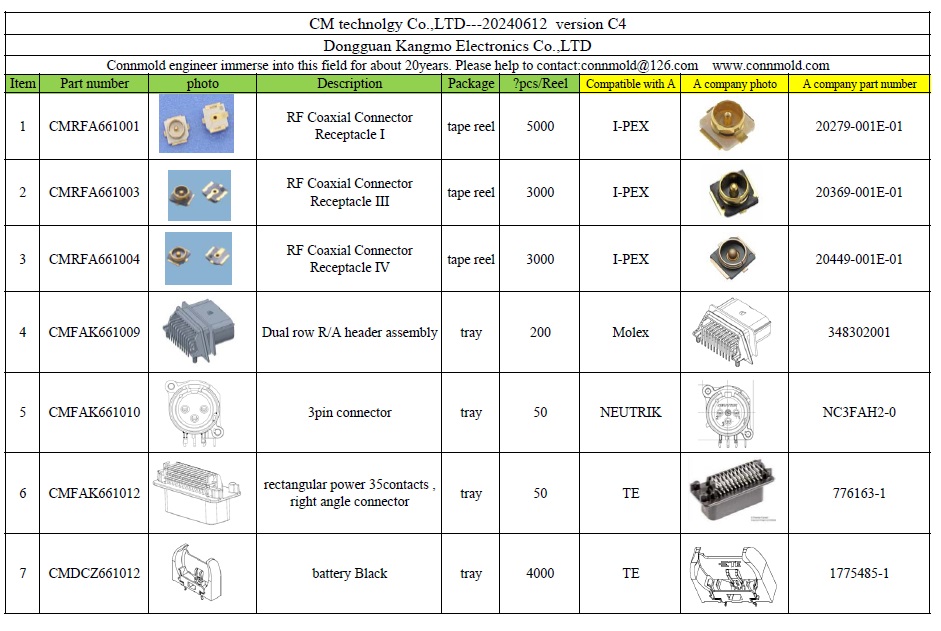

RF connector:

1. our part number CMRFA661001 can replace (compatible) IPEX 20279-001E-01

2. our part number CMRFA661003 can replace (compatible)  IPEX 20369-001E-01

3. our part number CMRFA661004 can replace (compatible)  IPEX 20449-001E-01



Fakra:

1.      our part number CMFKA661009 can replace (compatible)  Molex 348302001

2.      our part number CMFKA661010 can replace (compatible)  NEUTRIK NC3FAH2-0

3.      our part number CMFKA661012 can replace (compatible)  TE 776163-1

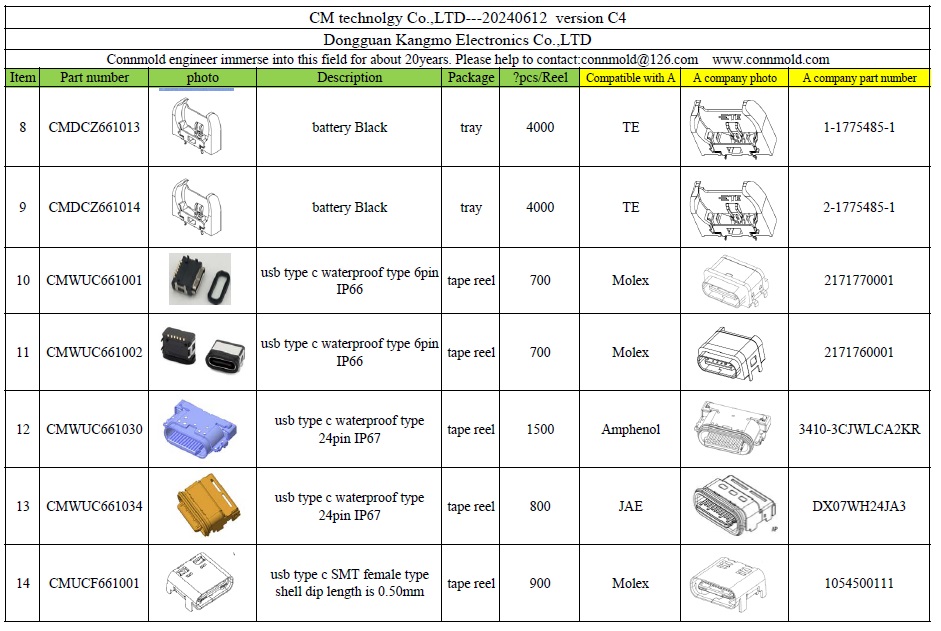

Battery connector:

1.      our part number CMDCZ661012 can replace (compatible)  TE 1775485-1

2.      our part number CMDCZ661013 can replace (compatible)  TE 1-1775485-1

3.      our part number CMDCZ661014 can replace (compatible)  TE 2-1775485-1

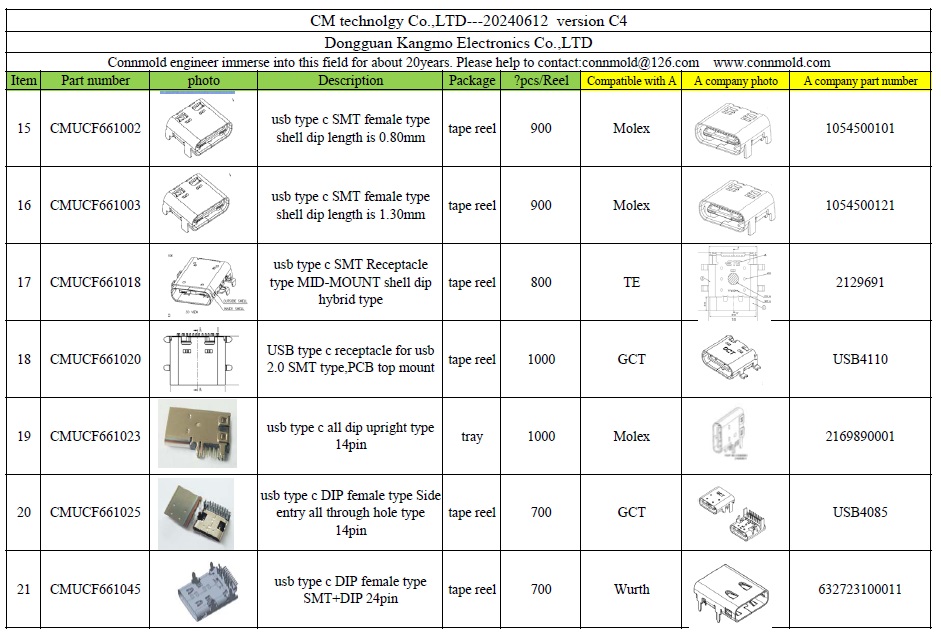

USB type c connector:

1. our part number CMWUC661001 can replace (compatible) molex 2171770001

2. our part number CMWUC661002 can replace (compatible) molex 2171760001

3. our Part CMWUC661030 can replace (compatible) amphenol 3410-3CJWLCA2KR

4. our part number CMWUC661034 can replace (compatible) JAE DX07WH24JA3

5. our part number CMUCF661001 can replace (compatible)  molex 1054500111

6. our part number CMUCF661002 can replace(compatible)  molex 1054500101

7. our part number CMUCF661003 can replace (compatible) molex 1054500121

8. our part number CMUCF661018 can replace (compatible) TE 2129691

9. our part number CMUCF661020 can replace(compatible)  GCT USB4110

10. our part number CMUCF661023 can replace (compatible) molex 2169890001

11. our part number CMUCF661045 can replace (compatible) Wurth 632723100011

12. our part number CMUCF661049 can replace (compatible) Molex 2171790001

13. our part number CMUCF661063 can replace (compatible) Wurth 632722110112

etc..

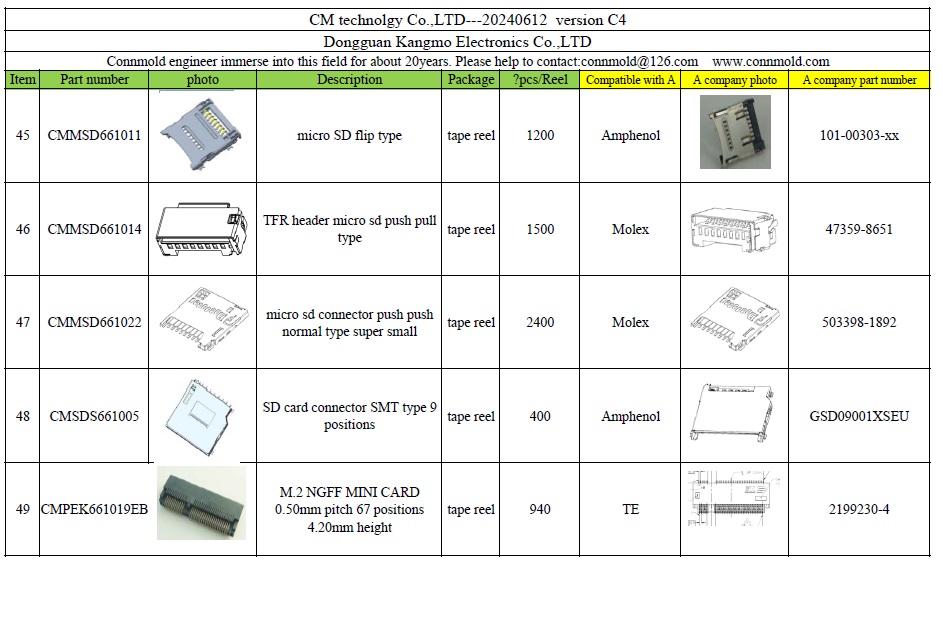

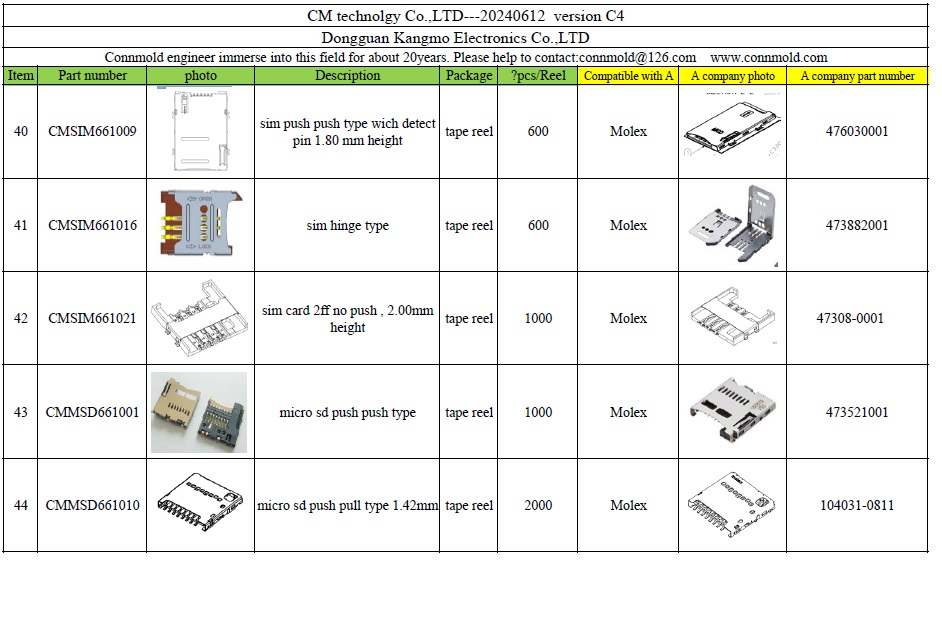

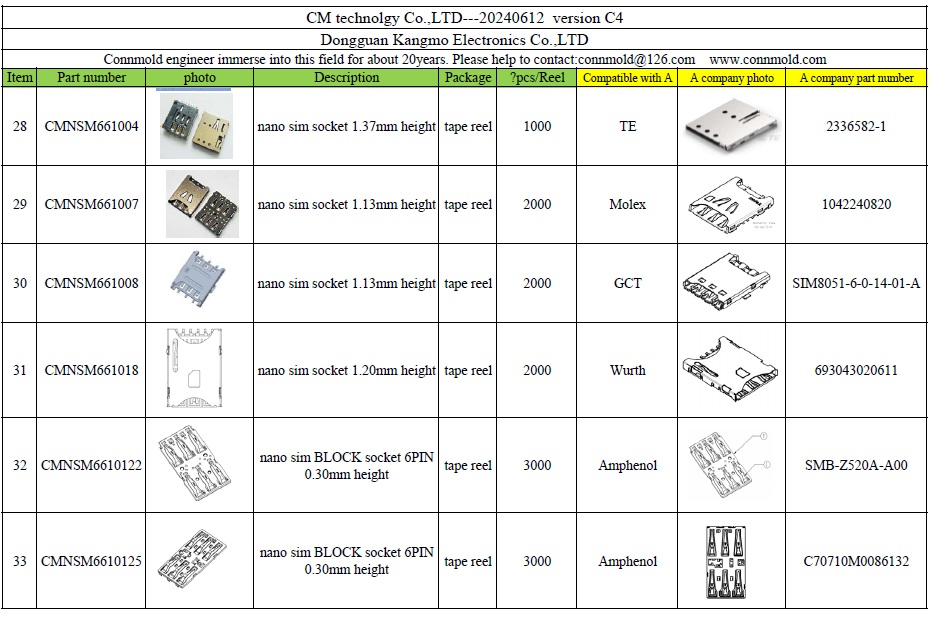

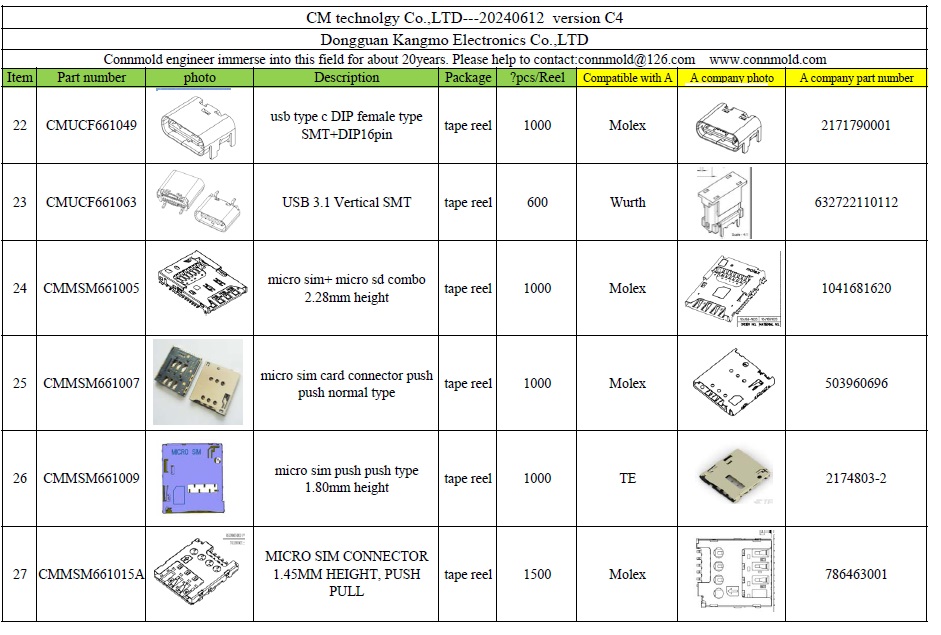

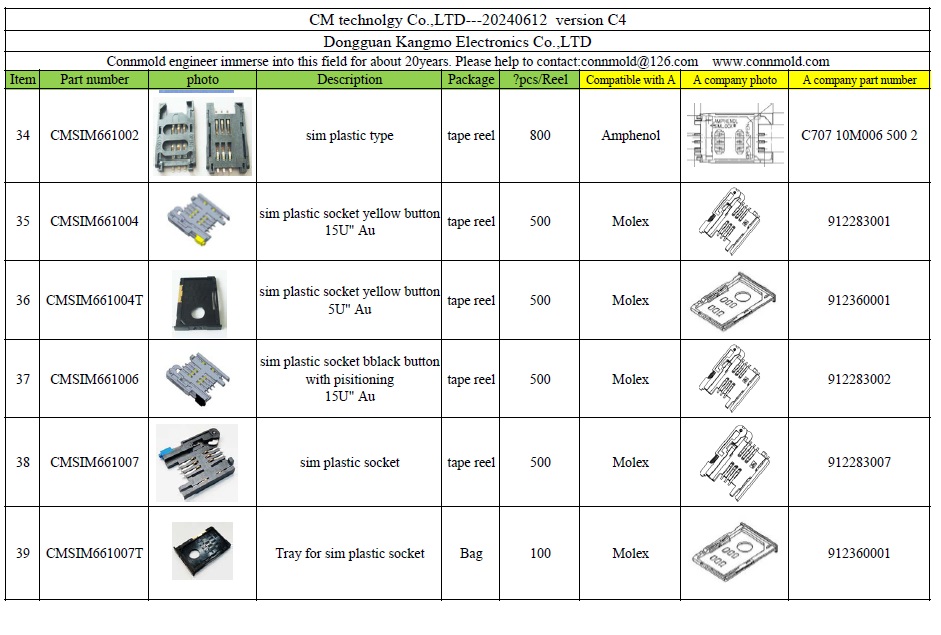

Card connector:

1.our part number CMMSM661005 can replace (compatible) molex 1041681620

2.our part number CMMSM661007 can replace (compatible) molex503960696

3.our part number CMMSM661009 can replace (compatible) TE 2174803

4.our part number CMMSM661015A can replace (compatible) Molex 786463001

5. our part number CMNSM661007 can replace(compatible) molex 1042240820

6. our part number CMNSM661004 can replace (compatible)TE 2336582-1

7. our part number CMNSM661008 can replace (compatible)GCT SIM8051-6-0-14-01-A

8. our part number CMNSM661018 can replace (compatible)Wurth 693043020611

9. our Part CMNSM661022 can replace (compatible)Amphenol SMB-Z520A-A00

10. our Part CMNSM661025 can replace (compatible)Amphenol C70710M0086132

11. our part CMSIM661002 can replace (compatible)amphenol C707 10M006 500 2

12. our part number CMSIM661004 can replace (compatible)Molex 912283001

13. our part number CMSIM661004T can replace (compatible)Molex 912360001

14. our part number CMSIM661006 can replace (compatible)Molex 912383002

15. our part number CMSIM661007 can replace(compatible) molex 912283007

16. our part number CMSIM661009 can replace(compatible) molex 476030001

17. our part number CMSIM661016 can replace(compatible) molex 473882001

18. our part number CMSIM661021 can replace(compatible) molex 47308-0001

19. our part number CMMSD661001 can replace(compatible) molex 473521001

20. our part number CMMSD661010 can replace(compatible) molex 104031-0811

21. our part number CMMSD661011 can replace(compatible)Amphenol 101-00303-xx

22 our part number CMMSD661014 can replace(compatible) molex 47359-8651

23. our part number CMMSD661022 can replace(compatible) molex 503398-1892

24. our Part CMSDS661005 can replace(compatible) Amphenol GSD09001XSEU

25. our Part CMPEK661019EB can replace(compatible) TE 2199230-4

26. our Part CMPEK661023MB can replace(compatible) TE 1-2199230-3

etc

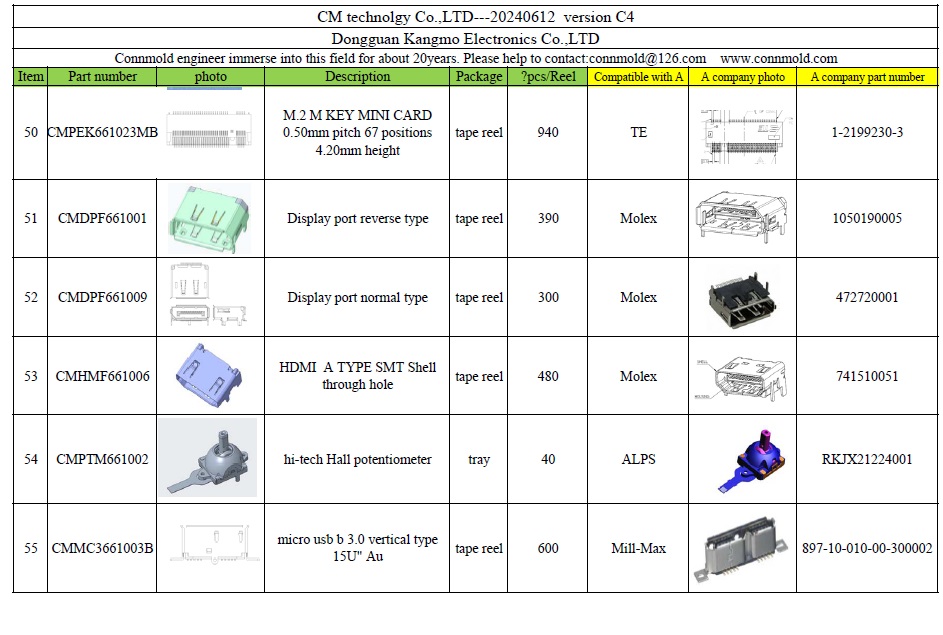

Display port and HDMI socket:

1. our part number CMDPF661001 can replace (compatible)Molex 1050190005

2. our part number CMDPF661009 can replace(compatible) molex 472720001

3. our part number CMHMF661006 can replace(compatible) molex 741510051

Of course, we have many product which can not match TE Molex Amphonel JST FCI too

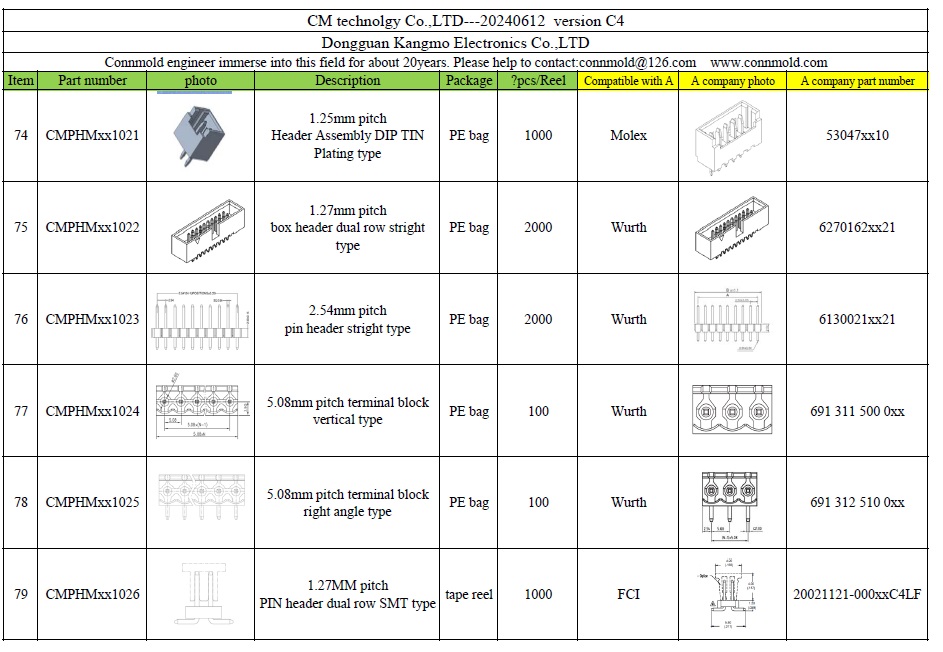

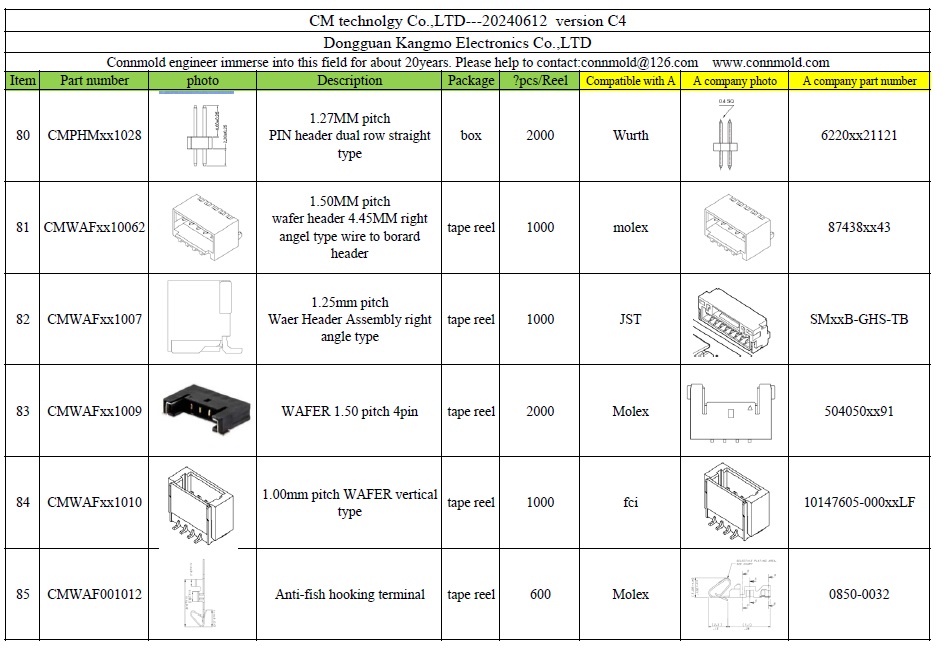

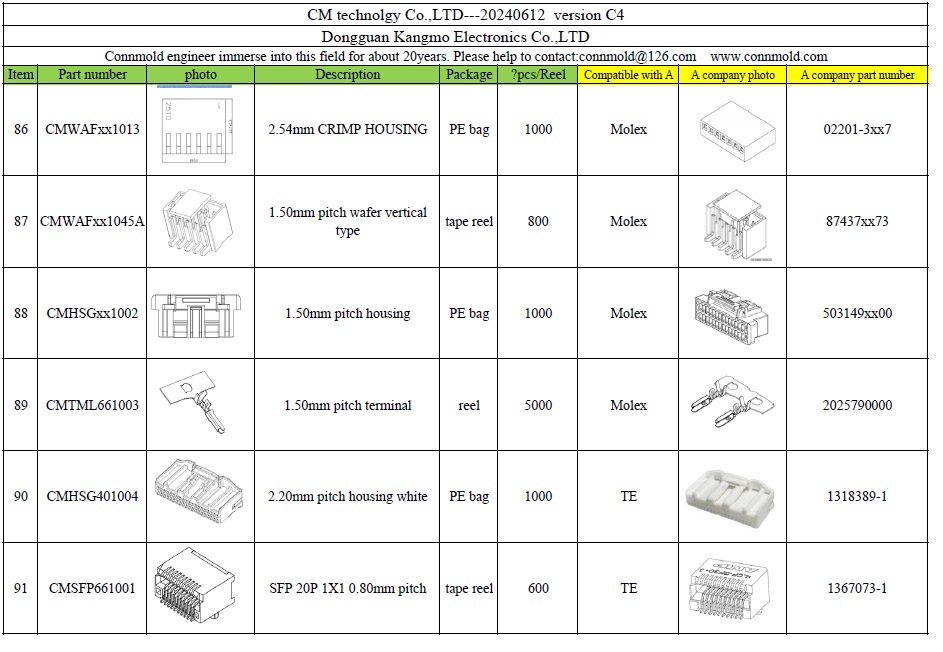

Wafer connector and pin header and female header:

1. our part number CMPHMxx1006 can replace (compatible) TE 640456-6

2. our part number CMPHMxx1021 can replace (compatible) Molex 53047xx10

3. our part number CMPHMxx1022 can replace (compatible) Wurth 6270162xx21

4. our part number CMPHMxx1023 can replace (compatible) Wurth 6130021xx21

5. our part number CMPHMxx1024 can replace (compatible) Wurth 691 311 500 0xx

6. our part number CMPHMxx1025 can replace (compatible) Wurth 691 312 510 0xx

7. our Part CMPHMxx1026 can replace (compatible) FCI 20021121-000xxC4LF

8. our Part CMPHMxx1028 can replace (compatible) Wurth 6220xx21121

9. our Part CMWAFxx10062 can replace (compatible) Molex 87438xx43

10. our Part CMWAFxx1007 can replace (compatible) JST SMxxB-GHS-TB

11 our Part CMWAFxx1009can replace (compatible) Molex 504050xx91

12 our Part CMWAF001012 replace (compatible) Molex 0850-0032

13 our Part CMWAFxx1013 replace (compatible) Molex 02201-3xx7

14 our Part CMWAFxx1045A replace (compatible) Molex 87437xx73

15 our Part CMHSGxx1002 replace (compatible) Molex 503149xx00

16 our Part CMTML661003 replace (compatible) Molex 2025790000

17 our Part CMHSG401004 replace (compatible) TE 1318389-1

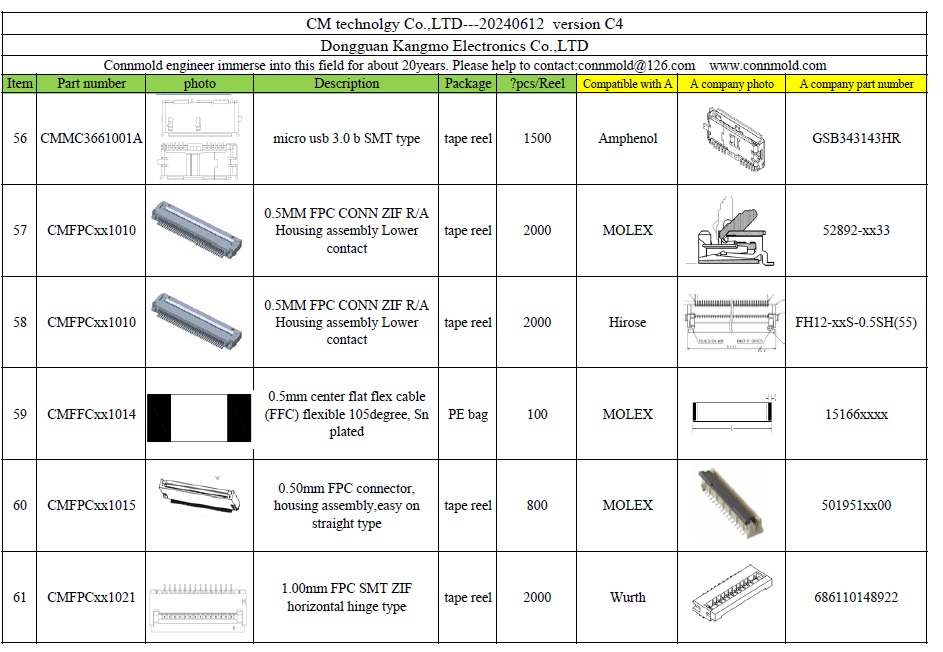

FPC and Board to board socket:

1. our Part CMMC3661003B can replace (compatible) Mill-max 897-10-010-00-300002

2. our Part CMMC3661001A can replace (compatible) Amphenol GSB343143HR

3. our Part CMFPCxx1010 can replace (compatible) molex 52892-xx33

4. our Part CMFPCxx1010 can replace (compatible) Hirose FH12-xxS-0.5SH(55)

5. our Part CMFPCxx1014 can replace (compatible) Molex 15166xxxx

6. our Part CMFPCxx1015 can replace (compatible) Molex 501951xx00

7. our Part CMFPCxx1021 can replace (compatible) Wurth 686110148922

8. our Part CMFPCxx1036 can replace (compatible) Molex 502598xx93

9. our Part CMFPCxx1039 can replace (compatible) Hirose TF31-xxS-1SH(800)

10. our Part CMBTBXX1033 can replace (compatible) Hirose FX23L-xxP-0.5SV8

11. our Part CMBTBXX1034 can replace (compatible) Hirose FX23L-xxS-0.5SV



Micro usb connector

1.Our Part CMMCF661006 can replace (compatible) GCT USB3076-30-A2

2. our Part CMMCF661009 can replace (compatible) TE 1932788-1

3. our Part CMMCF661017 can replace (compatible) Hirose1ZX62-AB-5PA

4. our Part CMMCF661012 can replace (compatible) molex 105133 0021

5. our Part CMMCF661020 can replace (compatible) FCI 10118192

6. our Part CMMCF661036B can replace (compatible) Molex 475890001

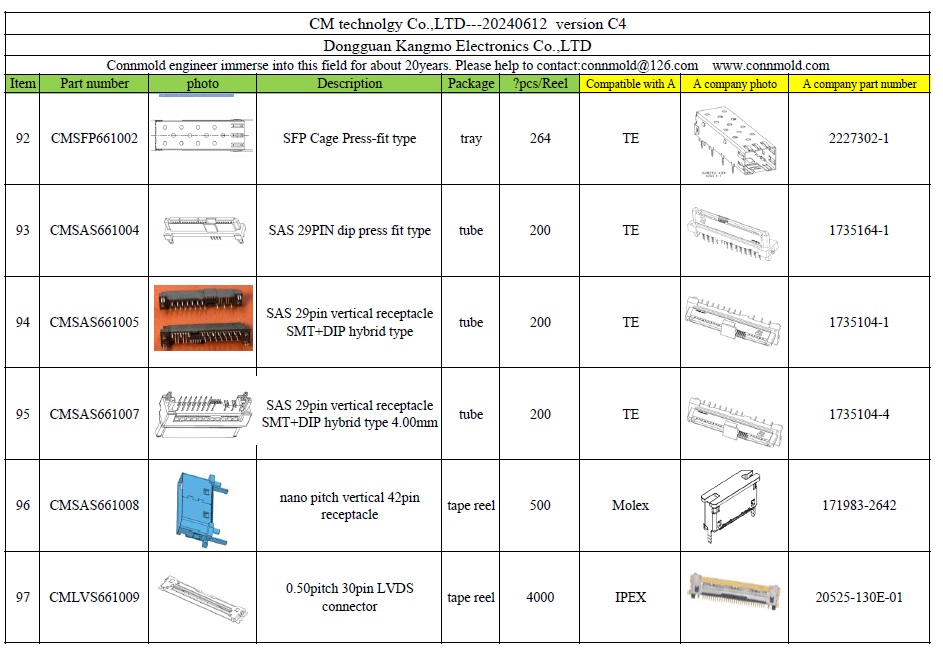

SFP connector and SAS:

1. our part number CMSFP661001 can replace (compatible) TE 1367073-1

2. our part number CMSFP661002 can replace (compatible) TE 2227302-1
