Product Center - card connector - 3FF sim conn - CMMSM661005 micro sd + micro sim combo 2 in 1 connector 2.28 mm compatible with 104168 1620
Product Details：

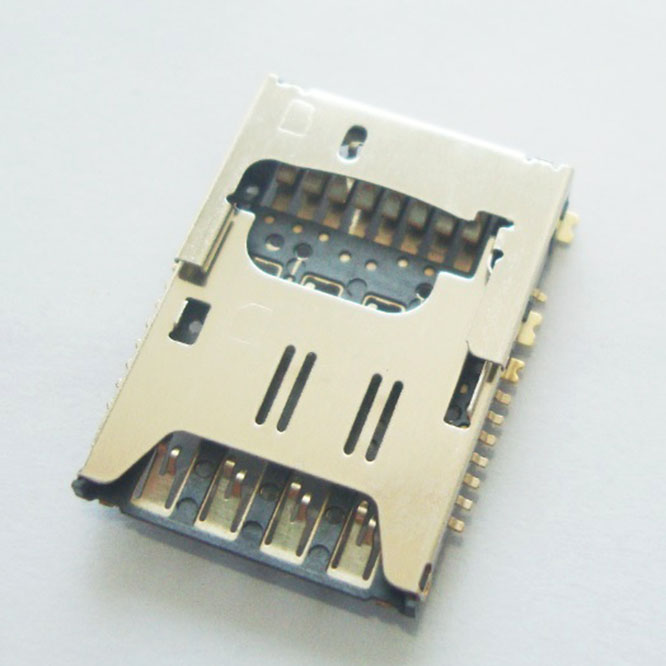

1. Real product of top:

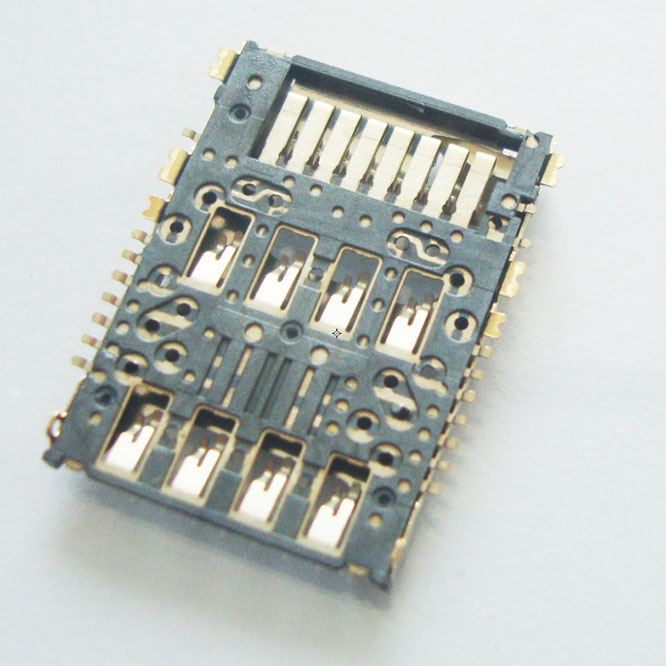

2.Bottom view:


3. Parameters
No. Items Description
1 Overview micro sim + micro sd push pull combo 2 in 1 connector 2.28 mm
2 Circuits 16
3 Color Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 UL class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.80 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.12 mm max.
17 push function no
18 card detect function yes
19 Current Rating 1.25 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1000 pieces
26 how many per carton 10000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible with 104168-1620

4.Drawing:
