Product Center - card connector - 4FF sim conn - CMNSM661001 Hinge style flip type nano 4FF sim socket
Product Details：

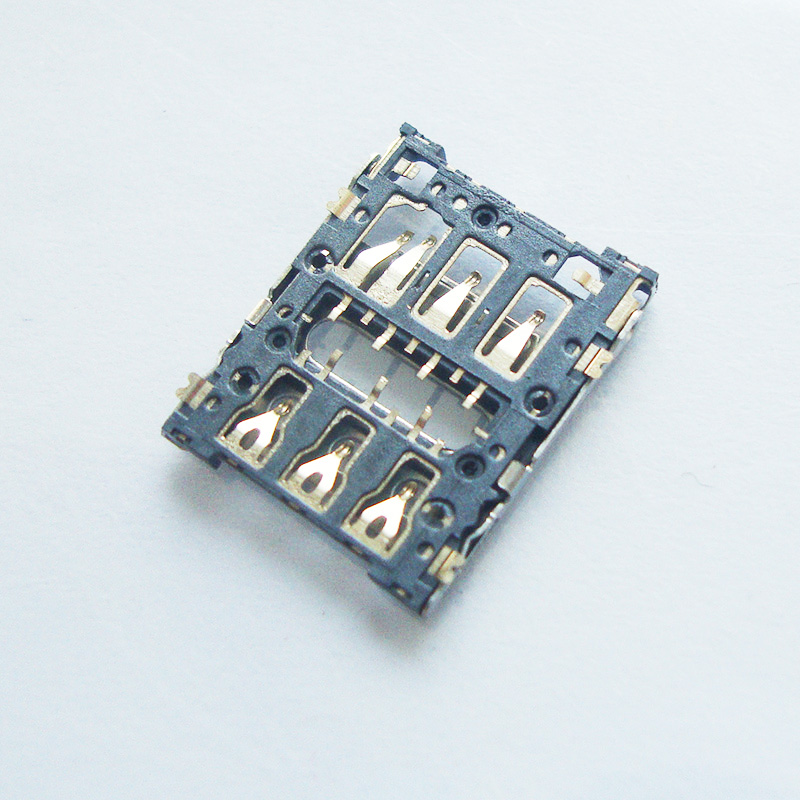

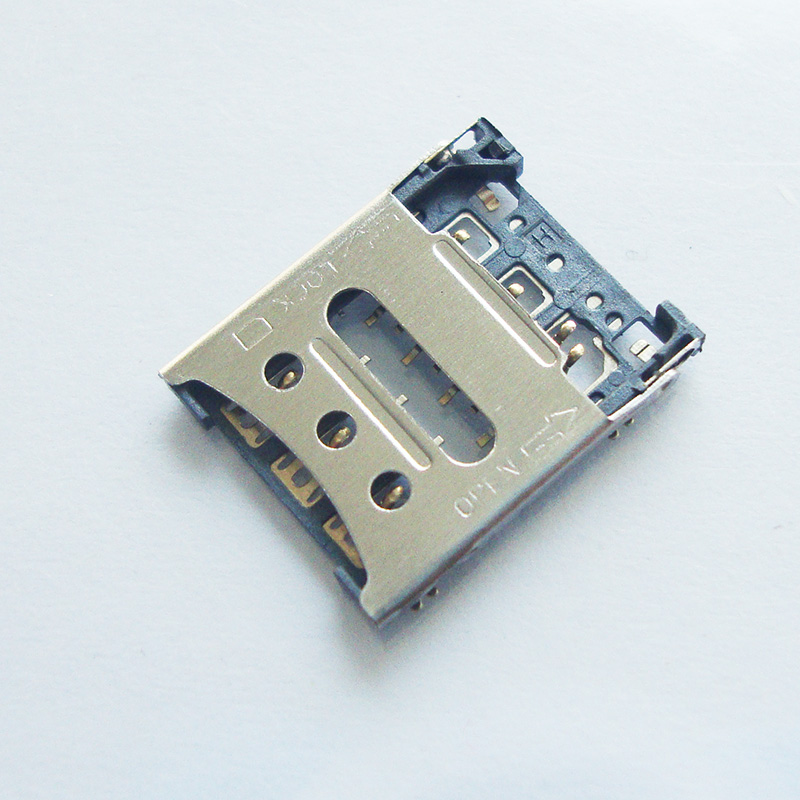

1.photo:





2.Parameter
No. Items Description
1 Overview 4FF nano sim flip hinge style type with detect switch
2 Circuits 7
3 Color resin Black
4 Durability 3000
5 Gender Socket
6 Orientation Right angle
7 Material-contact copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 Flammability class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch Mating Interface 0.90 mm
14 Surface Mount Compatible yes
15 Temperature range -40° to +85°C
16 Coplanarity 0.10 mm max.
17 push function yes
18 card detect switch normal open
19 Current Rating 0.5 A
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package Embossed Tape and Reel
24 Reel dimension 13 inch
25 how many per reel 1800 pieces
26 how many per carton 18000 pieces
27 Easy for pick and place machine yes
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 in stock yes

3.drawing:
