Product Center - USB - USB TYPE C - CMUCF661025 Universal Serial Bus (USB) Shielded I/O Receptacle, Type C 14 pin, side entry, through hole type, Gold (Au) Plating replace to USB 4085
Product Details:

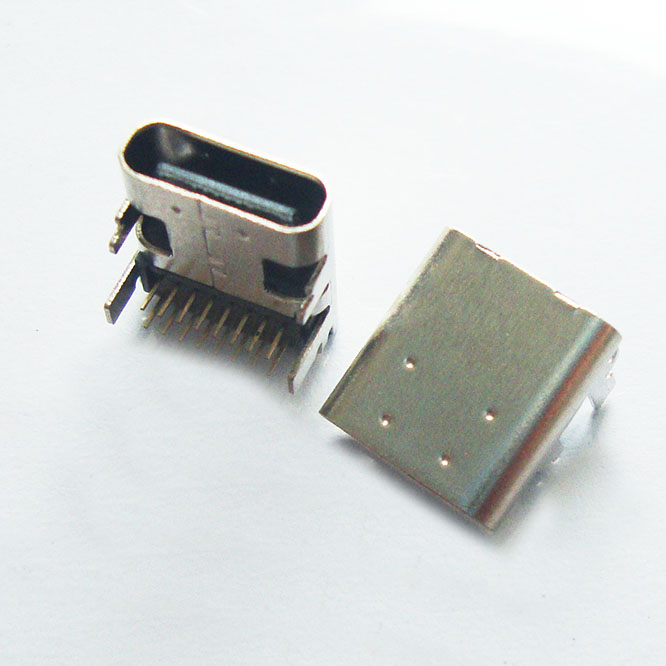

1. bottom view:


2. Parameter

No. Items Description
1 Overview Universal Serial Bus (USB) Shielded I/O Receptacle, Type C 14 pin, side entry,
through hole type,  Gold (Au) Plating replace to USB 4085
2 Circuits 14
3 Color resin Black
4 Durability 10000
5 Gender Female
6 Orientation Right angle
7 Material-Metal copper alloy
8 Material-Housing Liquid Crystal polymer LCP
9 flaming class 94 V-0
10 Mount type top mount
11 Panel Mount yes
12 Shield Type yes
13 Pitch termination 0.85mm
14 Pitch mating side 0.50 mm
15 PCB thickness 1.60 mm
16 Temperature range -40° to +105°C
17 rows 2 row
18 with locating peg no
19 Current Rating as usb type c specification
20 Contact resistance 30 mΩ max.
21 Insulation Resistance 100 MΩ min.
22 Dielectric withstanding voltage 100 V AC
23 Package tape reel
24 lead free process temperature 255
25 how many per  reel 700 pieces
26 how many per carton 7000 pieces
27 solder tail plating Tin
28 CAD yes
29 3-D Model yes
30 RoHS yes
31 compatible USB4085


3.drawing:
